Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCK-070FIXED IND 10UH 2.6A 40 MOHM SMD |
1,470 |
|
Datasheet |
- | Nonstandard | Bag | Active | - | - | 10 µH | ±20% | 2.6 A | - | Unshielded | 40mOhm | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.224" (5.70mm) |
|

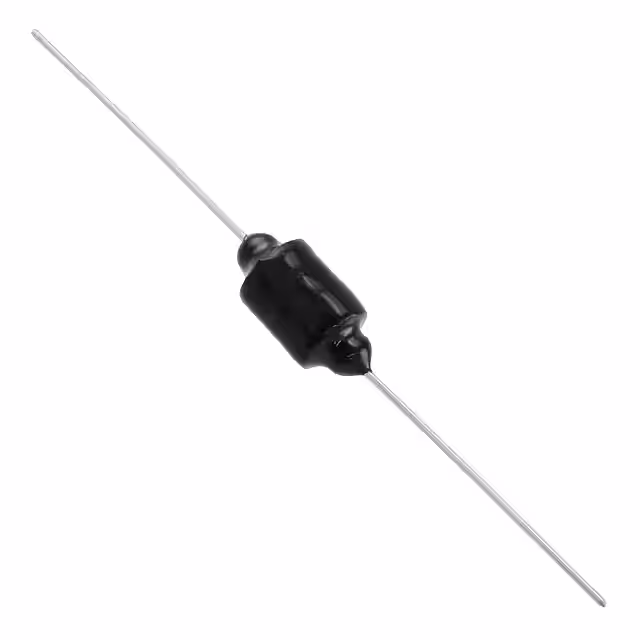

70F502AF-RCFIXED IND 50MH 37MA 175 OHM TH |
4,349 |
|
Datasheet |
70F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 50 mH | ±5% | 37 mA | - | Unshielded | 175Ohm Max | 57 @ 79kHz | 196kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.400" Dia x 0.630" L (10.16mm x 16.00mm) | - |
|
78439370100WE-XHMA SMT POWER INDUCTOR 1510; |
2,689 |
|
Datasheet |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 11.5 A | 31.2A | Shielded | 6.4mOhm | - | 9MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.646" L x 0.606" W (16.40mm x 15.40mm) | 0.394" (10.00mm) |
|
|
78439370220WE-XHMA SMT POWER INDUCTOR 1510; |
3,856 |
|
Datasheet |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 22 µH | ±20% | 8 A | 22.35A | Shielded | 12.5mOhm | - | 7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.646" L x 0.606" W (16.40mm x 15.40mm) | 0.394" (10.00mm) |
|
PA4349.333ANLTFIXED IND 33UH 19A 15.4 MOHM SMD |
2,958 |
|
Datasheet |
PA4349.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 16 A | 10.5A | Shielded | 15.4mOhm Max | - | 4MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
1537JFIXED IND 50UH 3.2A 64 MOHM TH |
2,377 |
|
Datasheet |
1537 | Axial | Bulk | Active | Molded | Ferrite | 50 µH | ±5% | 3.2 A | - | Unshielded | 64mOhm | - | - | - | - | 1 kHz | - | Through Hole | - | 0.560" Dia x 1.250" L (14.22mm x 31.75mm) | - |
|
|
1537MFIXED IND 250UH 5A 114 MOHM TH |
3,248 |
|
Datasheet |
1537 | Axial | Bulk | Active | Molded | Ferrite | 250 µH | ±5% | 5 A | - | Unshielded | 114mOhm | - | - | - | - | 1 kHz | - | Through Hole | - | 0.690" Dia x 1.250" L (17.53mm x 31.75mm) | - |
|
7443762504022FIXED IND 2.2UH 30A 1.96 MOHM TH |
4,991 |
|
Datasheet |
WE-HCFT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 2.2 µH | ±20% | 30 A | - | Shielded | 1.96mOhm Max | - | 23MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.992" L x 0.866" W (25.20mm x 22.00mm) | 0.161" (4.10mm) |
|
B82559B5472A027FIXED IND 4.7UH 37A 1.39MOHM SMD |
1,218 |
|
Datasheet |
ERU27 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 37 A | 53.5A | Shielded | 1.39mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.094" L x 1.016" W (27.80mm x 25.80mm) | 0.589" (14.95mm) |
|
7443630860FIXED IND 8.6UH 17A 7.19MOHM SMD |
164 |
|
Datasheet |
WE-HCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 8.6 µH | ±15% | 17 A | 25A | Shielded | 7.19mOhm | - | 14MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.846" L x 0.827" W (21.50mm x 21.00mm) | 0.551" (14.00mm) |
|

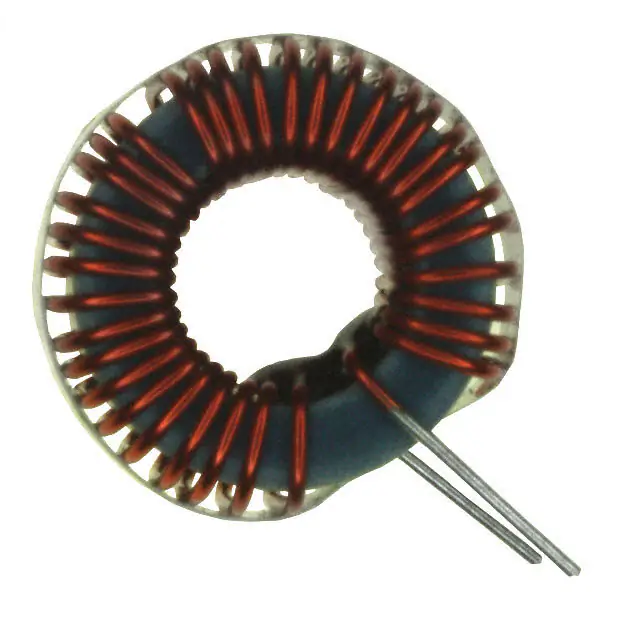

CTX100-2-52-RFIXED IND 100UH 4.4A 53.4MOHM TH |
3,776 |
|
Datasheet |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 100 µH | ±20% | 4.4 A | 4.3A | Unshielded | 53.4mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.945" Dia x 0.654" W (24.00mm x 16.60mm) | - |
|
IHD1EB4R7LFIXED IND 4.7UH 3.4A 22 MOHM TH |
3,088 |
|
Datasheet |
IHD | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±15% | 3.4 A | 3.3A | Unshielded | 22mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.86mm x 17.78mm) | - |
|
IH05BQ101KFIXED IND 100UH 7.5A 50 MOHM TH |
4,243 |
|
Datasheet |
IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 7.5 A | 7A | Unshielded | 50mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 1.375" L (21.84mm x 34.93mm) | - |
|
7444011715220FIXED IND 22UH 10A 7 MOHM TH |
2,413 |
|
Datasheet |
WE-HIDA | Nonstandard | Tray | Active | - | - | 22 µH | ±20% | 10 A | 12A | Unshielded | 7mOhm | - | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.689" L x 0.591" W (17.50mm x 15.00mm) | 0.768" (19.50mm) |
|
744119FIXED IND 890UH 2A 400 MOHM TH |
4,034 |
|
Datasheet |
WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 890 µH | ±20% | 2 A | 900mA | Unshielded | 400mOhm Max | - | 850kHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.181" Dia x 0.551" W (30.00mm x 14.00mm) | - |
|
TCK-108FIXED IND 3.3UH 3.3A 50MOHM SMD |
3,080 |
|
Datasheet |
- | Nonstandard | Strip | Active | - | - | 3.3 µH | ±20% | 3.3 A | - | Unshielded | 50mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" (2.10mm) |
|
TCK-121FIXED IND 15UH 700MA 570MOHM SMD |
4,797 |
|
Datasheet |
- | 1210 (3225 Metric) | Bag | Active | - | - | 15 µH | ±20% | 700 mA | - | Unshielded | 570mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
74436410220FIXED IND 2.2UH 36A 1.441MOHM SM |
2,209 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 2.2 µH | ±15% | 36 A | 88.5A | Shielded | 1.441mOhm Max | - | 32.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2815 | 1.102" L x 0.764" W (28.00mm x 19.40mm) | 0.606" (15.40mm) |
|
|
74436410150FIXED IND 1.5UH 36A 1.441MOHM SM |
1,255 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 1.5 µH | ±15% | 36 A | 125A | Shielded | 1.441mOhm Max | - | 43.24MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2815 | 1.102" L x 0.764" W (28.00mm x 19.40mm) | 0.606" (15.40mm) |
|
|
74436410330FIXED IND 3.3UH 36A 1.441MOHM SM |
4,038 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 3.3 µH | ±15% | 36 A | 60.5A | Shielded | 1.441mOhm Max | - | 26.44MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2815 | 1.102" L x 0.764" W (28.00mm x 19.40mm) | 0.606" (15.40mm) |
