Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74436413300FIXED IND 33UH 36A 1.441MOHM SMD |
3,082 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 33 µH | ±15% | 36 A | 6A | Shielded | 1.441mOhm Max | - | 6.29MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2815 | 1.102" L x 0.764" W (28.00mm x 19.40mm) | 0.606" (15.40mm) |
|
B82559A5332A024FIXED IND 3.3UH 40.3A 1 MOHM SMD |
2,500 |
|
Datasheet |
ERU24 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 40.3 A | 58.7A | Shielded | 1mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.972" L x 0.898" W (24.70mm x 22.80mm) | 0.618" (15.70mm) |
|
|
74436411000FIXED IND 10UH 36A 1.441MOHM SMD |
1,748 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 10 µH | ±15% | 36 A | 21.5A | Shielded | 1.441mOhm Max | - | 13.55MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2815 | 1.102" L x 0.764" W (28.00mm x 19.40mm) | 0.606" (15.40mm) |
|
DFSG-30-0002FIXED IND 6A 60 MOHM TH |
4,528 |
|
Datasheet |
DFSG | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | - | - | 6 A | - | - | 60mOhm | - | - | - | -25°C ~ 100°C | - | - | Through Hole | - | 1.181" L x 1.181" W (30.00mm x 30.00mm) | - |
|
744139FIXED IND 1.124MH 3.4A 280 MOHM |
3,110 |
|
Datasheet |
WE-SI | Radial, Vertical (Open) | Tray | Active | Toroidal | Ferrite | 1.124 mH | ±20% | 3.4 A | 1A | Unshielded | 280mOhm Max | - | 650kHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.732" Dia x 0.728" W (44.00mm x 18.50mm) | - |
|
7443640330FIXED IND 3.3UH 30A 2.4 MOHM SMD |
1,295 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 3.3 µH | ±15% | 30 A | 100A | Shielded | 2.4mOhm | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2818 | 1.122" L x 0.768" W (28.50mm x 19.50mm) | 0.728" (18.50mm) |
|

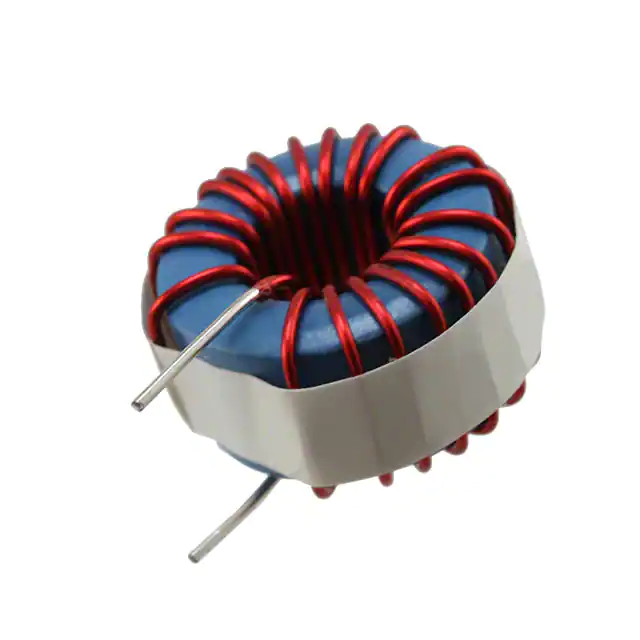

CTX50-5-52-RFIXED IND 50UH 7.6A 24.8 MOHM TH |
3,693 |
|
Datasheet |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 50 µH | ±20% | 7.6 A | 9.4A | Unshielded | 24.8mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.272" Dia x 0.744" W (32.30mm x 18.90mm) | - |
|

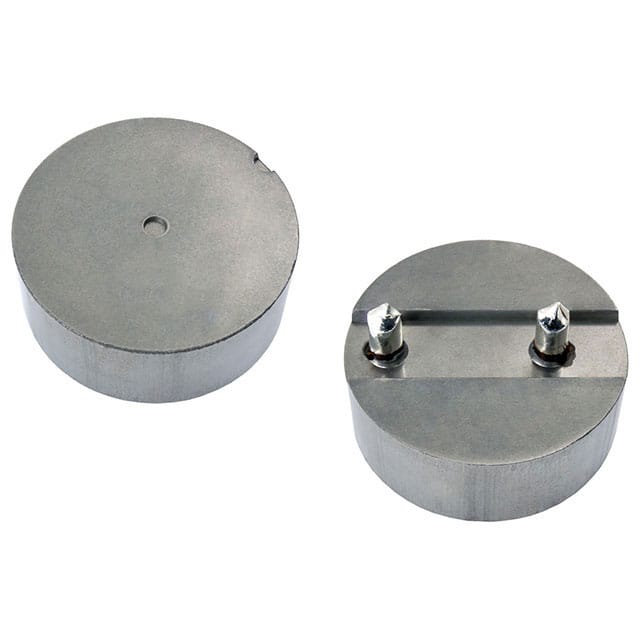

IHTH1125KZEB3R3M5AIHTH-1125KZ-5A 3.3 20% EB E2 |
1,791 |
|
Datasheet |
IHTH-1125KZ-5A | Radial | Bulk | Active | - | Metal Composite | 3.3 µH | ±20% | 57 A | 62A | Shielded | 1.5mOhm Max | - | 15.8MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.125" Dia (28.58mm) | 0.433" (11.00mm) |
|

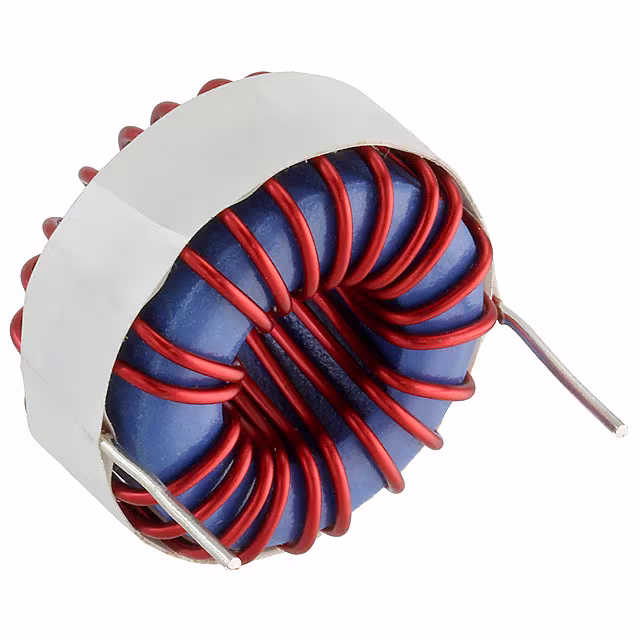

CTX50-5-52LP-RFIXED IND 50UH 7.6A 24.8 MOHM TH |
4,209 |
|
Datasheet |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 50 µH | ±20% | 7.6 A | 9.4A | Unshielded | 24.8mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.272" Dia (32.30mm) | 0.744" (18.90mm) |
|
1538M05FIXED IND 100UH 4.9A 61 MOHM TH |
4,878 |
|
Datasheet |
1538 | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 100 µH | ±10% | 4.9 A | - | Unshielded | 61mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.810" Dia x 1.120" L (20.57mm x 28.45mm) | - |
|
IHLP8787MZER1R0M51FIXED IND 1UH 69A 890U OHM SMD |
4,416 |
|
Datasheet |
IHLP-8787MZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 69 A | 71A | Shielded | 890µOhm Max | - | 25.7MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
|
IHLP8787MZER750M51FIXED IND 75UH 12A 32.35 MOHM SM |
1,244 |
|
Datasheet |
IHLP-8787MZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 75 µH | ±20% | 12 A | 12A | Shielded | 32.35mOhm Max | - | 2.01MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
IHTH1125KZEB6R8M5AFIXED IND 6.8UH 44.5A 1.97 MOHM |
2,121 |
|
Datasheet |
IHTH-1125KZ-5A | Radial, Vertical Cylinder | Bulk | Active | - | Metal Composite | 6.8 µH | ±20% | 44.5 A | 44A | Shielded | 1.97mOhm Max | - | 9.35MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.125" Dia (28.58mm) | 0.433" (11.00mm) |
|
|
IHTH1125KZEB220M5AFIXED IND 22UH 21A 6.83 MOHM TH |
3,032 |
|
Datasheet |
IHTH-1125KZ-5A | Radial, Vertical Cylinder | Bulk | Active | - | Metal Composite | 22 µH | ±20% | 21 A | 23A | Shielded | 6.83mOhm Max | - | 5.61MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.125" Dia (28.58mm) | 0.433" (11.00mm) |
|
1130-331K-RCFIXED IND 330UH 4.5A 122 MOHM TH |
3,989 |
|
Datasheet |
1130 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 4.5 A | - | Unshielded | 122mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
1130-272K-RCFIXED IND 2.7MH 1.3A 1.14 OHM TH |
4,973 |
|
Datasheet |
1130 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.7 mH | ±10% | 1.3 A | - | Unshielded | 1.14Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
1130-681K-RCFIXED IND 680UH 2.8A 256 MOHM TH |
1,746 |
|
Datasheet |
1130 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 2.8 A | - | Unshielded | 256mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
1130-471K-RCFIXED IND 470UH 4A 187 MOHM TH |
3,534 |
|
Datasheet |
1130 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 4 A | - | Unshielded | 187mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|

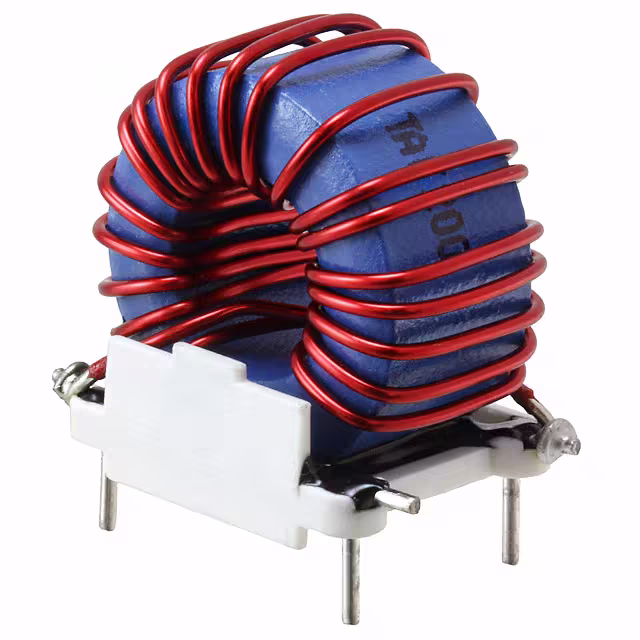

CTX50-5-52M-RFIXED IND 50UH 7.6A 24.8 MOHM TH |
4,823 |
|
Datasheet |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 50 µH | ±20% | 7.6 A | 9.4A | Unshielded | 24.8mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.394" L x 0.854" W (35.40mm x 21.70mm) | 1.327" (33.70mm) |
|
IHDF1300AEEH2R2K1AFIXED IND 2.2UH 59A 1.11MOHM TH |
3,990 |
|
Datasheet |
IHDF-1300AE-1A | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 59 A | 149A | Unshielded | 1.11mOhm Max | - | 23MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.299" L x 1.173" W (33.00mm x 29.80mm) | 0.606" (15.40mm) |
