Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR4828A-330MFIXED IND 33UH 1.4A 260 MOHM SMD |
232 |
|
Datasheet |
SRR4828A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.4 A | 600mA | Shielded | 260mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
SRR4828A-560MFIXED IND 56UH 1.05A 320MOHM SMD |
205 |
|
Datasheet |
SRR4828A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 1.05 A | 400mA | Shielded | 320mOhm Max | - | 12MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
SRR4528A-331MFIXED IND 330UH 320MA 2.16OHM SM |
120 |
|
Datasheet |
SRR4528A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±20% | 320 mA | 180mA | Shielded | 2.16Ohm Max | - | 4.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.110" (2.80mm) |
|
|
SRR4828A-6R8YFIXED IND 6.8UH 2.6A 74 MOHM SMD |
116 |
|
Datasheet |
SRR4828A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 2.6 A | 1.3A | Shielded | 74mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
SDR7045-101KFIXED IND 100UH 750MA 430MOHM SM |
1,209 |
|
Datasheet |
SDR7045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 750 mA | 720mA | Unshielded | 430mOhm Max | 17 @ 796kHz | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|

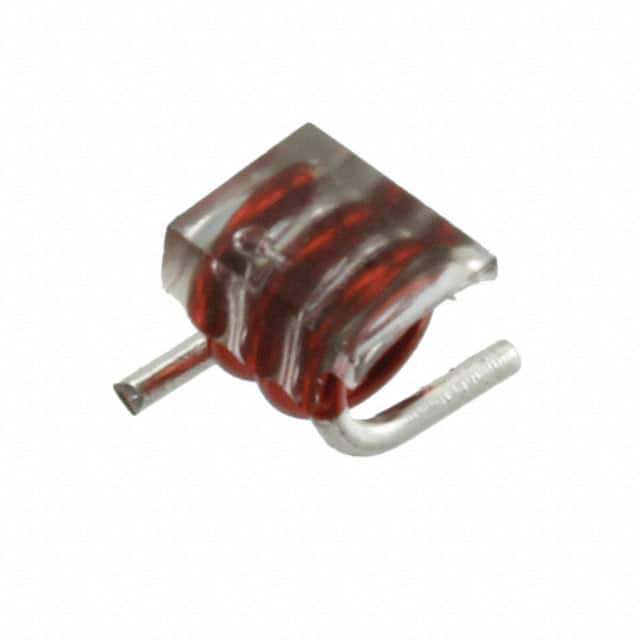

744913080FIXED IND 8NH 4A 2.6 MOHM SMD |
3,265 |
|
Datasheet |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 8 nH | ±5% | 4 A | - | Unshielded | 2.6mOhm Max | 140 @ 150MHz | 5GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.145" L x 0.120" W (3.68mm x 3.05mm) | 0.125" (3.18mm) |
|

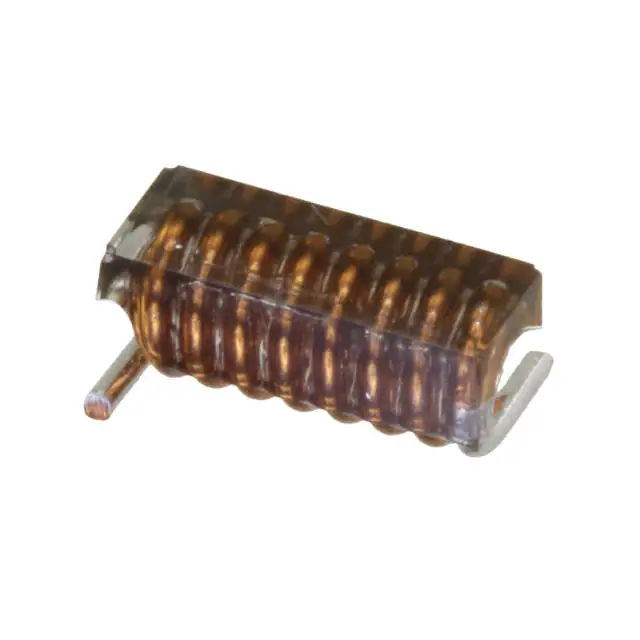

744914128FIXED IND 28NH 4A 6 MOHM SMD |
3,579 |
|
Datasheet |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 28 nH | ±5% | 4 A | - | Unshielded | 6mOhm Max | 105 @ 150MHz | 1.8GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.270" L x 0.120" W (6.86mm x 3.05mm) | 0.125" (3.18mm) |
|
SWPA6045S220MTFIXED IND 22UH 1.8A 116MOHM SMD |
3,100 |
|
Datasheet |
SWPA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.8 A | 2.2A | Shielded | 116mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

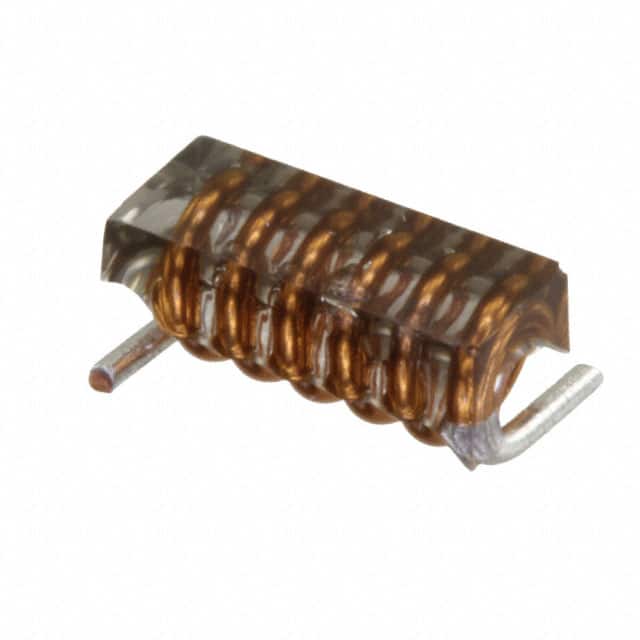

744914117FIXED IND 17.5NH 4A 4.5 MOHM SMD |
2,515 |
|
Datasheet |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 17.5 nH | ±5% | 4 A | - | Unshielded | 4.5mOhm Max | 100 @ 150MHz | 2.2GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.270" L x 0.120" W (6.86mm x 3.05mm) | 0.125" (3.18mm) |
|
|
SRR4828A-120MFIXED IND 12UH 2A 125 MOHM SMD |
3,339 |
|
Datasheet |
SRR4828A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 2 A | 950mA | Shielded | 125mOhm Max | - | 27MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
BPSC00101140100M00FIXED IND 10UH 40 MOHM SMD |
1,987 |
|
Datasheet |
BPSC | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | - | 4A | Shielded | 40mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
|
BPSC00101140101M00FIXED IND 100UH 304 MOHM SMD |
979 |
|
Datasheet |
BPSC | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | - | 1A | Shielded | 304mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
PM75-330K-RCFIXED IND 33UH 1.2A 140 MOHM SMD |
757 |
|
Datasheet |
PM75 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 1.2 A | 1.9A | Unshielded | 140mOhm Max | 15 @ 2.52MHz | 10MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" Dia (7.80mm) | 0.209" (5.30mm) |
|
26680CFIXED IND 68UH 1.11A 220MOHM SMD |
500 |
|
Datasheet |
2600 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | - | 1.11 A | - | Unshielded | 220mOhm Max | - | 8.37MHz | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
SWPA6045S6R8MTFIXED IND 6.8UH 3A 40 MOHM SMD |
163 |
|
Datasheet |
SWPA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 3 A | 4.3A | Shielded | 40mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
CDRH3D18NP-2R2NCFIXED IND 2.2UH 2A 63 MOHM SMD |
1,970 |
|
Datasheet |
CDRH3D18 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±30% | 2 A | 1.8A | Shielded | 63mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.079" (2.00mm) |
|

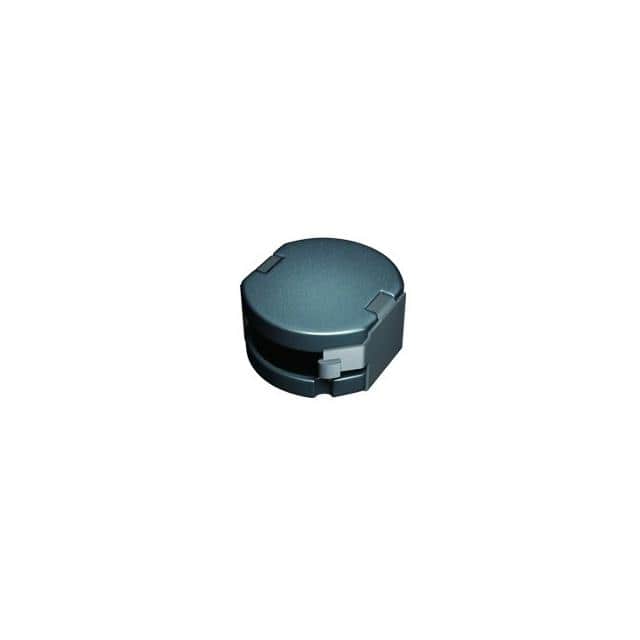

LSXBH10050HL1R3NFIXED IND 1.3UH 9A 8.84 MOHM SMD |
1,189 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.3 µH | ±30% | 9 A | 11A | Shielded | 6.8mOhm | - | 53MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
|
CDRH3D18NP-470NCFIXED IND 47UH 350MA 964MOHM SMD |
949 |
|
Datasheet |
CDRH3D18 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±30% | 350 mA | 400mA | Shielded | 964mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.079" (2.00mm) |
|
AIUR-02H-331KFIXED IND 330UH 390MA 620MOHM TH |
779 |
|
Datasheet |
AIUR-02H | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 390 mA | 780mA | Unshielded | 620mOhm Max | 20 @ 790kHz | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.472" (12.00mm) |
|
22R476CFIXED IND 47MH 27MA 169.4 OHM TH |
600 |
|
Datasheet |
2200R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 47 mH | ±10% | 27 mA | - | Unshielded | 169.4Ohm Max | 90 @ 50kHz | 250kHz | - | -25°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.413" (10.50mm) |
