Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRU5028-150YFIXED IND 15UH 1.1A 108 MOHM SMD |
1,077 |
|
Datasheet |
SRU5028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 1.1 A | 1A | Shielded | 108mOhm | 18 @ 2.52MHz | 23MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|

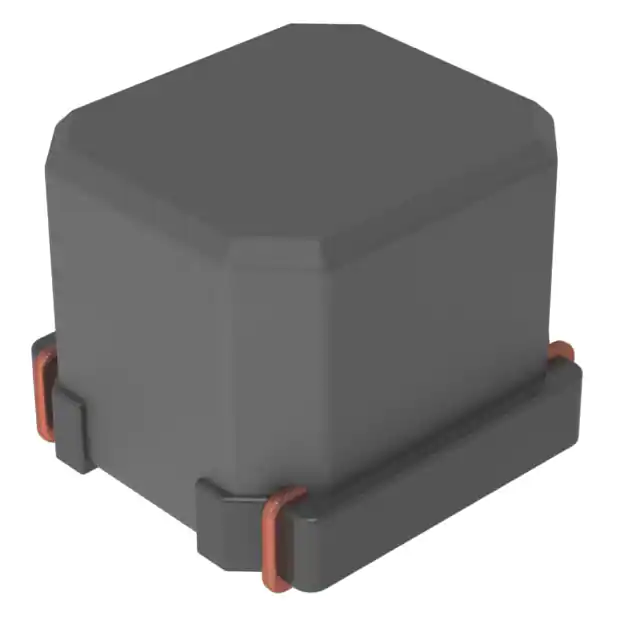

LMLP1011M4R7DTASFIXED IND 4.7UH 8.5A 20MOHM SMD |
909 |
|
Datasheet |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 4.7 µH | ±20% | 8.5 A | 15A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|
PA5402.153NLTFIXED IND 15UH 1.5A 374MOHM SMD |
734 |
|
Datasheet |
PA5402 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 1.5 A | 1.9A | Shielded | 374mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|

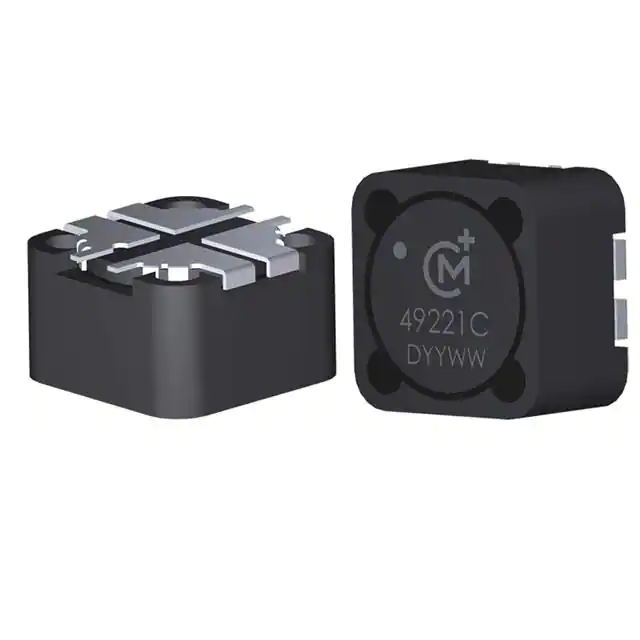

49101CFIXED IND 100UH 1.41A 343MOHM SM |
365 |
|
Datasheet |
4900 | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | - | 1.41 A | - | Shielded | 343mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
49470CFIXED IND 47UH 2.1A 191MOHM SMD |
355 |
|
Datasheet |
4900 | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | - | 2.1 A | - | Shielded | 191mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
EXLA1V0402-2R2-RIND MOLDED SHLD 2.2UH 6.0A |
2,526 |
|
Datasheet |
EXLA1V04 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 8 A | 4.8A | Shielded | 23.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.173" W (4.40mm x 4.40mm) | 0.083" (2.10mm) |
|

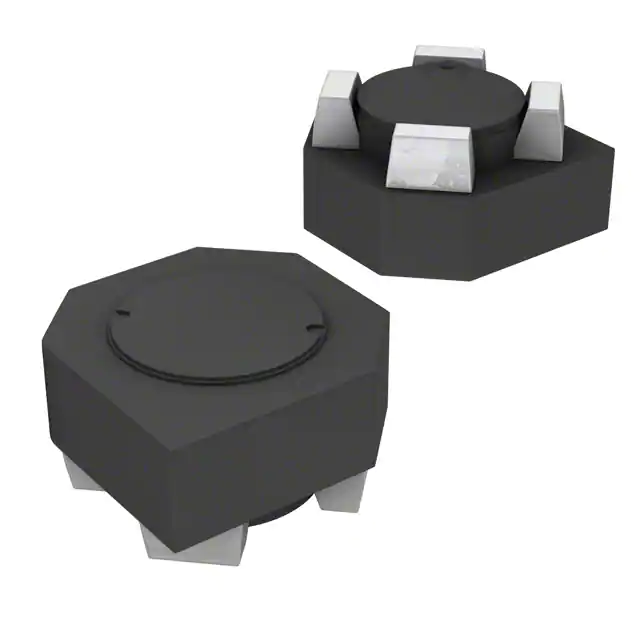

SRU3017-100YFIXED IND 10UH 850MA 120MOHM SMD |
1,009 |
|
Datasheet |
SRU3017 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 850 mA | 470mA | Shielded | 120mOhm | 15 @ 7.96MHz | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.130" W (3.50mm x 3.30mm) | 0.079" (2.00mm) |
|
SDR1005-331KLFIXED IND 330UH 550MA 1.15OHM SM |
988 |
|
Datasheet |
SDR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 550 mA | 600mA | Unshielded | 1.15Ohm Max | 56 @ 70kHz | 4MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.197" (5.00mm) |
|
|
SRU3017-220YFIXED IND 22UH 600MA 250MOHM SMD |
671 |
|
Datasheet |
SRU3017 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 600 mA | 300mA | Shielded | 250mOhm | 20 @ 2.52MHz | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.130" W (3.50mm x 3.30mm) | 0.079" (2.00mm) |
|
|
SRU3017-2R2YFIXED IND 2.2UH 1.7A 35 MOHM SMD |
197 |
|
Datasheet |
SRU3017 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 1.7 A | 980mA | Shielded | 35mOhm | 8 @ 7.96MHz | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.130" W (3.50mm x 3.30mm) | 0.079" (2.00mm) |
|
SRU2013-220YFIXED IND 22UH 400MA 880MOHM SMD |
175 |
|
Datasheet |
SRU2013 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 400 mA | 350mA | Shielded | 880mOhm Max | 12 @ 2.52MHz | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.059" (1.50mm) |
|
SRU2016-150YFIXED IND 15UH 600MA 650MOHM SMD |
1,922 |
|
Datasheet |
SRU2016 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 600 mA | 400mA | Shielded | 650mOhm Max | 10 @ 2.52MHz | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.071" (1.80mm) |
|
SDR1006-1R5MLFIXED IND 1.5UH 6.4A 18 MOHM SMD |
1,430 |
|
Datasheet |
SDR1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 6.4 A | 10A | Unshielded | 18mOhm Max | 35 @ 7.96MHz | 105MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
SDR1006-472KLFIXED IND 4.7MH 100MA 18 OHM SMD |
1,378 |
|
Datasheet |
SDR1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 100 mA | 240mA | Unshielded | 18Ohm Max | 32 @ 252kHz | 800kHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
SDR1005-1R0MLFIXED IND 1UH 7.5A 7 MOHM SMD |
1,200 |
|
Datasheet |
SDR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 7.5 A | 9A | Unshielded | 7mOhm Max | 55 @ 2.6MHz | 137MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.197" (5.00mm) |
|
|
SDR1006-681KLFIXED IND 680UH 280MA 2.25OHM SM |
1,133 |
|
Datasheet |
SDR1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 280 mA | 650mA | Unshielded | 2.25Ohm Max | 12 @ 796kHz | 2.1MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
SDR1006-100MLFIXED IND 10UH 2.6A 60 MOHM SMD |
1,086 |
|
Datasheet |
SDR1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.6 A | 5.1A | Unshielded | 60mOhm Max | 30 @ 2.52MHz | 21MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
SRU3028-100YFIXED IND 10UH 720MA 160MOHM SMD |
1,078 |
|
Datasheet |
SRU3028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 720 mA | 860mA | Shielded | 160mOhm | 20 @ 7.96MHz | 35MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.130" W (3.50mm x 3.30mm) | 0.118" (3.00mm) |
|
|
SRU3028-220YFIXED IND 22UH 600MA 270MOHM SMD |
937 |
|
Datasheet |
SRU3028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 600 mA | 620mA | Shielded | 270mOhm | 18 @ 2.52MHz | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.130" W (3.50mm x 3.30mm) | 0.118" (3.00mm) |
|
|
SDR1006-180MLFIXED IND 18UH 2.15A 90 MOHM SMD |
874 |
|
Datasheet |
SDR1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 2.15 A | 3.8A | Unshielded | 90mOhm Max | 30 @ 2.52MHz | 15MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
