Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NR10050T680MFIXED IND 68UH 1.5A 187.2MOHM SM |
473 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.5 A | 1.7A | Unshielded | 187.2mOhm Max | - | 5.6MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
22R336CFIXED IND 33MH 36MA 118.8 OHM TH |
244 |
|
Datasheet |
2200R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 33 mH | ±10% | 36 mA | - | Unshielded | 118.8Ohm Max | 95 @ 50kHz | 280kHz | - | -25°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.413" (10.50mm) |
|
|
22R106CFIXED IND 10MH 63MA 37.4 OHM TH |
244 |
|
Datasheet |
2200R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 10 mH | ±10% | 63 mA | - | Unshielded | 37.4Ohm Max | 155 @ 150kHz | 620kHz | - | -25°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.413" (10.50mm) |
|
SWPA6045S101MTFIXED IND 100UH 800MA 563MOHM SM |
1,133 |
|
Datasheet |
SWPA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 800 mA | 1A | Shielded | 563mOhm Max | - | 4.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
SRR0603-6R8MLFIXED IND 6.8UH 1.2A 100MOHM SMD |
1,669 |
|
Datasheet |
SRR0603 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.2 A | 1.75A | Shielded | 100mOhm Max | 13 @ 7.96MHz | 32MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.130" (3.30mm) |
|
|
SRR0603-680KLFIXED IND 68UH 400MA 900MOHM SMD |
1,580 |
|
Datasheet |
SRR0603 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 400 mA | 530mA | Shielded | 900mOhm Max | 11 @ 2.52MHz | 10MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.130" (3.30mm) |
|
|
SRR0603-331KLFIXED IND 330UH 180MA 4.2OHM SMD |
1,563 |
|
Datasheet |
SRR0603 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 180 mA | 240mA | Shielded | 4.2Ohm Max | 18 @ 796kHz | 4.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.130" (3.30mm) |
|
|
SRR0603-102KLFIXED IND 1MH 100MA 14 OHM SMD |
1,498 |
|
Datasheet |
SRR0603 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 100 mA | 130mA | Shielded | 14Ohm Max | 20 @ 252kHz | 3MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.130" (3.30mm) |
|
CDRH3D18NP-150NCFIXED IND 15UH 750MA 302MOHM SMD |
1,436 |
|
Datasheet |
CDRH3D18 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±30% | 750 mA | 750mA | Shielded | 302mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.079" (2.00mm) |
|
|
SRR0603-150MLFIXED IND 15UH 900MA 180MOHM SMD |
1,218 |
|
Datasheet |
SRR0603 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 900 mA | 1.2A | Shielded | 180mOhm Max | 16 @ 2.52MHz | 25MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.130" (3.30mm) |
|
|
SRR0603-101KLFIXED IND 100UH 300MA 1.5OHM SMD |
1,202 |
|
Datasheet |
SRR0603 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 300 mA | 440mA | Shielded | 1.5Ohm Max | 22 @ 796kHz | 9MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.130" (3.30mm) |
|
SRR0805-220YFIXED IND 22UH 1.1A 180 MOHM SMD |
809 |
|
Datasheet |
SRR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±15% | 1.1 A | 1.5A | Shielded | 180mOhm Max | 38 @ 2.52MHz | 19MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.185" (4.70mm) |
|
ISC1812ES1R0KFIXED IND 1UH 447MA 350 MOHM SMD |
718 |
|
Datasheet |
ISC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±10% | 447 mA | - | Shielded | 350mOhm Max | 30 @ 7.96MHz | 140MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
SPM10040T-1R0MFIXED IND 1UH 15A 4.2 MOHM SMD |
707 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 15 A | 18A | Shielded | 4.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.157" (4.00mm) |
|
12RS334CFIXED IND 330UH 850MA 510MOHM TH |
643 |
|
Datasheet |
1200RS | Radial, Vertical Cylinder, 4 Leads | Bulk | Active | Wirewound | - | 330 µH | ±15% | 850 mA | - | Shielded | 510mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.335" (8.50mm) |
|
|
SRR0805-8R2MFIXED IND 8.2UH 1.75A 80MOHM SMD |
595 |
|
Datasheet |
SRR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 1.75 A | 2.5A | Shielded | 80mOhm Max | 19 @ 7.96MHz | 32MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.185" (4.70mm) |
|
|
SRR0603-3R3MLFIXED IND 3.3UH 1.8A 55 MOHM SMD |
584 |
|
Datasheet |
SRR0603 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.8 A | 2.6A | Shielded | 55mOhm Max | 16 @ 7.96MHz | 85MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.130" (3.30mm) |
|
7447462152FIXED IND 1.5MH 190MA 8 OHM TH |
523 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±5% | 190 mA | 200mA | Unshielded | 8Ohm Max | - | 1.4MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.236" Dia (6.00mm) | 0.335" (8.50mm) |
|

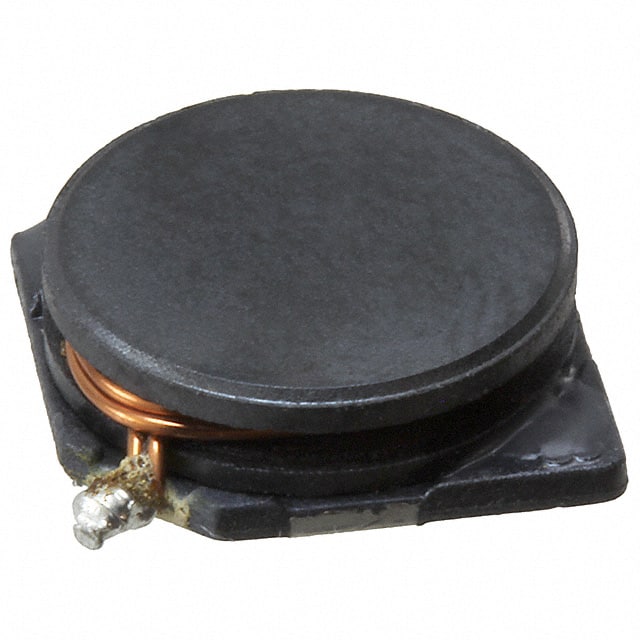

SDR1030-102KFIXED IND 1MH 200MA 4.7 OHM SMD |
489 |
|
Datasheet |
SDR1030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 200 mA | 230mA | Unshielded | 4.7Ohm Max | 42 @ 252kHz | 2.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.130" (3.30mm) |
|
|
7447462047FIXED IND 4.7UH 4.2A 30 MOHM TH |
488 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4.2 A | 3.7A | Unshielded | 30mOhm Max | - | 40MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.236" Dia (6.00mm) | 0.335" (8.50mm) |
