Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
13R682CFIXED IND 6.8UH 3.5A 23 MOHM TH |
4,943 |
|
Datasheet |
1300R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 6.8 µH | ±20% | 3.5 A | - | Unshielded | 23mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.531" (13.50mm) |
|
|
13R153CFIXED IND 15UH 2.5A 42 MOHM TH |
1,670 |
|
Datasheet |
1300R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 15 µH | ±10% | 2.5 A | - | Unshielded | 42mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.531" (13.50mm) |
|

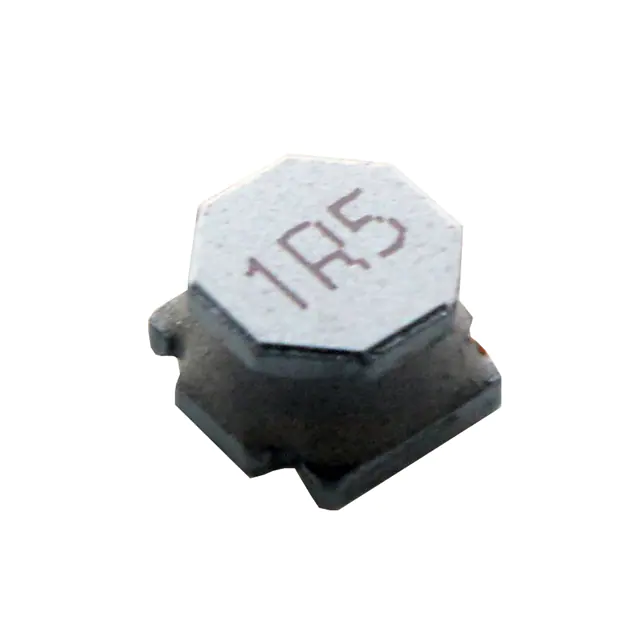

MPL-SE6040-100FIXED IND 10UH 3.8A 41 MOHM SMD |
1,390 |
|
Datasheet |
MPL-SE | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | - | 10 µH | - | 3.8 A | 3.4A | Semi-Shielded | 41mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.157" (4.00mm) |
|
|
MPL-SE6040-150FIXED IND 15UH 2.8A 70 MOHM SMD |
1,300 |
|
Datasheet |
MPL-SE | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | - | 15 µH | - | 2.8 A | 2.7A | Shielded | 70mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.157" (4.00mm) |
|
744050200047FIXED IND 470NH 2.2A 49 MOHM SMD |
981 |
|
Datasheet |
WE-LQSH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 2.2 A | 4.7A | Shielded | 49mOhm Max | - | 159MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | SMD | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
LQH5BPB4R7NT0LFIXED IND 4.7UH 2A 69.6 MOHM SMD |
975 |
|
Datasheet |
LQH5 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 2 A | 3A | Shielded | 69.6mOhm Max | - | 40MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 2020 (5050 Metric) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|
IFSC1111AZER100M01FIXED IND 10UH 800MA 340MOHM SMD |
923 |
|
Datasheet |
IFSC-1111AZ | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 800 mA | 520mA | Shielded | 340mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.117" L x 0.117" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
MPL-SE6040-220FIXED IND 22UH 2.35A 97 MOHM SMD |
860 |
|
Datasheet |
MPL-SE | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | - | 22 µH | - | 2.35 A | 2.25A | Shielded | 97mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.157" (4.00mm) |
|
|
74405024010FIXED IND 1UH 2.35A 58 MOHM SMD |
760 |
|
Datasheet |
WE-LQSH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 2.35 A | 4.2A | Shielded | 58mOhm Max | - | 87MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | SMD | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
74405020100FIXED IND 10UH 580MA 816MOHM SMD |
626 |
|
Datasheet |
WE-LQSH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 580 mA | 950mA | Shielded | 816mOhm Max | - | 22MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | SMD | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
LQH5BPB1R0NT0LFIXED IND 1UH 3.1A 22.8 MOHM SMD |
623 |
|
Datasheet |
LQH5 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 3.1 A | 5.8A | Shielded | 22.8mOhm Max | - | 90MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 2020 (5050 Metric) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|
|
LQH5BPB2R2NT0LFIXED IND 2.2UH 2.6A 36 MOHM SMD |
503 |
|
Datasheet |
LQH5 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 2.6 A | 4A | Shielded | 36mOhm Max | - | 55MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 2020 (5050 Metric) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|
|
LQH5BPB6R8NT0LFIXED IND 6.8UH 1.65A 99.6 MOHM |
500 |
|
Datasheet |
LQH5 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 1.65 A | 2.5A | Shielded | 99.6mOhm Max | - | 30MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 2020 (5050 Metric) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|
1267AY-3R3N=P3FIXED IND 3.3UH 6.1A 15.6MOHM SM |
270 |
|
Datasheet |
DG8040C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 6.1 A | - | Shielded | 15.6mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.157" (4.00mm) |
|
|
IFSC1111AZER330M01FIXED IND 33UH 400MA 1.25OHM SMD |
125 |
|
Datasheet |
IFSC-1111AZ | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 400 mA | 300mA | Shielded | 1.25Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.117" L x 0.117" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
LQH5BPB150MT0LFIXED IND 15UH 1.2A 224.4MOHM SM |
115 |
|
Datasheet |
LQH5 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.2 A | 1.6A | Shielded | 224.4mOhm Max | - | 18MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 2020 (5050 Metric) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|
MDJE4040T2R2MMFIXED IND 2.2UH 2.7A 115MOHM SMD |
1,936 |
|
Datasheet |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 2.7 A | 2.4A | Shielded | 115mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.037" (0.95mm) |
|
744764004FIXED IND 470NH 450MA 500MOHM SM |
1,804 |
|
Datasheet |
WE-GF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 450 mA | - | Unshielded | 500mOhm Max | 30 @ 25.2MHz | 480MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
744764147FIXED IND 47UH 60MA 7 OHM SMD |
1,730 |
|
Datasheet |
WE-GF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 60 mA | - | Unshielded | 7Ohm Max | 30 @ 2.52MHz | 15MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
744764122FIXED IND 22UH 110MA 3.7 OHM SMD |
1,508 |
|
Datasheet |
WE-GF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 110 mA | - | Unshielded | 3.7Ohm Max | 30 @ 2.52MHz | 20MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
