Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDR0603-2R5MLFIXED IND 2.5UH 2.35A 50MOHM SMD |
953 |
|
Datasheet |
SDR0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.5 µH | ±20% | 2.35 A | 2.7A | Unshielded | 50mOhm Max | 21 @ 7.96MHz | 74MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.154" (3.90mm) |
|
SDR0403-561KLFIXED IND 560UH 120MA 7.8OHM SMD |
901 |
|
Datasheet |
SDR0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 120 mA | 180mA | Unshielded | 7.8Ohm Max | 50 @ 796kHz | 2.8MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|

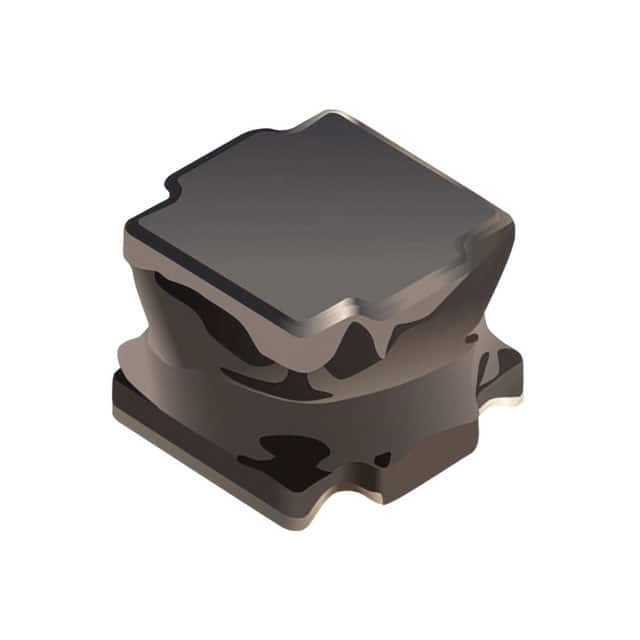

SRN6045HA-4R7YIND,6X6X4.7MM,4.7UH30%,3.6A,SEMI |
871 |
|
Datasheet |
SRN6045HA | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 3.6 A | 7A | Shielded | 35mOhm Max | 20 @ 7.96MHz | 30MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|
VLCF5020T-330MR48FIXED IND 33UH 480MA 522MOHM SMD |
799 |
|
Datasheet |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 480 mA | 480mA | Shielded | 522mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
SDR0603-100MLFIXED IND 10UH 1.14A 150MOHM SMD |
740 |
|
Datasheet |
SDR0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.14 A | 1.4A | Unshielded | 150mOhm Max | 24 @ 2.52MHz | 34MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.154" (3.90mm) |
|
B82141A1473J000FIXED IND 47UH 200MA 2.4 OHM TH |
732 |
|
Datasheet |
SBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±5% | 200 mA | - | Unshielded | 2.4Ohm Max | 55 @ 2.52MHz | 7.7MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) | - |
|
TFM201208BLE-R33MTCFINDUCTORS FOR POWER CIRCUITS, TH |
679 |
|
Datasheet |
TFM-BLE | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 330 nH | ±20% | 4.2 A | 5.5A | Shielded | 25mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
|
SDR0603-4R7MLFIXED IND 4.7UH 1.8A 70 MOHM SMD |
620 |
|
Datasheet |
SDR0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.8 A | 2.2A | Unshielded | 70mOhm Max | 20 @ 7.96MHz | 56MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.154" (3.90mm) |
|
|
SDR0603-391KLFIXED IND 390UH 180MA 3.4OHM SMD |
454 |
|
Datasheet |
SDR0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 180 mA | 320mA | Unshielded | 3.4Ohm Max | 28 @ 796kHz | 4MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.154" (3.90mm) |
|

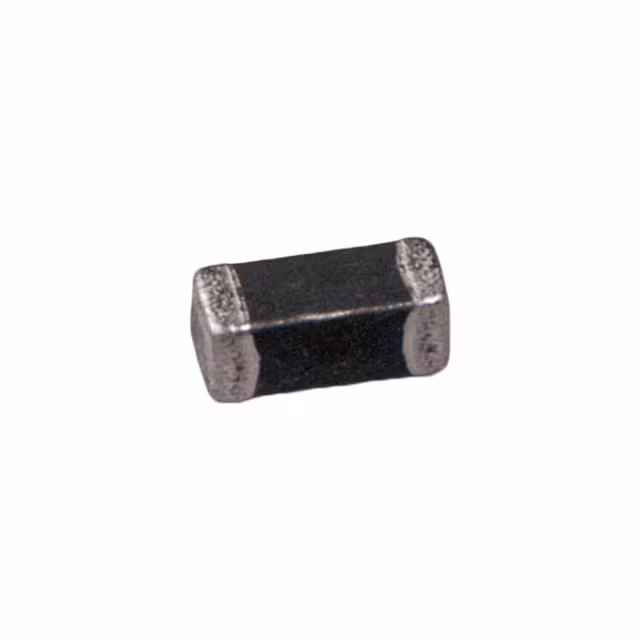

7447905FIXED IND 1UH 50MA 400 MOHM SMD |
405 |
|
Datasheet |
WE-MI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Nickel Zinc Ferrite (NiZn) | 1 µH | ±10% | 50 mA | - | Unshielded | 400mOhm Max | 45 @ 10MHz | 85MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) |
|
|
SDR0603-3R3MLFIXED IND 3.3UH 2.2A 50 MOHM SMD |
229 |
|
Datasheet |
SDR0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2.2 A | 2.6A | Unshielded | 50mOhm Max | 21 @ 7.96MHz | 68MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.154" (3.90mm) |
|
MDWK4040T6R8MMFIXED IND 6.8UH 2A 158 MOHM SMD |
1,488 |
|
Datasheet |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 2 A | 4A | Shielded | 158mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
MDWK4040T100MMFIXED IND 10UH 1.6A 194 MOHM SMD |
1,336 |
|
Datasheet |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 1.6 A | 3.1A | Shielded | 194mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
SDCHA1V8040-470-RIND SMD POWER 47.0UH 2.0A |
1,897 |
|
Datasheet |
SDCHA1V80 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 47 µH | ±20% | 2 A | 2.2A | Shielded | 135mOhm | - | 12MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
NRS8040T4R7NJGJVFIXED IND 4.7UH 4.1A 23.4MOHM SM |
1,892 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 4.1 A | 5.4A | Shielded | 23.4mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
AISM-1812-151K-TFIXED IND 150UH 105MA 9 OHM SMD |
1,817 |
|
Datasheet |
AISM-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 105 mA | - | Unshielded | 9Ohm Max | 40 @ 796kHz | 5MHz | - | -40°C ~ 85°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
SDE0604A-470MFIXED IND 47UH 1.25A 370MOHM SMD |
1,778 |
|
Datasheet |
SDE0604A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.25 A | 900mA | Unshielded | 370mOhm Max | - | 14MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.189" (4.80mm) |
|
|
SDCHA1V8040-220-RIND SMD POWER 22.0UH 2.9A |
1,715 |
|
Datasheet |
SDCHA1V80 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 22 µH | ±20% | 2.9 A | 3.1A | Shielded | 73mOhm | - | 18MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
SDCHA1V8040-100-RIND SMD POWER 10.0UH 4.6A |
1,664 |
|
Datasheet |
SDCHA1V80 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 10 µH | ±20% | 4.6 A | 5A | Shielded | 33mOhm | - | 25MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
AWVS00606045101M00FIXED IND 100UH 800MA 500MOHM SM |
1,661 |
|
Datasheet |
AWVS | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 800 mA | 1.3A | Shielded | 500mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
