Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NRS8030T2R2NJGJVFIXED IND 2.2UH 4.8A 19.5MOHM SM |
1,426 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 4.8 A | 4.9A | Shielded | 19.5mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
NRS8030T6R8MJGJVFIXED IND 6.8UH 3A 37.7 MOHM SMD |
1,303 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 3 A | 3A | Shielded | 37.7mOhm Max | - | 32MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
SDCHA1V8040-5R6-RIND SMD POWER 5.6UH 5.4A |
821 |
|
Datasheet |
SDCHA1V80 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 5.6 µH | ±20% | 5.4 A | 6.2A | Shielded | 22mOhm | - | 33MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|

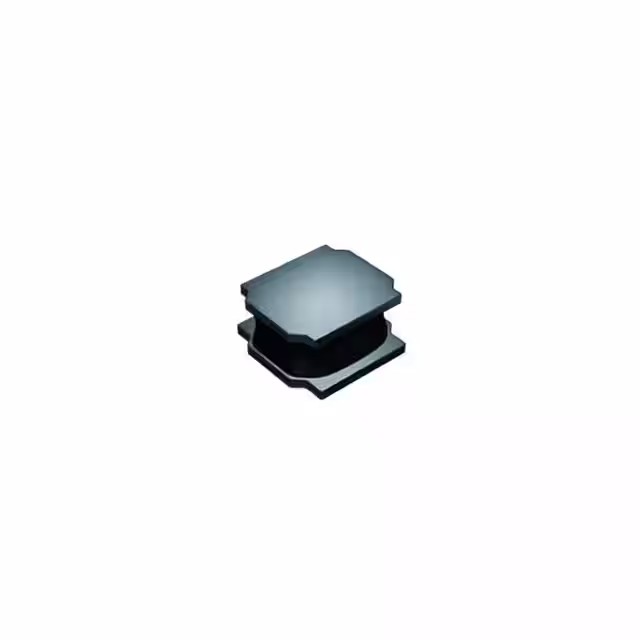

LCXNH8080YKL470MJGFIXED IND 47UH 1.5A 182 MOHM SMD |
565 |
|
Datasheet |
LCXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 1.5 A | 1.5A | Unshielded | 140mOhm | - | 8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
AIAC-1812-39NJ-TFIXED IND 39NH 2.8A 5.6 MOHM SMD |
153 |
|
Datasheet |
AIAC-1812 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 39 nH | ±5% | 2.8 A | - | Unshielded | 5.6mOhm Max | 100 @ 150MHz | 2.1GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.185" L x 0.138" W (4.70mm x 3.50mm) | 0.146" (3.70mm) |
|
AISM-1812-100K-TFIXED IND 10UH 250MA 1.6 OHM SMD |
115 |
|
Datasheet |
AISM-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 250 mA | - | Unshielded | 1.6Ohm Max | 50 @ 2.52MHz | 20MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
SDE0403A-680KFIXED IND 68UH 400MA 1.028OHM SM |
115 |
|
Datasheet |
SDE0403A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 400 mA | 550mA | Unshielded | 1.028Ohm Max | - | 13MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
SDE0604A-1R2MFIXED IND 1.2UH 5.3A 20 MOHM SMD |
3,802 |
|
Datasheet |
SDE0604A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 5.3 A | 6A | Unshielded | 20mOhm Max | - | 155MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.189" (4.80mm) |
|
SDR0503-330KLFIXED IND 33UH 700MA 380MOHM SMD |
1,582 |
|
Datasheet |
SDR0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 700 mA | 850mA | Unshielded | 380mOhm Max | 15 @ 2.52MHz | 18MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.197" L x 0.189" W (5.00mm x 4.80mm) | 0.130" (3.30mm) |
|
|
SDR0503-120MLFIXED IND 12UH 1.2A 160 MOHM SMD |
1,449 |
|
Datasheet |
SDR0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 1.2 A | 1.45A | Unshielded | 160mOhm Max | 20 @ 2.52MHz | 29MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.197" L x 0.189" W (5.00mm x 4.80mm) | 0.130" (3.30mm) |
|
|
SDR0503-502JLFIXED IND 5MH 39MA 60 OHM SMD |
1,359 |
|
Datasheet |
SDR0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5 mH | ±5% | 39 mA | 50mA | Unshielded | 60Ohm Max | 40 @ 252kHz | 1MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.197" L x 0.189" W (5.00mm x 4.80mm) | 0.130" (3.30mm) |
|
744766122FIXED IND 22UH 180MA 3.2 OHM SMD |
1,249 |
|
Datasheet |
WE-GF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 180 mA | - | Unshielded | 3.2Ohm Max | 50 @ 2.52MHz | 18MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.142" (3.60mm) |
|

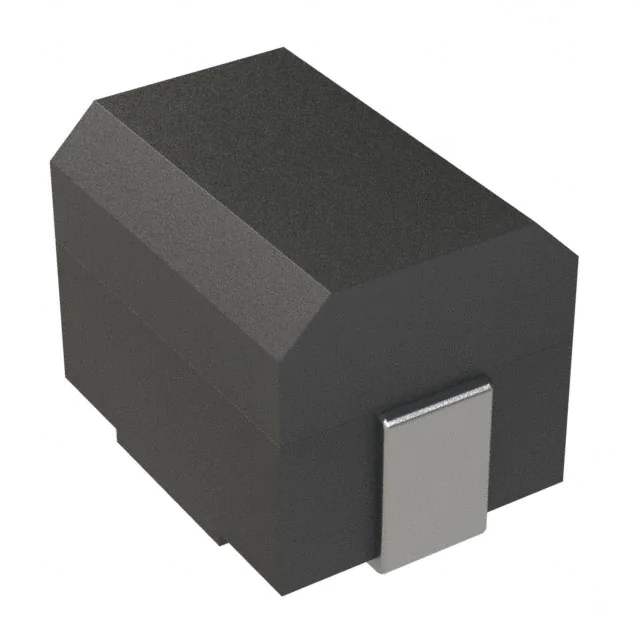

74476625FIXED IND 560UH 50MA 30 OHM SMD |
509 |
|
Datasheet |
WE-GF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 50 mA | - | Unshielded | 30Ohm Max | 40 @ 796kHz | 3MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.142" (3.60mm) |
|
|
74476624FIXED IND 470UH 62MA 26 OHM SMD |
460 |
|
Datasheet |
WE-GF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 62 mA | - | Unshielded | 26Ohm Max | 40 @ 796kHz | 3.4MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.142" (3.60mm) |
|
|
74476604FIXED IND 4.7UH 315MA 1 OHM SMD |
287 |
|
Datasheet |
WE-GF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 315 mA | - | Unshielded | 1Ohm Max | 50 @ 7.96MHz | 95MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.142" (3.60mm) |
|
ASPI-8040S-750M-TFIXED IND 75UH 1.2A 211 MOHM SMD |
1,960 |
|
Datasheet |
ASPI-8040S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 75 µH | ±20% | 1.2 A | 1.35A | Shielded | 211mOhm | - | 4.9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
ASPI-8040S-2R2N-TFIXED IND 2.2UH 5.15A 12MOHM SMD |
1,936 |
|
Datasheet |
ASPI-8040S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 5.15 A | 7.1A | Shielded | 12mOhm | - | 41MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
ASPI-8040S-150M-TFIXED IND 15UH 2.6A 47 MOHM SMD |
1,779 |
|
Datasheet |
ASPI-8040S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.6 A | 2.95A | Shielded | 47mOhm | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
ASPI-8040S-180M-TFIXED IND 18UH 2.4A 53 MOHM SMD |
1,625 |
|
Datasheet |
ASPI-8040S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 2.4 A | 2.7A | Shielded | 53mOhm | - | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
ASPI-8040S-620M-TFIXED IND 62UH 1.3A 182 MOHM SMD |
1,519 |
|
Datasheet |
ASPI-8040S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 62 µH | ±20% | 1.3 A | 1.5A | Shielded | 182mOhm | - | 6.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
