Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLCF5020T-150MR71FIXED IND 15UH 710MA 256MOHM SMD |
1,228 |
|
Datasheet |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 710 mA | 710mA | Shielded | 256mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
ASPIAIG-S8050-680M-TFIXED IND 68UH 1.45A 252MOHM SMD |
997 |
|
Datasheet |
ASPIAIG-S8050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 68 µH | ±20% | 1.45 A | 2A | Shielded | 252mOhm | - | 5.4MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.205" (5.20mm) |
|
7440329002FIXED IND 2.2UH 790MA 126MOHM SM |
703 |
|
Datasheet |
WE-LQ | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 790 mA | 1.2A | Unshielded | 126mOhm Max | - | 63MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
SDE0805A-560KFIXED IND 56UH 1.6A 240 MOHM SMD |
612 |
|
Datasheet |
SDE0805A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 1.6 A | 1.2A | Unshielded | 240mOhm Max | - | 11.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
SDE0805A-680KFIXED IND 68UH 1.45A 280MOHM SMD |
585 |
|
Datasheet |
SDE0805A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 1.45 A | 1.1A | Unshielded | 280mOhm Max | - | 10.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|

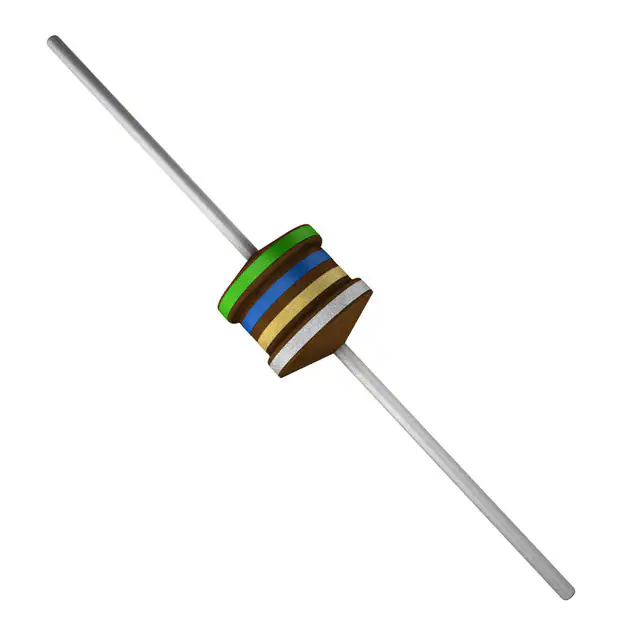

B82144F2562K000FIXED IND 5.6UH 2.95A 0.09OHM TH |
482 |
|
Datasheet |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±10% | 2.95 A | 3.75A | Unshielded | 90mOhm Max | 50 @ 2.52MHz | 45MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|
SDR0805-6R8MLFIXED IND 6.8UH 3.2A 40 MOHM SMD |
1,994 |
|
Datasheet |
SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 3.2 A | 4.1A | Unshielded | 40mOhm Max | 30 @ 7.96MHz | 33MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
|
SDR0805-821KLFIXED IND 820UH 230MA 4 OHM SMD |
1,805 |
|
Datasheet |
SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 230 mA | 350mA | Unshielded | 4Ohm Max | 28 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
|
SDR0805-271KLFIXED IND 270UH 420MA 1.11OHM SM |
1,219 |
|
Datasheet |
SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 420 mA | 660mA | Unshielded | 1.11Ohm Max | 12 @ 796kHz | 5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
|
SDR0805-391KLFIXED IND 390UH 360MA 1.77OHM SM |
1,190 |
|
Datasheet |
SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 360 mA | 550mA | Unshielded | 1.77Ohm Max | 12 @ 796kHz | 4MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
|
SDR0805-820KLFIXED IND 82UH 780MA 370MOHM SMD |
1,000 |
|
Datasheet |
SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 780 mA | 1.2A | Unshielded | 370mOhm Max | 12 @ 2.52MHz | 7MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
|
SDR0805-392KLFIXED IND 3.9MH 90MA 18 OHM SMD |
440 |
|
Datasheet |
SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 mH | ±10% | 90 mA | 160mA | Unshielded | 18Ohm Max | 28 @ 252kHz | 1MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
|
SDR0805-152KLFIXED IND 1.5MH 150MA 8 OHM SMD |
310 |
|
Datasheet |
SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 150 mA | 260mA | Unshielded | 8Ohm Max | 27 @ 252kHz | 2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
744764168FIXED IND 68UH 50MA 9 OHM SMD |
1,946 |
|
Datasheet |
WE-GF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 50 mA | - | Unshielded | 9Ohm Max | 30 @ 2.52MHz | 12.5MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
SDR0805-561KLFIXED IND 560UH 300MA 2.5OHM SMD |
1,179 |
|
Datasheet |
SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 300 mA | 460mA | Unshielded | 2.5Ohm Max | 30 @ 796kHz | 4MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
|
74476603FIXED IND 3.3UH 355MA 800MOHM SM |
1,138 |
|
Datasheet |
WE-GF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 355 mA | - | Unshielded | 800mOhm Max | 50 @ 7.96MHz | 155MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 4532 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.142" (3.60mm) |
|
RLB0913-680KFIXED IND 68UH 1.4A 210 MOHM TH |
989 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 1.4 A | 1.2A | Unshielded | 210mOhm | 30 @ 2.52MHz | 4.9MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
22R103MCFIXED IND 10UH 2.52A 50 MOHM SMD |
977 |
|
Datasheet |
2200RM | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±10% | 2.52 A | - | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.311" (7.90mm) |
|
|
RLB0913-820KFIXED IND 82UH 1.35A 230 MOHM TH |
973 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 1.35 A | 1.1A | Unshielded | 230mOhm | 30 @ 2.52MHz | 4.1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
|
RLB0913-120KFIXED IND 12UH 2.9A 50 MOHM TH |
964 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 2.9 A | 2.7A | Unshielded | 50mOhm | 50 @ 2.52MHz | 13MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
