Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
195P10FIXED IND 30MH 10A 170 MOHM CHAS |
4,321 |
|
Datasheet |
195 | Nonstandard | Bulk | Active | - | - | 30 mH | ±15% | 10 A | - | Unshielded | 170mOhm | - | - | - | - | - | - | Chassis Mount | - | 4.500" L x 5.250" W (114.30mm x 133.35mm) | 3.750" (95.25mm) |
|

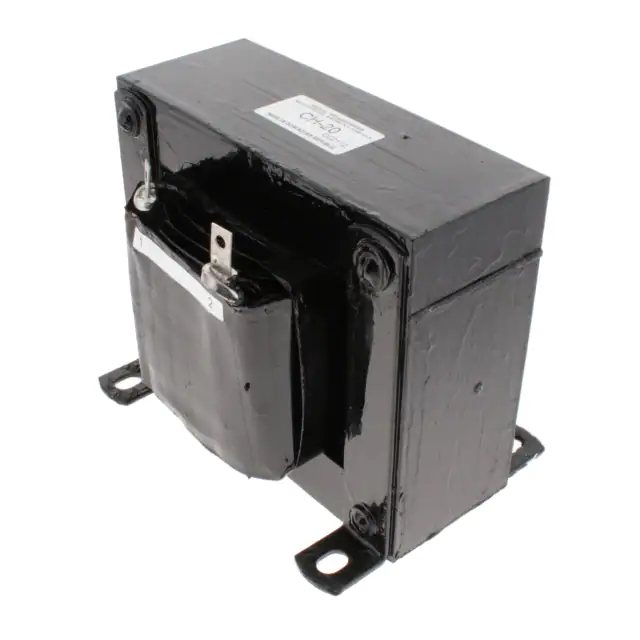

CH-20FIXED IND 7MH 20A 50 MOHM CHASS |
1,567 |
|
Datasheet |
- | Nonstandard | Box | Active | - | - | 7 mH | - | 20 A | - | Unshielded | 50mOhm | - | - | - | - | - | - | Chassis Mount | - | 5.252" L x 4.000" W (133.40mm x 101.60mm) | 4.437" (112.70mm) |
|
193QFIXED IND 10H 500MA 53 OHM CHASS |
4,805 |
|
Datasheet |
193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 10 H | ±15% | 500 mA | - | Unshielded | 53Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 5.500" L x 3.750" W (139.70mm x 95.25mm) | 4.560" (115.82mm) |
|
197H10FIXED IND 7.5MH 10A 0.143OHM SMD |
1,217 |
|
Datasheet |
197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 7.5 mH | ±15% | 10 A | - | Unshielded | 143mOhm | - | 123.3kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 6.100" L x 4.380" W (154.94mm x 111.25mm) | 6.400" (162.56mm) |
|
|
195R10FIXED IND 50MH 10A 165 MOHM CHAS |
3,209 |
|
Datasheet |
195 | Nonstandard | Bulk | Active | - | - | 50 mH | ±15% | 10 A | - | Unshielded | 165mOhm | - | - | - | - | - | - | Chassis Mount | - | 5.250" L x 5.500" W (133.35mm x 139.70mm) | 4.470" (113.54mm) |
|
|
195G30FIXED IND 5MH 30A 23 MOHM CHASS |
4,545 |
|
Datasheet |
195 | Nonstandard | Bulk | Active | - | - | 5 mH | ±15% | 30 A | - | Unshielded | 23mOhm | - | - | - | - | - | - | Chassis Mount | - | 5.250" L x 5.500" W (133.35mm x 139.70mm) | 4.470" (113.54mm) |
|
|
195C75FIXED IND 1MH 75A 4MOHM CHAS MNT |
1,441 |
|
Datasheet |
195 | Nonstandard | Bulk | Active | - | - | 1 mH | ±15% | 75 A | - | Unshielded | 4mOhm | - | - | - | - | - | - | Chassis Mount | - | 5.250" L x 6.000" W (133.35mm x 152.40mm) | 4.470" (113.54mm) |
|
|
195J30FIXED IND 10MH 30A 37 MOHM CHASS |
2,928 |
|
Datasheet |
195 | Nonstandard | Bulk | Active | - | - | 10 mH | ±15% | 30 A | - | Unshielded | 37mOhm | - | - | - | - | - | - | Chassis Mount | - | 6.000" L x 7.500" W (152.40mm x 190.50mm) | 5.000" (127.00mm) |
|
CLF6045NIT-6R8N-DFIXED IND 6.8UH 2.5A 35 MOHM SMD |
1,655 |
|
Datasheet |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 2.5 A | 2.5A | Shielded | 35mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
 TDK.jpg)
|
MLF2012A4R7JT000FIXED IND 4.7UH 30MA 700MOHM SMD |
771 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±5% | 30 mA | - | Shielded | 700mOhm Max | 45 @ 10MHz | 50MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
CLF6045NIT-470M-DFIXED IND 47UH 970MA 156MOHM SMD |
645 |
|
Datasheet |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 970 mA | 970mA | Shielded | 156mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
.jpg)
|
LQG15HN68NH02DFIXED IND 68NH 200MA 1.25OHM SMD |
989 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 68 nH | ±3% | 200 mA | - | Unshielded | 1.25Ohm Max | - | 800MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
AIMC-0603-68NJ-TFIXED IND 68NH 300MA 850MOHM SMD |
942 |
|
Datasheet |
AIMC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 68 nH | ±5% | 300 mA | - | Unshielded | 850mOhm Max | 12 @ 100MHz | 700MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
ATFC-0402-8N2B-TFIXED IND 8.2NH 220MA 1.25OHM SM |
876 |
|
Datasheet |
ATFC-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | 8.2 nH | ±0.1nH | 220 mA | - | Unshielded | 1.25Ohm Max | 13 @ 500MHz | 5.5GHz | - | -45°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
WLCM0603TGH6N8TBINDUCTOR FIXED 6.8NH 0201 |
749 |
|
Datasheet |
CM | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 6.8 nH | ±3% | 300 mA | - | Unshielded | 530mOhm Max | 12 @ 500MHz | 5.4GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
7447840110FIXED IND 10NH 300MA 350MOHM SMD |
601 |
|
Datasheet |
WE-MK | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 10 nH | ±5% | 300 mA | - | Unshielded | 350mOhm Max | 8 @ 100MHz | 3.2GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
AIML-0603-1R8K-TFIXED IND 1.8UH 25MA 950MOHM SMD |
582 |
|
Datasheet |
AIML-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.8 µH | ±10% | 25 mA | - | Shielded | 950mOhm Max | 35 @ 10MHz | 95MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
7447860022GWE-MK MULTILAYER CERAMIC SMT IND |
562 |
|
Datasheet |
WE-MK | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2.2 nH | ±0.1nH | 300 mA | - | Unshielded | 100mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LQG15WZ3N1S02DFIXED IND 3.1NH 900MA 0.09OHM SM |
489 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 3.1 nH | ±0.3nH | 900 mA | - | Unshielded | 90mOhm Max | 23 @ 250MHz | 6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
.jpg)
|
LQP03TNR18H02DFIXED IND 180NH 70MA 11 OHM SMD |
435 |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 180 nH | ±3% | 70 mA | - | Unshielded | 11Ohm Max | 5 @ 100MHz | 600MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
