Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCK-120FIXED IND 10UH 900MA 354MOHM SMD |
3,155 |
|
Datasheet |
- | 1210 (3225 Metric) | Bag | Active | - | - | 10 µH | ±20% | 900 mA | - | Unshielded | 354mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|

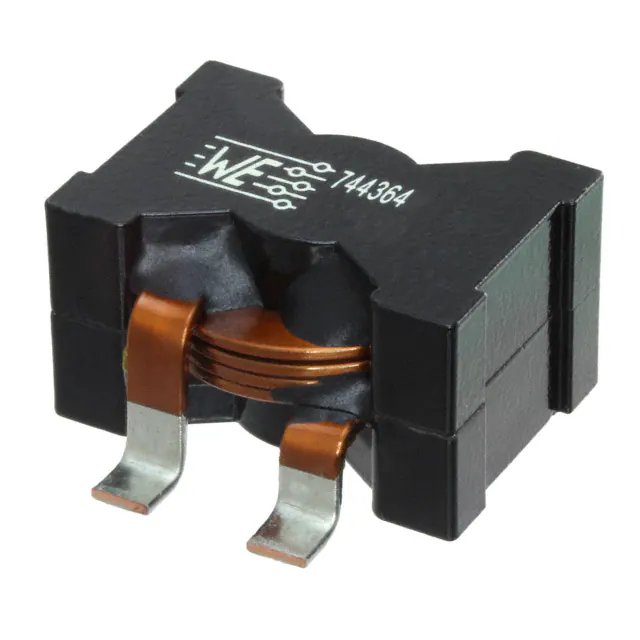

74436410470FIXED IND 4.7UH 36A 1.441MOHM SM |
1,003 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 4.7 µH | ±15% | 36 A | 44A | Shielded | 1.441mOhm Max | - | 21.56MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2815 | 1.102" L x 0.764" W (28.00mm x 19.40mm) | 0.606" (15.40mm) |
|
|
74436412200FIXED IND 22UH 36A 1.441MOHM SMD |
4,142 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 22 µH | ±15% | 36 A | 9.5A | Shielded | 1.441mOhm Max | - | 8.06MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2815 | 1.102" L x 0.764" W (28.00mm x 19.40mm) | 0.606" (15.40mm) |
|
B82559A0293A020FIXED IND 29UH 7 MOHM SMD |
184 |
|
Datasheet |
ERU20 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 29 µH | ±10% | - | 11A | Shielded | 7mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.878" L x 0.866" W (22.30mm x 22.00mm) | 0.571" (14.50mm) |
|
IHLP8787MZER750M5AFIXED IND 75UH 12A 32.35 MOHM |
3,115 |
|
Datasheet |
IHLP-8787MZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 75 µH | ±20% | 12 A | 12A | Shielded | 32.35mOhm Max | - | 2.01MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
74437529203471FIXED IND 470UH 5.5A 83.45 MOHM |
1,969 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 470 µH | ±20% | 5.5 A | 3.7A | Shielded | 83.45mOhm | - | 1.7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2920 | 1.102" L x 0.984" W (28.00mm x 25.00mm) | 0.807" (20.50mm) |
|
|
74437429203330FIXED IND 33UH 13A 15.3 MOHM SMD |
3,647 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 33 µH | ±20% | 13 A | 16.3A | Shielded | 15.3mOhm | - | 8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2920 | 1.102" L x 0.984" W (28.00mm x 25.00mm) | 0.807" (20.50mm) |
|
SHBC20-1R7A0152VCMC 152UH 12A 2LN TH |
4,445 |
|
Datasheet |
SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 152 µH | ±20% | 12 A | - | Unshielded | 20.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 1.622" Dia (41.20mm) | 1.622" (41.20mm) |
|
B82559A0153A024FIXED IND 15UH 25.5A 2.8MOHM SMD |
2,132 |
|
Datasheet |
ERU24 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 25.5 A | 24.6A | Shielded | 2.8mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.972" L x 0.898" W (24.70mm x 22.80mm) | 0.719" (18.25mm) |
|
SRP2313CC-101MIND SMD 100UH 11A |
2,808 |
|
Datasheet |
SRP2313CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 100 µH | ±20% | 11 A | 9A | Shielded | 40mOhm Max | - | 2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
7443641000BFIXED IND 10UH 47.5A 0.968 MOHM |
1,731 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 10 µH | ±20% | 47.5 A | 25.1A | Shielded | 0.968mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.102" L x 0.764" W (28.00mm x 19.40mm) | 0.728" (18.50mm) |
|

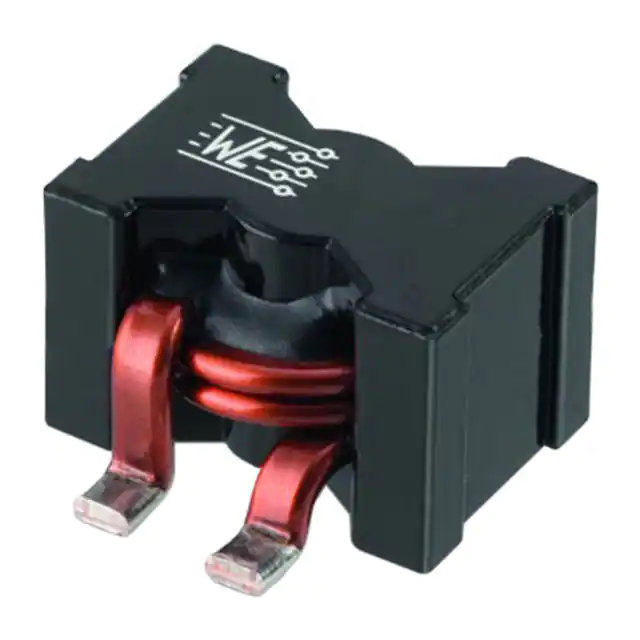

7443640470BFIXED IND 4.7UH 47.5A 0.968 MOHM |
2,486 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 4.7 µH | ±20% | 47.5 A | 49.5A | Shielded | 0.968mOhm Max | - | 22.6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.102" L x 0.764" W (28.00mm x 19.40mm) | 0.728" (18.50mm) |
|

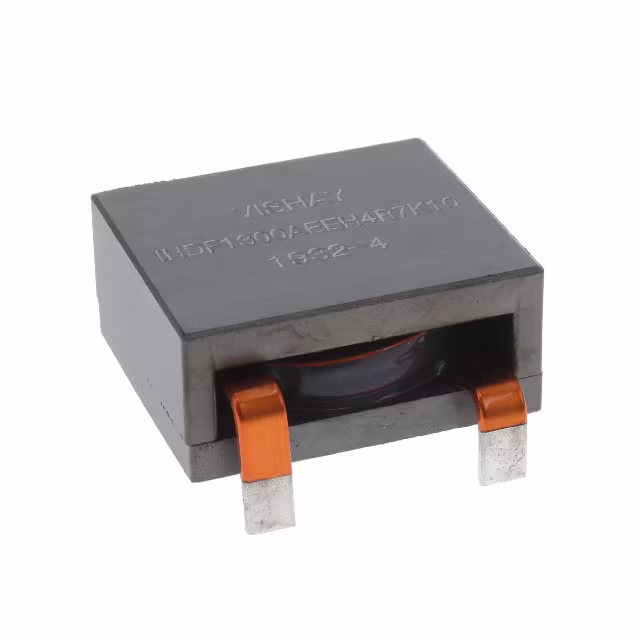

IHDF1300AEEH4R7K10FIXED IND 4.7UH 59A 1.11 MOHM TH |
4,056 |
|
Datasheet |
IHDF-1300AE-10 | Nonstandard | Tray | Active | - | Ferrite | 4.7 µH | ±10% | 59 A | 92A | Unshielded | 1.11mOhm Max | - | 16MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.299" L x 1.299" W (33.00mm x 33.00mm) | 0.606" (15.40mm) |
|
1130-332K-RCFIXED IND 3.3MH 1.3A 1.27 OHM TH |
3,699 |
|
Datasheet |
1130 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±10% | 1.3 A | - | Unshielded | 1.27Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
IHLP8787MZER470M51FIXED IND 47UH 13.5A 17.7MOHM SM |
181 |
|
Datasheet |
IHLP-8787MZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 47 µH | ±20% | 13.5 A | 10A | Shielded | 17.7mOhm Max | - | 2.99MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|

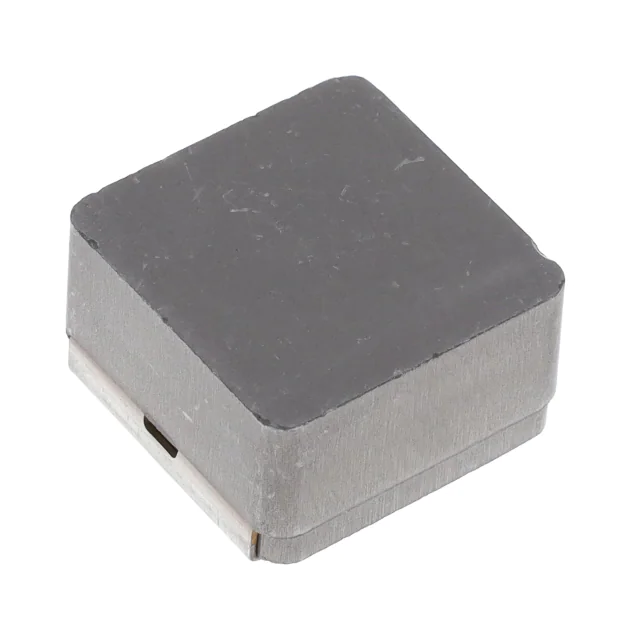

IHLP8787MZER3R3M5AFIXED IND 3.3UH 49A 1.77MOHM SMD |
3,900 |
|
Datasheet |
IHLP-8787MZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 49 A | 41A | Shielded | 1.77mOhm Max | - | 12.8MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
|
IHLP8787MZER2R2M5AIHLP-8787MZ-5A 2.2 20% ER E3 |
133 |
|
Datasheet |
IHLP-8787MZ-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 2.2 µH | ±20% | 58 A | 48A | Shielded | 1.25mOhm Max | - | 17.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|

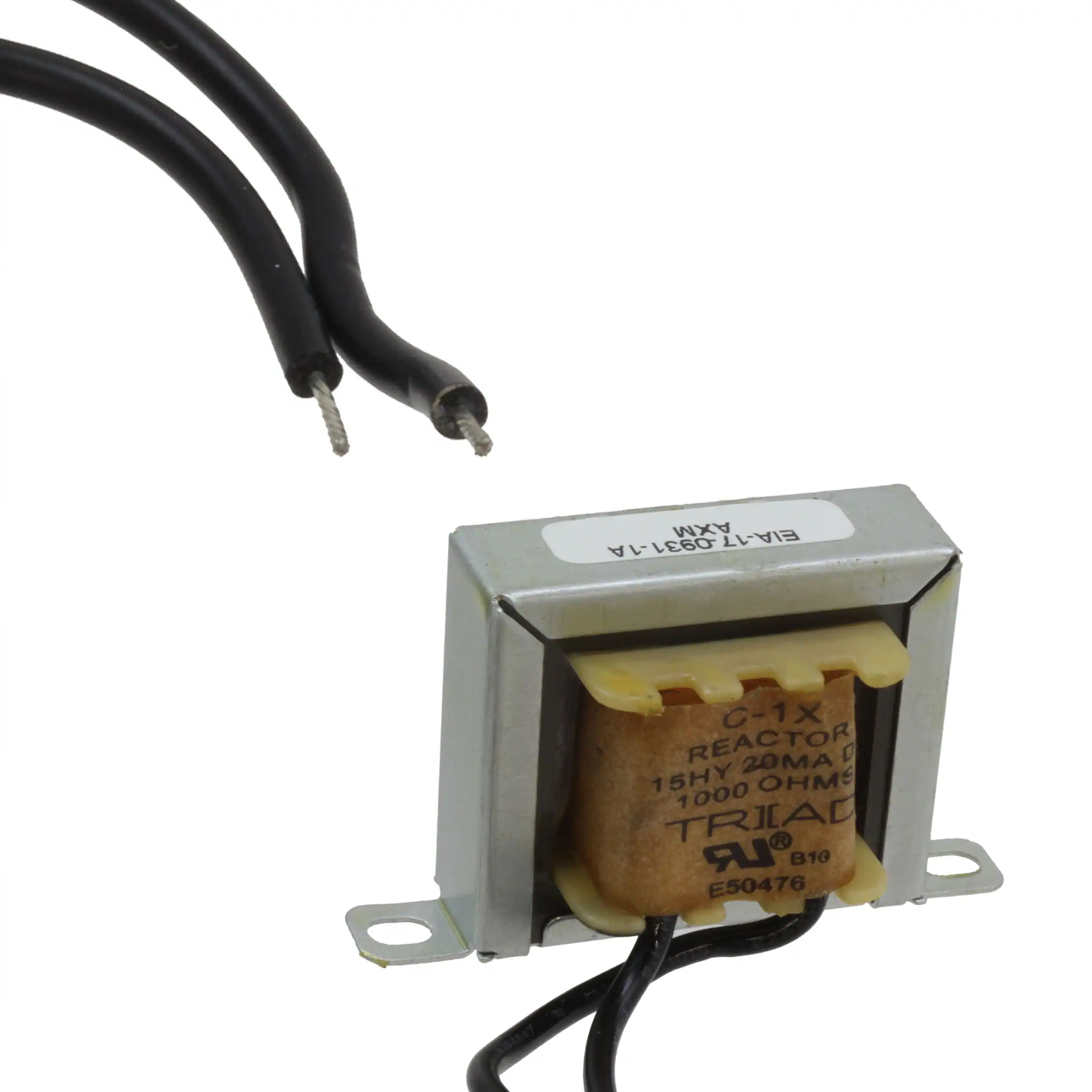

C-1XFIXED IND 15H 20MA 1 KOHM CHASS |
2,831 |
|
Datasheet |
C | Nonstandard | Bulk | Active | Wirewound | - | 15 H | -20%, +50% | 20 mA | - | Unshielded | 1kOhm | - | - | - | -40°C ~ 85°C | 120 Hz | - | Chassis Mount | - | 2.062" L x 1.250" W (52.37mm x 31.75mm) | 1.187" (30.15mm) |
|

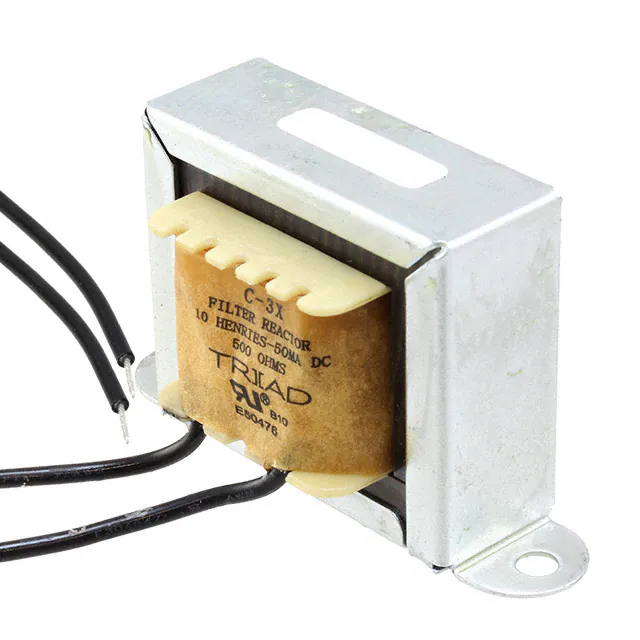

C-3XFIXED IND 10H 50MA 500 OHM CHASS |
4,304 |
|
Datasheet |
C | Nonstandard | Bulk | Active | Wirewound | - | 10 H | -20%, +50% | 50 mA | - | Unshielded | 500Ohm | - | - | - | -40°C ~ 85°C | 120 Hz | - | Chassis Mount | - | 2.812" L x 1.500" W (71.42mm x 38.10mm) | 1.625" (41.28mm) |
|

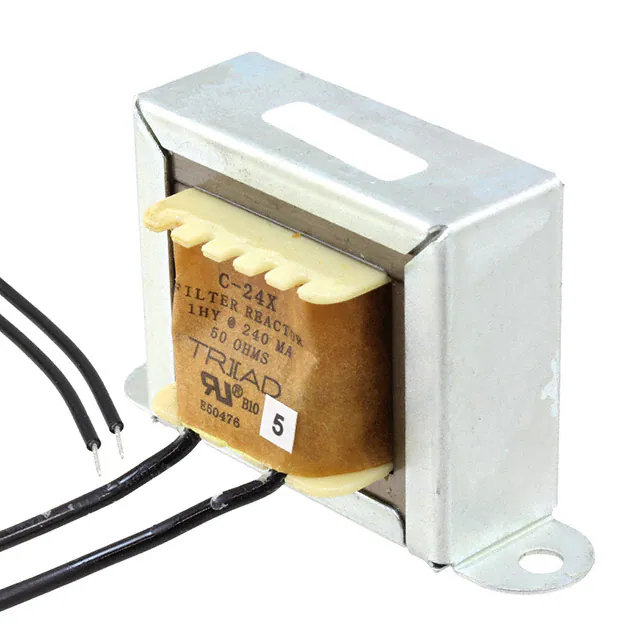

C-24XFIXED IND 1H 240MA 50 OHM CHASS |
3,425 |
|
Datasheet |
C | Nonstandard | Bulk | Active | Wirewound | - | 1 H | -20%, +50% | 240 mA | - | Unshielded | 50Ohm | - | - | - | -40°C ~ 85°C | 120 Hz | - | Chassis Mount | - | 2.812" L x 1.500" W (71.42mm x 38.10mm) | 1.625" (41.28mm) |
