Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHDM1008BCEV100M30FIXED IND 10UH 30A 2 MOHM TH |
2,766 |
|
Datasheet |
IHDM-1008BC-x0 | Vertical, 2 PC Pin | Tray | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±20% | 40 A | 68A | Unshielded | 2mOhm Max | - | 22MHz | - | -40°C ~ 180°C | 100 kHz | - | Through Hole | Vertical, 2 PC Pin | 1.005" L x 0.816" W (25.53mm x 20.73mm) | 0.896" (22.75mm) |
|
1140-122K-RCFIXED IND 1.2MH 3.4A 232 MOHM TH |
100 |
|
Datasheet |
1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±10% | 3.4 A | 5.9A | Unshielded | 232mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
IHDM1107BBEV3R0M20FG, IHDM-1107BB-20 3.0 20% |
1,523 |
|
Datasheet |
IHDM-1107BB-20 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Iron Powder | 3 µH | ±20% | 50 A | 192A | Unshielded | 0.97mOhm Max | - | 53MHz | - | -55°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.055" L x 0.705" W (26.80mm x 17.90mm) | 0.882" (22.40mm) |
|
|
1140-561K-RCFIXED IND 560UH 4.7A 125 MOHM TH |
100 |
|
Datasheet |
1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 4.7 A | 8.6A | Unshielded | 125mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
1140-102K-RCFIXED IND 1MH 3.6A 216 MOHM TH |
1,949 |
|
Datasheet |
1140 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 3.6 A | 6.5A | Unshielded | 216mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
1140-821K-RCFIXED IND 820UH 4.2A 154 MOHM TH |
1,972 |
|
Datasheet |
1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 4.2 A | 7.2A | Unshielded | 154mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
1140-153K-RCFIXED IND 15MH 900MA 3.39 OHM TH |
1,694 |
|
Datasheet |
1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 mH | ±10% | 900 mA | 1.7A | Unshielded | 3.39Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
1140-390K-RCFIXED IND 39UH 15.1A 12 MOHM TH |
2,190 |
|
Datasheet |
1140 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 15.1 A | 32.3A | Unshielded | 12mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
1140-562K-RCFIXED IND 5.6MH 1.3A 1.6 OHM TH |
4,095 |
|
Datasheet |
1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 5.6 mH | ±10% | 1.3 A | 2.8A | Unshielded | 1.6Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
MPX1D2213L150FIXED IND 15UH 27.5A 6.8MOHM SMD |
4,591 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 15 µH | ±20% | 27.5 A | 30A | Shielded | 6.8mOhm Max | - | 4MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|

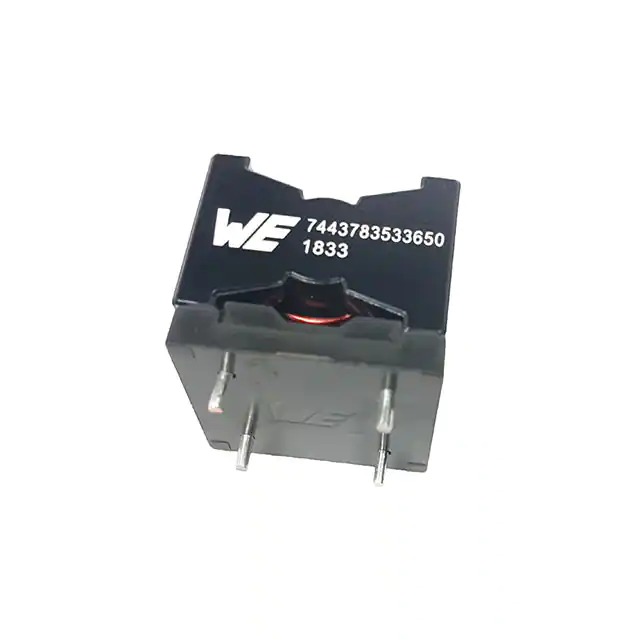

7443783533650FIXED IND 65UH 17.2A 14.44 MOHM |
4,841 |
|
Datasheet |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 65 µH | ±20% | 17.2 A | 26.6A | Shielded | 14.44mOhm Max | - | 4.28MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.417" L x 1.358" W (36.00mm x 34.50mm) | 1.378" (35.00mm) |
|
DEN-25-0001FIXED IND 16A 27 MOHM CHAS MNT |
2,149 |
|
Datasheet |
DEN | Nonstandard | Bulk | Active | - | - | - | - | 16 A | - | - | 27mOhm | - | - | - | -25°C ~ 100°C | - | - | Chassis Mount | - | 1.575" L x 1.575" W (40.00mm x 40.00mm) | - |
|
MPXV1D2213L150FIXED IND 15UH 27.5A 6.8MOHM SMD |
4,468 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 15 µH | ±20% | 27.5 A | 30A | Shielded | 6.8mOhm Max | - | 4MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
158SAFIXED IND 1H 240MA 41 OHM CHASS |
2,100 |
|
Datasheet |
158 | Nonstandard | Bulk | Active | - | - | 1 H | ±15% | 240 mA | - | Unshielded | 41Ohm | - | - | - | - | - | - | Chassis Mount | - | 3.250" L x 2.000" W (82.55mm x 50.80mm) | 2.000" (50.80mm) |
|
760800101FIXED IND 255UH 11.2A 0.036OHM |
1,178 |
|
Datasheet |
WE-TORPFC | Nonstandard | Tray | Active | Toroidal | - | 255 µH | ±20% | 11.2 A | 10.5A | Unshielded | 36mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | Flat Wire | Bolt Mount | - | 2.362" Dia (60.00mm) | 1.339" (34.00mm) |
|

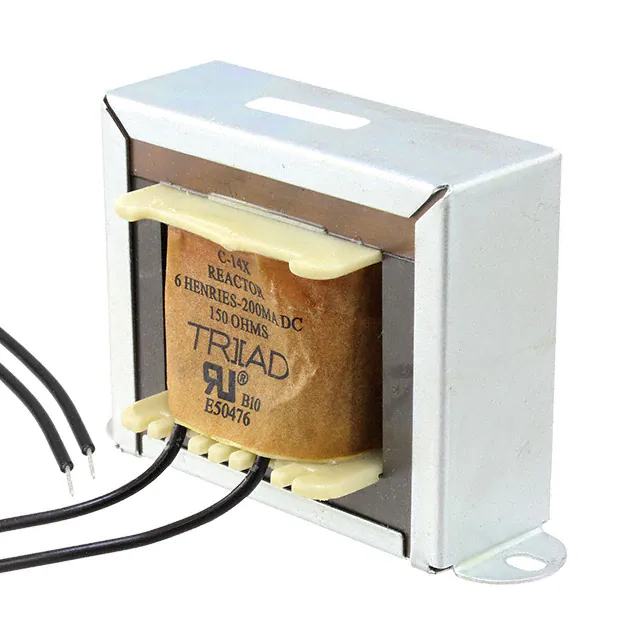

C-14XFIXED IND 6H 200MA 150 OHM CHASS |
4,298 |
|
Datasheet |
C | Nonstandard | Bulk | Active | Wirewound | - | 6 H | -20%, +50% | 200 mA | - | Unshielded | 150Ohm | - | - | - | -40°C ~ 85°C | 120 Hz | - | Chassis Mount | - | 4.000" L x 2.250" W (101.60mm x 57.15mm) | 2.598" (66.00mm) |
|
|
760801401FIXED IND 118UH 13.9A 0.022OHM |
1,132 |
|
Datasheet |
WE-TORPFC | Nonstandard | Tray | Active | Toroidal | - | 118 µH | ±20% | 13.9 A | 23A | Unshielded | 22mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | Flat Wire | Bolt Mount | - | 2.087" Dia (53.00mm) | 1.102" (28.00mm) |
|
159ZBFIXED IND 320MH 600MA 7.8 OHM |
4,687 |
|
Datasheet |
159 | Nonstandard | Bulk | Active | - | - | 320 mH | ±15% | 600 mA | - | Unshielded | 7.8Ohm | - | - | - | - | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | 2.630" (66.80mm) |
|

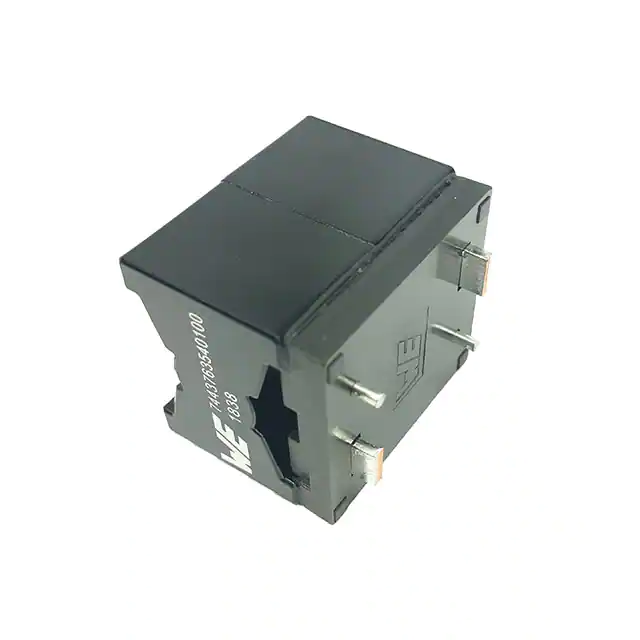

7443763540100FIXED IND 10UH 56.7A 1.2 MOHM TH |
1,725 |
|
Datasheet |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 10 µH | ±20% | 56.7 A | 62A | Shielded | 1.2mOhm Max | - | 14MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.614" L x 1.417" W (41.00mm x 36.00mm) | 1.378" (35.00mm) |
|

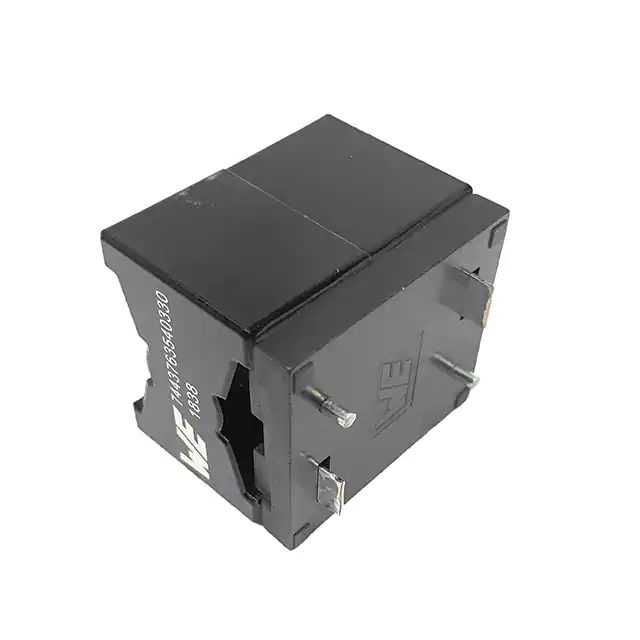

7443763540330FIXED IND 33UH 32A 6.38 MOHM TH |
4,428 |
|
Datasheet |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 33 µH | ±20% | 32 A | 38.9A | Shielded | 6.38mOhm Max | - | 7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.614" L x 1.417" W (41.00mm x 36.00mm) | 1.378" (35.00mm) |
