Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
LQG15WZR13J02DFIXED IND 130NH 110MA 2.9OHM SMD |
650 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 130 nH | ±5% | 110 mA | - | Unshielded | 2.9Ohm Max | 22 @ 250MHz | 800MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
ILSB0805ER4R7KFIXED IND 4.7UH 30MA 1 OHM SMD |
370 |
|
Datasheet |
ILSB-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±10% | 30 mA | - | Shielded | 1Ohm Max | 45 @ 10MHz | 41MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) |
|
|
LQG15WZ13NH02DFIXED IND 13NH 400MA 0.26OHM SMD |
282 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 13 nH | ±3% | 400 mA | - | Unshielded | 260mOhm Max | - | 2.8GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.51mm) |
|
|
LQG15WH1N5C02DFIXED IND 1.5NH 1A 0.04OHM SMD |
758 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 1.5 nH | ±0.2nH | 1 A | - | Unshielded | 40mOhm Max | - | 11GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.51mm) |
|

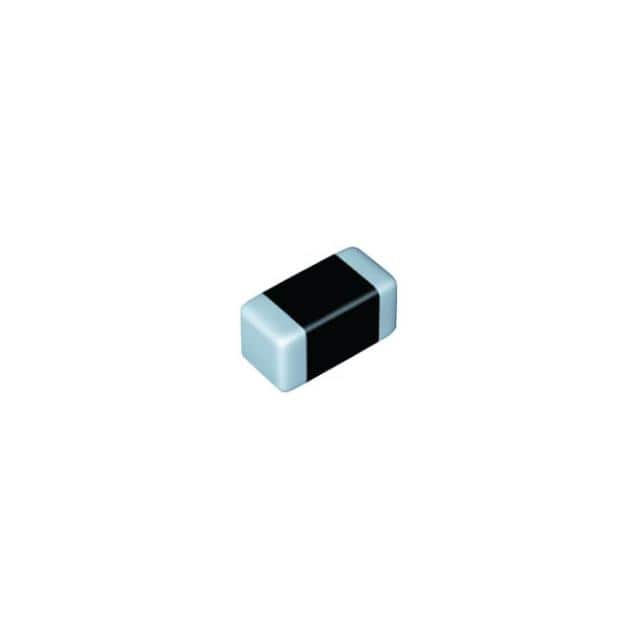

LSQBA201212T100KRFIXED IND 10UH 120MA 0.5 OHM SMD |
295 |
|
Datasheet |
LSQB | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±10% | 120 mA | - | Unshielded | 500mOhm | - | 32MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
.jpg)
|
MLF1608E120KTD25FIXED IND 12UH 10MA 1.8 OHM SMD |
290 |
|
Datasheet |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 12 µH | ±10% | 10 mA | - | Shielded | 1.8Ohm Max | 30 @ 2MHz | 25MHz | AEC-Q200 | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
-2,70mm.jpg)
|
LBC3225T150MRFIXED IND 15UH 420MA 195MOHM SMD |
1,915 |
|
Datasheet |
LB, C Type | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 420 mA | - | Unshielded | 195mOhm | - | 20MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
|
LBC3225T330MRFIXED IND 33UH 300MA 410MOHM SMD |
1,900 |
|
Datasheet |
LB, C Type | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 300 mA | - | Unshielded | 410mOhm | - | 13MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
|
LBC3225T101MRFIXED IND 100UH 150MA 1.4OHM SMD |
1,053 |
|
Datasheet |
LB, C Type | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 150 mA | - | Unshielded | 1.4Ohm | - | 6MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
|
LBC3225T3R3MRFIXED IND 3.3UH 820MA 95MOHM SMD |
1,000 |
|
Datasheet |
LB, C Type | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 820 mA | - | Unshielded | 95mOhm | - | 160MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
LSQCA322525T101MRFIXED IND 100UH 150MA 1.4OHM SMD |
934 |
|
Datasheet |
LSQC | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 150 mA | - | Unshielded | 1.4Ohm | - | 6MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
-1,80mm.jpg)
|
LBM2016T220JFIXED IND 22UH 140MA 2.8 OHM SMD |
705 |
|
Datasheet |
LB, M Type | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±5% | 140 mA | - | Unshielded | 2.8Ohm | 25 @ 2.52MHz | 17MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
NLV32T-R68J-PFFIXED IND 680NH 450MA 600MOHM SM |
470 |
|
Datasheet |
NLV-PF | 1210 (3225 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 680 nH | ±5% | 450 mA | - | Unshielded | 600mOhm Max | 30 @ 25.2MHz | 160MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
LQG15HH56NH02DFIXED IND 56NH 250MA 0.82OHM SMD |
400 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 56 nH | ±3% | 250 mA | - | Unshielded | 820mOhm Max | 8 @ 100MHz | 800MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LBM2016TR18JFIXED IND 180NH 560MA 150MOHM SM |
363 |
|
Datasheet |
LB, M Type | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 nH | ±5% | 560 mA | - | Unshielded | 150mOhm | 30 @ 25.2MHz | 500MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
|
LBM2016T390JFIXED IND 39UH 120MA 3.9 OHM SMD |
179 |
|
Datasheet |
LB, M Type | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±5% | 120 mA | - | Unshielded | 3.9Ohm | 20 @ 2.52MHz | 14MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LQM18DZ220M70LFIXED IND 22UH 200MA INFOTMT |
132 |
|
Datasheet |
LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 22 µH | ±20% | 200 mA | 50mA | Shielded | 3.12Ohm Max | - | 15MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
VLS4012CX-101M-1FIXED IND 100UH 430MA 2.938 OHM |
1,701 |
|
Datasheet |
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 430 mA | 300mA | Shielded | 2.938Ohm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
LQM18DH6R8M70LFIXED IND 6.8UH 330MA 960MOHM SM |
965 |
|
Datasheet |
LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 6.8 µH | ±20% | 330 mA | - | Shielded | 960mOhm Max | - | 40MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
BWCS0023171556NJ00INDUCTOR RF |
935 |
|
Datasheet |
BWCS | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 56 nH | ±5% | 500 mA | - | Unshielded | 340mOhm Max | 60 @ 500MHz | 1.55GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | - | 0.093" L x 0.068" W (2.35mm x 1.73mm) | 0.060" (1.52mm) |
