Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RLB0608-5R6KLFIXED IND 5.6UH 640MA 350MOHM TH |
662 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±10% | 640 mA | - | Unshielded | 350mOhm Max | 60 @ 7.96MHz | 35MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|
7447669147FIXED IND 47UH 425MA 1.54OHM SMD |
500 |
|
Datasheet |
WE-GFH | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 47 µH | ±10% | 425 mA | - | Unshielded | 1.9Ohm Max | 30 @ 2.52MHz | 14MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
IHHP0805ZHER1R0M01IHHP-0805ZH-01 1 20% ER E3 |
361 |
|
Datasheet |
IHHP-0805ZH-01 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Iron Powder | 1 µH | ±20% | 3.2 A | 3.3A | Shielded | 55mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
|
RLB0608-220KLFIXED IND 22UH 460MA 650 MOHM TH |
309 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 460 mA | - | Unshielded | 650mOhm Max | 60 @ 2.52MHz | 10MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|
VLS4020CX-4R7M-HINDUCTORS FOR POWER CIRCUITS, AU |
1,934 |
|
Datasheet |
VLS-CX-H | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 2.24 A | 2.13A | Shielded | 108mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
VLS4020CX-220M-HINDUCTORS FOR POWER CIRCUITS, AU |
961 |
|
Datasheet |
VLS-CX-H | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 1.04 A | 1.17A | Shielded | 432mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
VLS4020CX-100M-HINDUCTORS FOR POWER CIRCUITS, AU |
1,840 |
|
Datasheet |
VLS-CX-H | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 1.52 A | 1.62A | Shielded | 240mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
ASPI-4030S-101M-TFIXED IND 100UH 450MA 1.15OHM SM |
731 |
|
Datasheet |
ASPI-4030S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 100 µH | ±20% | 450 mA | 600mA | Shielded | 1.15Ohm | - | 5.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
744765047AFIXED IND 4.7NH 640MA 130MOHM SM |
618 |
|
Datasheet |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 4.7 nH | ±5% | 640 mA | - | Unshielded | 130mOhm Max | 15 @ 250MHz | 4.775GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
ASPI-4030S-8R2M-TFIXED IND 8.2UH 1.6A 90 MOHM SMD |
127 |
|
Datasheet |
ASPI-4030S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 8.2 µH | ±20% | 1.6 A | 2.1A | Shielded | 90mOhm | - | 26MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
VLS4012ET-100MFIXED IND 10UH 890MA 228MOHM SMD |
1,912 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 890 mA | 890mA | Shielded | 228mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
BWQC00322520470K00INDUCTOR RF |
293 |
|
Datasheet |
BWQC | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 170 mA | - | Unshielded | 1.3Ohm Max | - | 15MHz | - | -25°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
ASPI-0628-3R9M-TFIXED IND 3.9UH 3A 31 MOHM SMD |
1,810 |
|
Datasheet |
ASPI-0628 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±20% | 3 A | 2.7A | Shielded | 31mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 0628 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|

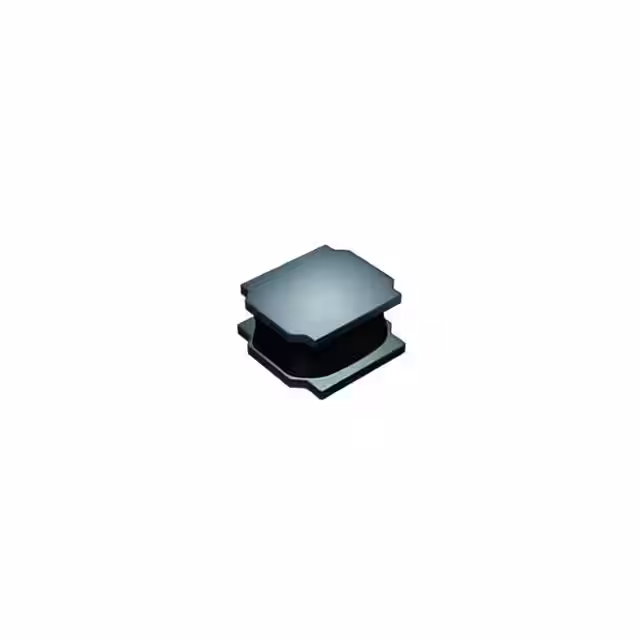

LSXNH8080YKL100MJGFIXED IND 10UH 3.1A 44.2MOHM SMD |
404 |
|
- |
LSXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 3.1 A | 3.8A | Shielded | 44.2mOhm Max | - | 22MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
LQH43CN150K03LFIXED IND 15UH 570MA 320MOHM SMD |
282 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 570 mA | - | Unshielded | 320mOhm Max | - | 20MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
WPN201610H1R0MTFIXED IND 1UH 2.05A 90 MOHM SMD |
274 |
|
Datasheet |
WPN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 2.05 A | 3.85A | Shielded | 90mOhm Max | - | 70MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
WPN252010UR47MTFIXED IND 470NH 4A 30 MOHM SMD |
251 |
|
Datasheet |
WPN | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 4 A | 5.8A | Shielded | 30mOhm Max | - | 92MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
BWVS00606045150M00FIXED IND 15UH 2.2A 80 MOHM SMD |
1,836 |
|
Datasheet |
BWVS | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 2.2 A | 3.4A | Shielded | 80mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|
LQH5BPN1R5NT0LFIXED IND 1.5UH 3A 24 MOHM SMD |
1,443 |
|
Datasheet |
LQH5 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 3 A | - | Shielded | 24mOhm | - | 70MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|
|
LQH5BPN1R0NT0LFIXED IND 1UH 3.1A 19 MOHM SMD |
808 |
|
Datasheet |
LQH5 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 3.1 A | 5.8A | Shielded | 19mOhm | - | 90MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2020 (5050 Metric) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
