Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAXL001FIXED IND 100UH 1.75A 200MOHM TH |
1,786 |
|
Datasheet |
- | Radial | Bulk | Obsolete | Toroidal | Iron Powder | 100 µH | ±15% | 1.75 A | 1.75A | Unshielded | 200mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.650" Dia x 0.330" W (16.50mm x 8.40mm) | - |
|

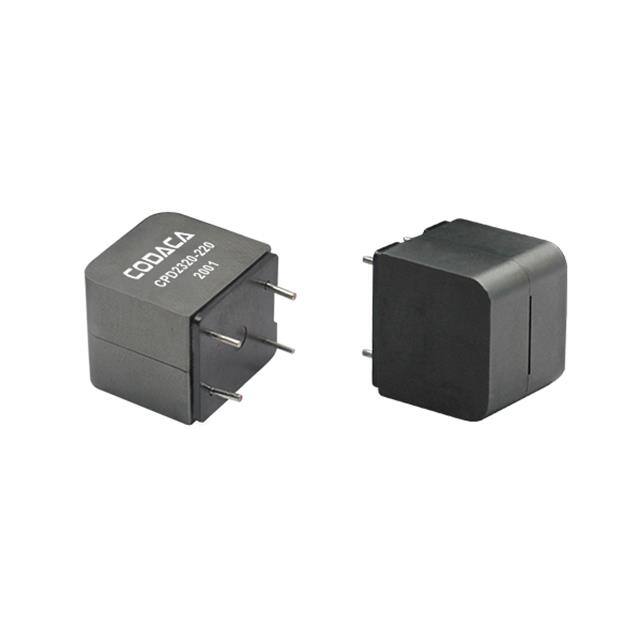

CPD2320-220MTHT CLASS D IND FOR DIGITAL AMP |
326 |
|
Datasheet |
CPD2320 | Nonstandard | Tray | Active | Wirewound | Ferrite | 22 µH | ±20% | 14 A | 21A | Shielded | 9.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low Loss, Soft Saturation | Through Hole | Radial - 4 Leads | 0.906" L x 0.787" W (23.00mm x 20.00mm) | 0.906" (23.00mm) |
|
|
CPD2315-330MCLASS D INDUCTOR FOR DIGITAL AMP |
120 |
|
Datasheet |
CPD2315 | Vertical, 3 PC Pin | Tray | Active | Wirewound | Ferrite | 33 µH | ±20% | 13 A | 12A | Shielded | 8.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Vertical, 3 PC Pin | 0.906" L x 0.571" W (23.00mm x 14.50mm) | 0.906" (23.00mm) |
|

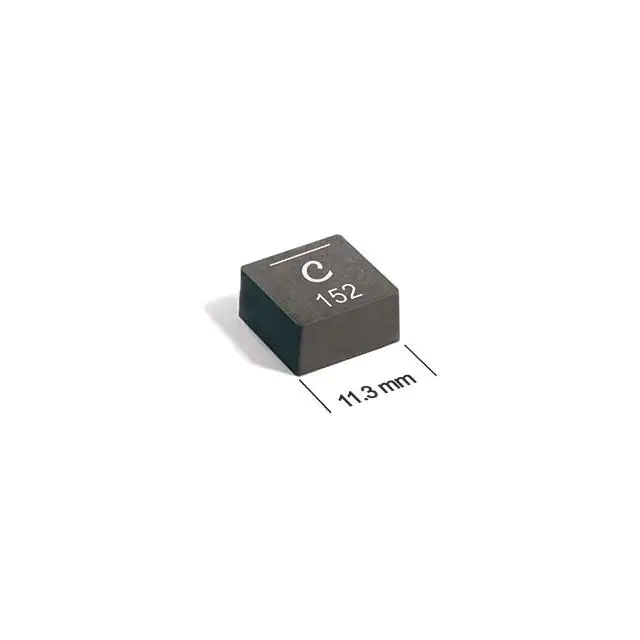

XAL1060-681MECPOWER INDUCTOR, SHIELDED, 20% TO |
55,777 |
|
Datasheet |
XAL1060 | Nonstandard | Strip | Active | Molded | Metal Composite | 680 nH | ±20% | 22.4 A | 52A | Shielded | 1.5mOhm Max | - | 51MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.445" L x 0.394" W (11.30mm x 10.00mm) | 0.236" (6.00mm) |
|
|
XAL1060-152MECPOWER INDUCTOR, SHIELDED, 20% TO |
4,144 |
|
Datasheet |
XAL1060 | Nonstandard | Strip | Active | Molded | Metal Composite | 1.5 µH | ±20% | 24.4 A | 36A | Shielded | 3.3mOhm Max | - | 36MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.445" L x 0.394" W (11.30mm x 10.00mm) | 0.236" (6.00mm) |
|
|
XAL1060-122MECPOWER INDUCTOR, SHIELDED, 20% TO |
4,052 |
|
Datasheet |
XAL1060 | Nonstandard | Strip | Active | Molded | Metal Composite | 1.2 µH | ±20% | 17.9 A | 43A | Shielded | 2.75mOhm Max | - | 44MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.445" L x 0.394" W (11.30mm x 10.00mm) | 0.236" (6.00mm) |
|
|
XAL1060-401MECPOWER INDUCTOR, SHIELDED, 20% TO |
3,214 |
|
Datasheet |
XAL1060 | Nonstandard | Strip | Active | Molded | Metal Composite | 400 nH | ±20% | 25.9 A | 82A | Shielded | 0.88mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.445" L x 0.394" W (11.30mm x 10.00mm) | 0.236" (6.00mm) |
|
|
XGL1060-332MECFIXED IND 3.3UH 22A 5.7MOHM SM |
1,305 |
|
Datasheet |
XGL1060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 3.3 µH | ±20% | 22 A | 26A | Shielded | 5.7mOhm Max | - | 21MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.445" L x 0.394" W (11.30mm x 10.00mm) | 0.236" (6.00mm) |
|
|
XAL1060-181MECPOWER INDUCTOR, SHIELDED, 20% TO |
1,194 |
|
Datasheet |
XAL1060 | Nonstandard | Strip | Active | Molded | Metal Composite | 180 nH | ±20% | 28.8 A | 120A | Shielded | 0.55mOhm Max | - | 68MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.445" L x 0.394" W (11.30mm x 10.00mm) | 0.236" (6.00mm) |
|
|
XAL1060-332MECPOWER INDUCTOR, SHIELDED, 20% TO |
993 |
|
Datasheet |
XAL1060 | Nonstandard | Strip | Active | Molded | Metal Composite | 3.3 µH | ±20% | 11.2 A | 26A | Shielded | 7.92mOhm Max | - | 19MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.445" L x 0.394" W (11.30mm x 10.00mm) | 0.236" (6.00mm) |
|
|
XGL1060-472MECFIXED IND 4.7UH 18.2A 8.5MOHM SM |
952 |
|
Datasheet |
XGL1060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 4.7 µH | ±20% | 18.2 A | 22.5A | Shielded | 8.5mOhm Max | - | 18MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.445" L x 0.394" W (11.30mm x 10.00mm) | 0.236" (6.00mm) |
|
|
XGL1060-682MECFIXED IND 6.8UH 14.8A 12.5MOHM |
889 |
|
Datasheet |
XGL1060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 6.8 µH | ±20% | 14.8 A | 18.4A | Shielded | 12.5mOhm Max | - | 14MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.445" L x 0.394" W (11.30mm x 10.00mm) | 0.236" (6.00mm) |
|
|
XGL1060-103MECFIXED IND 10UH 12.1A 18MOHM SM |
875 |
|
Datasheet |
XGL1060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 10 µH | ±20% | 12.1 A | 15.5A | Shielded | 18mOhm Max | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.445" L x 0.394" W (11.30mm x 10.00mm) | 0.236" (6.00mm) |
|
|
XAL1060-222MECPOWER INDUCTOR, SHIELDED, 20% TO |
792 |
|
Datasheet |
XAL1060 | Nonstandard | Strip | Active | Molded | Metal Composite | 2.2 µH | ±20% | 20 A | 32A | Shielded | 4.95mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.445" L x 0.394" W (11.30mm x 10.00mm) | 0.236" (6.00mm) |
|
|
XGL1060-102MECFIXED IND 1UH 39.9A 2MOHM SM |
781 |
|
Datasheet |
XGL1060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±20% | 39.9 A | 48A | Shielded | 2mOhm Max | - | 39MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.445" L x 0.394" W (11.30mm x 10.00mm) | 0.236" (6.00mm) |
|
|
XAL1060-472MECPOWER INDUCTOR, SHIELDED, 20% TO |
693 |
|
Datasheet |
XAL1060 | Nonstandard | Strip | Active | Molded | Metal Composite | 4.7 µH | ±20% | 8.5 A | 25A | Shielded | 10.72mOhm Max | - | 16MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.445" L x 0.394" W (11.30mm x 10.00mm) | 0.236" (6.00mm) |
|
|
XGL1060-562MECFIXED IND 5.6UH 16.4A 10.1MOHM |
574 |
|
Datasheet |
XGL1060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 5.6 µH | ±20% | 16.4 A | 19.7A | Shielded | 10.1mOhm Max | - | 16MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.445" L x 0.394" W (11.30mm x 10.00mm) | 0.236" (6.00mm) |
|
|
XGL1060-152MECFIXED IND 1.5UH 31.3A 2.8MOHM SM |
533 |
|
Datasheet |
XGL1060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.5 µH | ±20% | 31.3 A | 40A | Shielded | 2.8mOhm Max | - | 32MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.445" L x 0.394" W (11.30mm x 10.00mm) | 0.236" (6.00mm) |
|
|
XGL1060-822MECFIXED IND 8.2UH 13.3A 15MOHM SM |
270 |
|
Datasheet |
XGL1060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 8.2 µH | ±20% | 13.3 A | 16.9A | Shielded | 15mOhm Max | - | 13MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.445" L x 0.394" W (11.30mm x 10.00mm) | 0.236" (6.00mm) |
|
MGV1707101M-10FIXED IND 100UH 5.3A 118MOHM SMD |
508 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 µH | ±20% | 5.3 A | 12A | Shielded | 118mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.276" (7.00mm) |
