Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HA65A-25156R8LFFIXED IND 6.8UH 2.6 MOHM SMD |
135 |
|
Datasheet |
HA65A | Nonstandard | Tray | Discontinued at Digi-Key | Wirewound | - | 6.8 µH | ±10% | - | 46A | Unshielded | 2.6mOhm Max | - | 17MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.043" L x 1.043" W (26.50mm x 26.50mm) | 0.610" (15.50mm) |
|
LGJ12565TS-4R2N5R5-HFIXED IND 4.2UH 5.5A 11.2MOHM SM |
485 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.2 µH | ±30% | 5.5 A | 7.3A | Shielded | 11.2mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
LGJ12565TS-152MR37-HFIXED IND 1.5MH 400MA 2.8OHM SMD |
481 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 mH | ±20% | 400 mA | 370mA | Shielded | 2.8Ohm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
LGJ12565TS-102MR45-HFIXED IND 1MH 500MA 1.68 OHM SMD |
465 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 500 mA | 450mA | Shielded | 1.68Ohm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
LGJ12565TS-331MR87-HFIXED IND 330UH 950MA 494MOHM SM |
462 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 950 mA | 870mA | Shielded | 494mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
LGJ12565TS-220M3R5-HFIXED IND 22UH 3.8A 31.6MOHM SMD |
353 |
|
Datasheet |
LGJ | Nonstandard | Cut Tape (CT) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.8 A | 3.5A | Shielded | 31.6mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
LGJ12565TS-470M2R4-HFIXED IND 47UH 2.8A 57.8MOHM SMD |
289 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.8 A | 2.4A | Shielded | 57.8mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
LGJ12565TS-471MR70-HFIXED IND 470UH 750MA 770MOHM SM |
269 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 750 mA | 700mA | Shielded | 770mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
LGJ12565TS-100M4R8-HFIXED IND 10UH 4.8A 20.2MOHM SMD |
252 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4.8 A | 5A | Shielded | 20.2mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
LGJ12565TS-221M1R0-HFIXED IND 220UH 1.2A 273MOHM SMD |
199 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.2 A | 1A | Shielded | 273mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
LGJ12565TS-680M2R0-HFIXED IND 68UH 2.4A 78.7MOHM SMD |
197 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2.4 A | 2A | Shielded | 78.7mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
LGJ12565TS-330M2R8-HFIXED IND 33UH 3.4A 40.6MOHM SMD |
164 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3.4 A | 2.8A | Shielded | 40.6mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
LGJ12565TS-2R0N6R2-HFIXED IND 2UH 6.2A 8 MOHM SMD |
148 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2 µH | ±30% | 6.2 A | 10A | Shielded | 8mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
IH03BQ270KFIXED IND 27UH 7A 35 MOHM TH |
144 |
|
Datasheet |
IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 7 A | 12A | Unshielded | 35mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.800" Dia x 0.875" L (20.32mm x 22.23mm) | - |
|
|
IH03EB500KFIXED IND 50UH 5.6A 50 MOHM TH |
146 |
|
Datasheet |
IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | 50 µH | ±10% | 5.6 A | 8A | Unshielded | 50mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.800" Dia x 0.875" L (20.32mm x 22.23mm) | - |
|

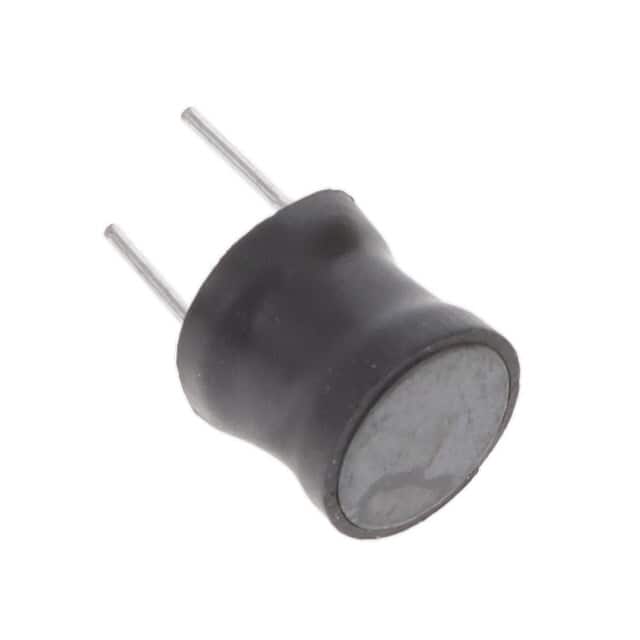

4554-390KFIXED IND 39UH 1.4A 160 MOHM TH |
445 |
|
Datasheet |
4554 | Radial, Vertical Cylinder | Bulk | Last Time Buy | - | Ferrite | 39 µH | ±10% | 1.4 A | - | Unshielded | 160mOhm Max | 30 @ 2.52MHz | 6.9MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
1641R-824KFIXED IND 820UH 80MA 13 OHM TH |
210 |
|
Datasheet |
1641R | Axial | Bulk | Active | Molded | Ferrite | 820 µH | ±10% | 80 mA | 45mA | Shielded | 13Ohm Max | 60 @ 790kHz | 4.2MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
VLM13580T-2R2M-D1FIXED IND 2.2UH 10.5A 3.9MOHM SM |
800 |
|
Datasheet |
VLM | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 10.5 A | 20A | Shielded | 3.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.480" W (13.50mm x 12.20mm) | 0.327" (8.30mm) |
|

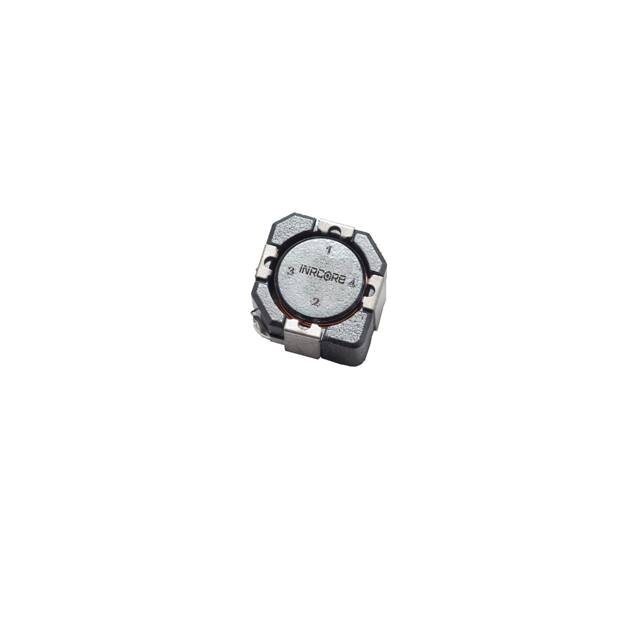

PL8909TFIXED IND 12UH 4.5A 29 MOHM SMD |
400 |
|
Datasheet |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±20% | 4.5 A | 5.1A | Shielded | 29mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
CTRL5480F-5-274K27000UH RADIAL FIXED INDUCTR |
287 |
|
- |
CTRL5480F-5 | Radial, Vertical Cylinder | Bulk | Active | - | - | 270 mH | ±10% | 60 mA | 39mA | Unshielded | 174Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.626" Dia (15.90mm) | 0.701" (17.80mm) |
