Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8532R-21LFIXED IND 47UH 1.84A 104MOHM SMD |
401 |
|
Datasheet |
8532R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±15% | 1.84 A | 930mA | Unshielded | 104mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.860" L x 0.320" W (21.84mm x 8.12mm) | 0.286" (7.26mm) |
|
SER2918H-223KLPOWER INDUCTOR, HIGH CURRENT, 10 |
7,486 |
|
Datasheet |
SER2900 | Nonstandard | Strip | Active | - | Ferrite | 22 µH | ±10% | 20 A | 12A | Shielded | 2.86mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 500 kHz | - | Surface Mount | - | 1.100" L x 1.098" W (27.94mm x 27.90mm) | 0.700" (17.78mm) |
|
|
SER2918H-103KLPOWER INDUCTOR, HIGH CURRENT, 10 |
5,351 |
|
Datasheet |
SER2900 | Nonstandard | Strip | Active | - | Ferrite | 10 µH | ±10% | 20 A | 28A | Shielded | 2.86mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 500 kHz | - | Surface Mount | - | 1.100" L x 1.098" W (27.94mm x 27.90mm) | 0.700" (17.78mm) |
|
|
SER2918H-153KLPOWER INDUCTOR, HIGH CURRENT, 10 |
3,624 |
|
Datasheet |
SER2900 | Nonstandard | Strip | Active | - | Ferrite | 15 µH | ±10% | 20 A | 18A | Shielded | 2.86mOhm Max | - | 16MHz | AEC-Q200 | -40°C ~ 125°C | 500 kHz | - | Surface Mount | - | 1.100" L x 1.098" W (27.94mm x 27.90mm) | 0.700" (17.78mm) |
|
|
SER2918H-333KLPOWER INDUCTOR, HIGH CURRENT, 10 |
2,278 |
|
Datasheet |
SER2900 | Nonstandard | Strip | Active | - | Ferrite | 33 µH | ±10% | 20 A | 7A | Shielded | 2.86mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 500 kHz | - | Surface Mount | - | 1.100" L x 1.098" W (27.94mm x 27.90mm) | 0.700" (17.78mm) |
|
|
SER2918H-682KLPOWER INDUCTOR, HIGH CURRENT, 10 |
1,145 |
|
Datasheet |
SER2900 | Nonstandard | Strip | Active | - | Ferrite | 6.8 µH | ±10% | 20 A | 42A | Shielded | 2.86mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 500 kHz | - | Surface Mount | - | 1.100" L x 1.098" W (27.94mm x 27.90mm) | 0.700" (17.78mm) |
|
|
SER2918H-472KLPOWER INDUCTOR, HIGH CURRENT, 10 |
748 |
|
Datasheet |
SER2900 | Nonstandard | Strip | Active | - | Ferrite | 4.7 µH | ±10% | 20 A | 59A | Shielded | 2.86mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 500 kHz | - | Surface Mount | - | 1.100" L x 1.098" W (27.94mm x 27.90mm) | 0.700" (17.78mm) |
|
|
SER2918H-332KLPOWER INDUCTOR, HIGH CURRENT, 10 |
245 |
|
Datasheet |
SER2900 | Nonstandard | Strip | Active | - | Ferrite | 3.3 µH | ±10% | 20 A | 91A | Shielded | 2.86mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 125°C | 500 kHz | - | Surface Mount | - | 1.100" L x 1.098" W (27.94mm x 27.90mm) | 0.700" (17.78mm) |
|

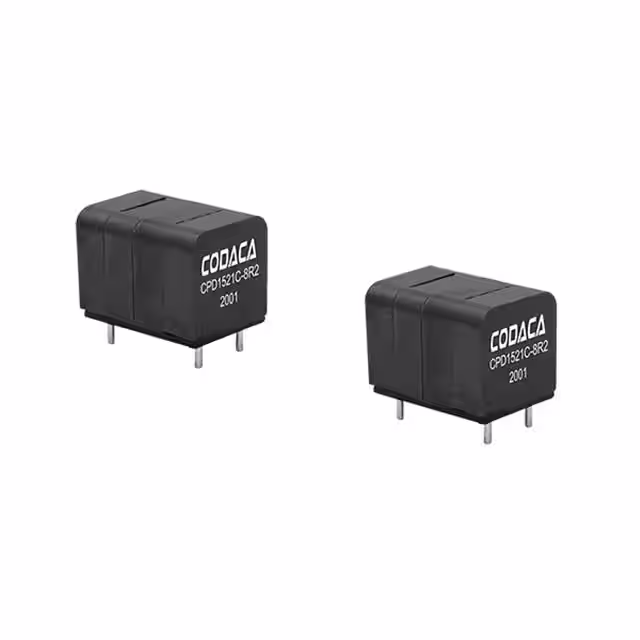

CPD1521C-220MCLASS D INDUCTOR FOR DIGITAL AMP |
231 |
|
Datasheet |
CPD1521C | Nonstandard | Tray | Active | Wirewound | Ferrite | 22 µH | ±20% | 8 A | 10A | Shielded | 16mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low Loss, Soft Saturation | Through Hole | Radial - 4 Leads | 0.846" L x 0.591" W (21.50mm x 15.00mm) | 0.618" (15.70mm) |
|
|
CPD1521C-100MCLASS D INDUCTOR FOR DIGITAL AMP |
144 |
|
Datasheet |
CPD1521C | Nonstandard | Tray | Active | Wirewound | Ferrite | 10 µH | ±20% | 11 A | 15A | Shielded | 8.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low Loss, Soft Saturation | Through Hole | Radial - 4 Leads | 0.846" L x 0.591" W (21.50mm x 15.00mm) | 0.618" (15.70mm) |
|
FIT106-3-BFIXED IND 154UH 5.7A 74 MOHM TH |
8,333 |
|
Datasheet |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 154 µH | - | 5.7 A | - | Unshielded | 74mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 1.300" L x 0.725" W (33.02mm x 18.42mm) | 1.400" (35.56mm) |
|
3615A101KFIXED IND 100UH 216MA 4.9OHM SMD |
4,846 |
|
Datasheet |
3615, Sigma Inductors | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 100 µH | ±10% | 216 mA | - | Unshielded | 4.9Ohm Max | 55 @ 2.5MHz | 8MHz | - | -55°C ~ 100°C | 2.5 MHz | - | Surface Mount | - | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.209" (5.30mm) |
|
1641-153KFIXED IND 15UH 325MA 800 MOHM TH |
1,149 |
|
Datasheet |
Military, MIL-PRF-M15305, MS75089 | Axial | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±10% | 325 mA | 250mA | Shielded | 800mOhm Max | 45 @ 2.5MHz | 49MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
1641-222KFIXED IND 2.2UH 665MA 190MOHM TH |
868 |
|
Datasheet |
Military, MIL-PRF-M15305, MS75088 | Axial | Tape & Reel (TR) | Active | - | Iron | 2.2 µH | ±10% | 665 mA | 665mA | Shielded | 190mOhm Max | 44 @ 7.9MHz | 100MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
1641-563KFIXED IND 56UH 194MA 2.23 OHM TH |
548 |
|
Datasheet |
Military, MIL-PRF-M15305, MS75089 | Axial | Tape & Reel (TR) | Active | - | Ferrite | 56 µH | ±10% | 194 mA | 160mA | Shielded | 2.23Ohm Max | 50 @ 2.5MHz | 25MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
1641-223KFIXED IND 22UH 295MA 960 MOHM TH |
138 |
|
Datasheet |
Military, MIL-PRF-M15305, MS75089 | Axial | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±10% | 295 mA | 220mA | Shielded | 960mOhm Max | 45 @ 2.5MHz | 41MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
SP1008R-472KFIXED IND 4.7UH 372MA 817MOHM SM |
500 |
|
Datasheet |
SP1008R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 372 mA | - | Shielded | 817mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.105" L x 0.095" W (2.66mm x 2.41mm) | 0.095" (2.41mm) |
|
|
1641R-273KFIXED IND 27UH 265MA 1.19 OHM TH |
982 |
|
Datasheet |
1641R | Axial | Bulk | Active | Molded | Ferrite | 27 µH | ±10% | 265 mA | 200mA | Shielded | 1.19Ohm Max | 45 @ 2.5MHz | 38MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
1641R-682KFIXED IND 6.8UH 285MA 1.02OHM TH |
813 |
|
Datasheet |
1641R | Axial | Bulk | Active | Molded | Iron | 6.8 µH | ±10% | 285 mA | 285mA | Shielded | 1.02Ohm Max | 50 @ 7.9MHz | 55MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
1641R-221KFIXED IND 220NH 1.12A 67 MOHM TH |
472 |
|
Datasheet |
1641R | Axial | Bulk | Active | Molded | Phenolic | 220 nH | ±10% | 1.12 A | 1.12A | Shielded | 67mOhm Max | 49 @ 25MHz | 250MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
