Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSCF2915H-2R2MCSMD HIGH CURRENT POWER INDUCTOR |
160 |
|
Datasheet |
CSCF2915H | Nonstandard | Tray | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 32 A | 100A | Shielded | 1.65mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Mn-Zn Ferrite Low Loss | Surface Mount | - | 1.098" L x 0.776" W (27.90mm x 19.70mm) | 0.606" (15.40mm) |
|
|
CSCF2915L-6R8MCSMD HIGH CURRENT POWER INDUCTOR |
160 |
|
Datasheet |
CSCF2915L | Nonstandard | Tray | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 34 A | 27.8A | Shielded | 1.36mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Mn-Zn Ferrite Low Loss | Surface Mount | 3-SMD | 1.098" L x 0.776" W (27.90mm x 19.70mm) | 0.606" (15.40mm) |
|

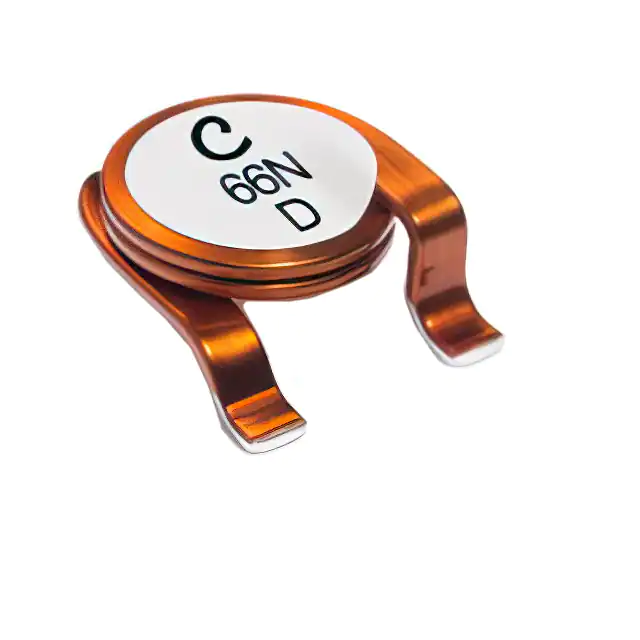

ZA9423-66NMEDFIXED INDUCTOR 0.066UH SMD |
277 |
|
Datasheet |
ZA9423 | 3-SMD, Gull Wing | Strip | Active | Wirewound | Air | 66 nH | ±20% | 27 A | - | Unshielded | 0.9mOhm Max | 404 @ 100MHz | 436MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 3-SMD | 0.583" L x 0.776" W (14.80mm x 19.70mm) | 0.279" (7.09mm) |
|
|
ZA9423-33NMEDFIXED INDUCTOR 0.033UH SMD |
257 |
|
Datasheet |
ZA9423 | 3-SMD, Gull Wing | Strip | Active | Wirewound | Air | 33 nH | ±20% | 30.2 A | - | Unshielded | 0.62mOhm Max | 456 @ 100MHz | 817MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 3-SMD | 0.583" L x 0.776" W (14.80mm x 19.70mm) | 0.250" (6.35mm) |
|
|
CSCF2918H-220MCSMD HIGH CURRENT POWER INDUCTOR |
134 |
|
Datasheet |
CSCF2918H | Nonstandard | Tray | Active | Wirewound | Ferrite | 22 µH | ±20% | 30 A | 15A | Shielded | 2.58mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Mn-Zn Ferrite Low Loss | Surface Mount | - | 1.102" L x 0.776" W (28.00mm x 19.70mm) | 0.728" (18.50mm) |
|
|
CSCF2918H-6R8MCSMD HIGH CURRENT POWER INDUCTOR |
113 |
|
Datasheet |
CSCF2918H | Nonstandard | Tray | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 30 A | 48A | Shielded | 2.58mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Mn-Zn Ferrite Low Loss | Surface Mount | - | 1.102" L x 0.776" W (28.00mm x 19.70mm) | 0.728" (18.50mm) |
|

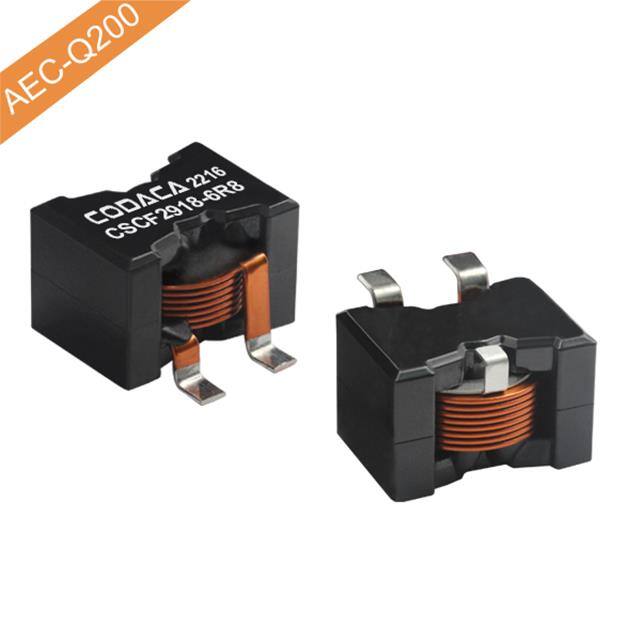

CSCF2918H-100MCSMD HIGH CURRENT POWER INDUCTOR |
378 |
|
Datasheet |
CSCF2918H | Nonstandard | Tray | Active | Wirewound | Ferrite | 10 µH | ±20% | 30 A | 33A | Shielded | 2.58mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Mn-Zn Ferrite Low Loss | Surface Mount | - | 1.102" L x 1.063" W (28.00mm x 27.00mm) | 0.728" (18.50mm) |
|
1008R-153JFIXED IND 15UH 194MA 4 OHM SMD |
1,000 |
|
Datasheet |
1008R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±5% | 194 mA | - | Unshielded | 4Ohm Max | 30 @ 2.5MHz | 21MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.105" L x 0.095" W (2.66mm x 2.41mm) | 0.095" (2.41mm) |
|
|
1008-153JFIXED IND 15UH 194MA 4 OHM SMD |
825 |
|
Datasheet |
1008 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±5% | 194 mA | - | Unshielded | 4Ohm Max | 30 @ 2.5MHz | 21MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.105" L x 0.095" W (2.66mm x 2.41mm) | 0.095" (2.41mm) |
|
|
1008R-820KFIXED IND 82NH 801MA 190MOHM SMD |
500 |
|
Datasheet |
1008R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 82 nH | ±10% | 801 mA | - | Unshielded | 190mOhm Max | 25 @ 50MHz | 915MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.105" L x 0.095" W (2.66mm x 2.41mm) | 0.095" (2.41mm) |
|
|
1008R-101KFIXED IND 100NH 728MA 230MOHM SM |
307 |
|
Datasheet |
1008R | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 100 nH | ±10% | 728 mA | - | Unshielded | 230mOhm Max | 15 @ 25MHz | 550MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.105" L x 0.095" W (2.66mm x 2.41mm) | 0.095" (2.41mm) |
|
|
1008R-680KFIXED IND 68NH 823MA 180MOHM SMD |
218 |
|
Datasheet |
1008R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 nH | ±10% | 823 mA | - | Unshielded | 180mOhm Max | 25 @ 50MHz | 1GHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.105" L x 0.095" W (2.66mm x 2.41mm) | 0.095" (2.41mm) |
|
PG1096.103NLTPULSE XFMR 9UH |
865 |
|
Datasheet |
PG1096NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 9 µH | ±20% | 24.5 A | 28A | Unshielded | 3.15mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 1.024" L x 1.024" W (26.00mm x 26.00mm) | 0.583" (14.80mm) |
|
|
PG1096.183NLTPULSE XFMR 16UH |
589 |
|
Datasheet |
PG1096NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 16 µH | ±20% | 18.5 A | 21A | Unshielded | 5mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 1.024" L x 1.024" W (26.00mm x 26.00mm) | 0.583" (14.80mm) |
|
|
PG1096.823NLTPULSE XFMR 73.5UH |
588 |
|
Datasheet |
PG1096NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 73.5 µH | ±20% | 8.5 A | 10A | Unshielded | 22mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 1.024" L x 1.024" W (26.00mm x 26.00mm) | 0.583" (14.80mm) |
|
|
PG1096.682NLTPULSE XFMR 6UH |
577 |
|
Datasheet |
PG1096NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6 µH | ±20% | 30 A | 35A | Unshielded | 2mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 1.024" L x 1.024" W (26.00mm x 26.00mm) | 0.583" (14.80mm) |
|
|
PG1096.683NLTPULSE XFMR 61UH |
527 |
|
Datasheet |
PG1096NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 61 µH | ±20% | 9.5 A | 11A | Unshielded | 15mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 1.024" L x 1.024" W (26.00mm x 26.00mm) | 0.583" (14.80mm) |
|
|
PG1096.473NLTPULSE XFMR 42.3UH |
521 |
|
Datasheet |
PG1096NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 42.3 µH | ±20% | 11 A | 13A | Unshielded | 12.5mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 1.024" L x 1.024" W (26.00mm x 26.00mm) | 0.583" (14.80mm) |
|
|
PG1096.252NLTPULSE XFMR 2.25UH |
445 |
|
Datasheet |
PG1096NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.25 µH | ±20% | 45 A | 55A | Unshielded | 1.2mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 1.024" L x 1.024" W (26.00mm x 26.00mm) | 0.583" (14.80mm) |
|
|
PG1096.333NLTPULSE XFMR 29.5UH |
332 |
|
Datasheet |
PG1096NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 29.5 µH | ±20% | 13.5 A | 15.5A | Unshielded | 10.5mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 1.024" L x 1.024" W (26.00mm x 26.00mm) | 0.583" (14.80mm) |
