Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XAL7070-222MECPOWER INDUCTOR, SHIELDED, 20% TO |
5,247 |
|
Datasheet |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 2.2 µH | ±20% | 17.8 A | 19.6A | Shielded | 6.33mOhm Max | - | 35MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
|
|
XAL7070-551MECPOWER INDUCTOR, SHIELDED, 20% TO |
4,966 |
|
Datasheet |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 550 nH | ±20% | 29 A | 43A | Shielded | 1.56mOhm Max | - | 89MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
|
|
XAL7070-682MECPOWER INDUCTOR, SHIELDED, 20% TO |
4,491 |
|
Datasheet |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 6.8 µH | ±20% | 9.2 A | 12.8A | Shielded | 19.62mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
|
|
XAL7070-122MECPOWER INDUCTOR, SHIELDED, 20% TO |
2,330 |
|
Datasheet |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 1.2 µH | ±20% | 21.6 A | 31.2A | Shielded | 3.41mOhm Max | - | 43MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
|
|
XAL7070-301MECPOWER INDUCTOR, SHIELDED, 20% TO |
2,243 |
|
Datasheet |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 300 nH | ±20% | 33.4 A | 55.6A | Shielded | 1.17mOhm Max | - | 135MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
|
|
XAL7070-182MECPOWER INDUCTOR, SHIELDED, 20% TO |
1,353 |
|
Datasheet |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 1.8 µH | ±20% | 21 A | 25A | Shielded | 4.46mOhm Max | - | 43MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
|
|
XAL7070-651MECPOWER INDUCTOR, SHIELDED, 20% TO |
530 |
|
Datasheet |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 650 nH | ±20% | 26.5 A | 40A | Shielded | 1.93mOhm Max | - | 74MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
|
|
XAL7070-223MECPOWER INDUCTOR, SHIELDED, 20% TO |
488 |
|
Datasheet |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 22 µH | ±20% | 5 A | 5.3A | Shielded | 48.6mOhm Max | - | 8.6MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
|
|
XAL7070-473MECPOWER INDUCTOR, SHIELDED, 20% TO |
397 |
|
Datasheet |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 47 µH | ±20% | 4.1 A | 4.2A | Shielded | 97.07mOhm Max | - | 5.7MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
|
CTX01-18016-RFIXED IND 250UH |
4,608 |
|
- |
- | - | Tray | Active | - | - | 250 µH | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
177CDMCCDS-R47MCFIXED IND 470NH 57A 0.9MOHM SMD |
148 |
|
Datasheet |
177CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 57 A | 85.5A | Shielded | 0.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
|
177CDMCCDS-220MCFIXED IND 22UH 8.8A 25.3MOHM SMD |
128 |
|
Datasheet |
177CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 22 µH | ±20% | 8.8 A | 16A | Shielded | 25.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
|
XAL6060-333MECFIXED IND 33UH 3.6A 105MOHM SM |
7,423 |
|
Datasheet |
XAL60XX | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 33 µH | ±20% | 3.6 A | 3.7A | Shielded | 105mOhm Max | - | 7MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.258" L x 0.250" W (6.56mm x 6.36mm) | 0.240" (6.10mm) |
|
CPD1495-220MCLASS D INDUCTOR FOR DIGITAL AMP |
592 |
|
Datasheet |
CPD1495 | Nonstandard | Tray | Active | Wirewound | Ferrite | 22 µH | ±20% | 7 A | 9.2A | Shielded | 17mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | Low Loss, Soft Saturation | Through Hole | - | 0.551" L x 0.374" W (14.00mm x 9.50mm) | 0.630" (16.00mm) |
|

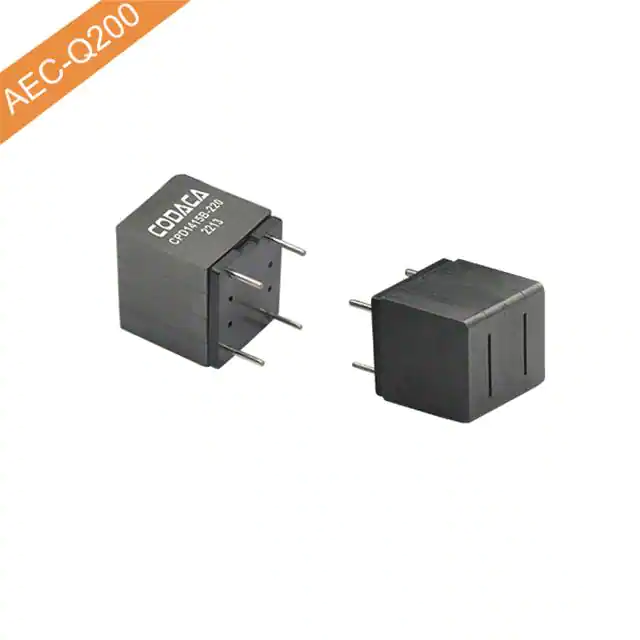

CPD1415B-220MCLASS D INDUCTOR FOR DIGITAL AMP |
478 |
|
Datasheet |
CPD1415B | Nonstandard | Tray | Active | Wirewound | Ferrite | 22 µH | ±20% | 6.8 A | 6.9A | Shielded | 17.1mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | Low Loss, Soft Saturation | Through Hole | Vertical, 4 PC Pin | 0.610" L x 0.551" W (15.50mm x 14.00mm) | 0.630" (16.00mm) |
|
|
CSBX1670-220MSMD HIGH CURRENT POWER INDUCTOR |
200 |
|
Datasheet |
CSBX1670 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 22 µH | ±20% | 8.5 A | 14A | Shielded | 23.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.661" L x 0.630" W (16.80mm x 16.00mm) | 0.264" (6.70mm) |
|
|
CSBX1670-8R2MSMD HIGH CURRENT POWER INDUCTOR |
190 |
|
Datasheet |
CSBX1670 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 8.2 µH | ±20% | 15 A | 21A | Shielded | 8.25mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.661" L x 0.630" W (16.80mm x 16.00mm) | 0.264" (6.70mm) |
|
|
CSBX1670-100MSMD HIGH CURRENT POWER INDUCTOR |
180 |
|
Datasheet |
CSBX1670 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 10 µH | ±20% | 13 A | 18A | Shielded | 10mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.661" L x 0.630" W (16.80mm x 16.00mm) | 0.264" (6.70mm) |
|
|
CSBL1670-100MSMD HIGH CURRENT POWER INDUCTOR |
158 |
|
Datasheet |
CSBL1670 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 10 µH | ±20% | 13 A | 16A | Shielded | 10mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.661" L x 0.630" W (16.80mm x 16.00mm) | 0.264" (6.70mm) |
|
|
IHLP6767GZER3R3M8AFIXED IND 3.3UH 32.2A 3.27 MOHM |
183 |
|
Datasheet |
IHLP-6767GZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 32.2 A | 32A | Shielded | 3.27mOhm Max | - | 16.5MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
