Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLQ40407A-1R2MHFFIXED IND 1.2UH 31A 0.73MOHM SMD |
500 |
|
Datasheet |
SLQ40407A | 2-SMD | Tape & Reel (TR) | Active | - | - | 1.2 µH | ±20% | 31 A | 13.5A | Shielded | 0.73mOhm | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" (10.00mm) |
|
AH3740A-70KFIXED IND 70NH 78A 0.145MOHM SMD |
400 |
|
Datasheet |
AH3740 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 70 nH | ±10% | 78 A | 124A | Shielded | 0.145mOhm | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.409" (10.40mm) |
|
PA4344.223NLTFIXED IND 22UH 12A 26.5 MOHM SMD |
374 |
|
Datasheet |
PA4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | - | 12 A | 18A | Shielded | 26.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|
|
AH3740A-120KFIXED IND 120NH 78A 0.145MOHM SM |
200 |
|
Datasheet |
AH3740 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 120 nH | ±10% | 78 A | 78A | Shielded | 0.145mOhm | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.398" (10.10mm) |
|
SLQ40407A-R47MHF0.47UH, 20%, 0.73MOHM, 42.0A MAX |
200 |
|
Datasheet |
SLQ40407A | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 470 nH | ±20% | 31 A | 42A | - | 0.73mOhm | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | - | 0.394" L x 0.275" W (10.00mm x 7.00mm) | 0.394" (10.00mm) |
|
SER2915L-682KLFIXED IND 6.8UH 30A 1.65MOHM SM |
2,055 |
|
Datasheet |
SER2900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±10% | 30 A | 22A | Shielded | 1.65mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 85°C | 500 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.605" (15.36mm) |
|
|
SER2915L-152KLFIXED IND 1.5UH 30A 1.65MOHM SM |
734 |
|
Datasheet |
SER2900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±10% | 30 A | 100A | Shielded | 1.65mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 85°C | 500 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.605" (15.36mm) |
|
|
SER2915L-103KLFIXED IND 10UH 30A 1.65MOHM SM |
678 |
|
Datasheet |
SER2900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±10% | 30 A | 13A | Shielded | 1.65mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 85°C | 500 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.605" (15.36mm) |
|
IHDM1008BCEV2R2M20HIGH CURRENT THROUGH-HOLE INDUCT |
406 |
|
Datasheet |
IHDM-1008BC-x0 | Vertical, 2 PC Pin | Tray | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 63 A | 204A | Unshielded | 0.7mOhm Max | - | 69MHz | - | -40°C ~ 180°C | 100 kHz | - | Through Hole | Vertical, 2 PC Pin | 1.005" L x 0.816" W (25.53mm x 20.73mm) | 0.896" (22.75mm) |
|
|
SER2915L-223KLFIXED IND 22UH 30A 1.65MOHM SM |
390 |
|
Datasheet |
SER2900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±10% | 30 A | 4.5A | Shielded | 1.65mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 85°C | 500 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.605" (15.36mm) |
|
|
SER2915L-472KLFIXED IND 4.7UH 39A 1.65MOHM SM |
318 |
|
Datasheet |
SER2900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±10% | 39 A | 36A | Shielded | 1.65mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 85°C | - | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.605" (15.36mm) |
|
|
SER2915L-332KLFIXED IND 3.3UH 30A 1.65MOHM SM |
310 |
|
Datasheet |
SER2900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±10% | 30 A | 48A | Shielded | 1.65mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 85°C | 500 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.605" (15.36mm) |
|
|
SER2915L-222KLFIXED IND 2.2UH 30A 1.65MOHM SM |
194 |
|
Datasheet |
SER2900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±10% | 30 A | 82A | Shielded | 1.65mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 85°C | 500 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.605" (15.36mm) |
|
|
SER2915L-153KLFIXED IND 15UH 30A 1.65MOHM SM |
170 |
|
Datasheet |
SER2900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±10% | 30 A | 7.5A | Shielded | 1.65mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 85°C | 500 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.605" (15.36mm) |
|

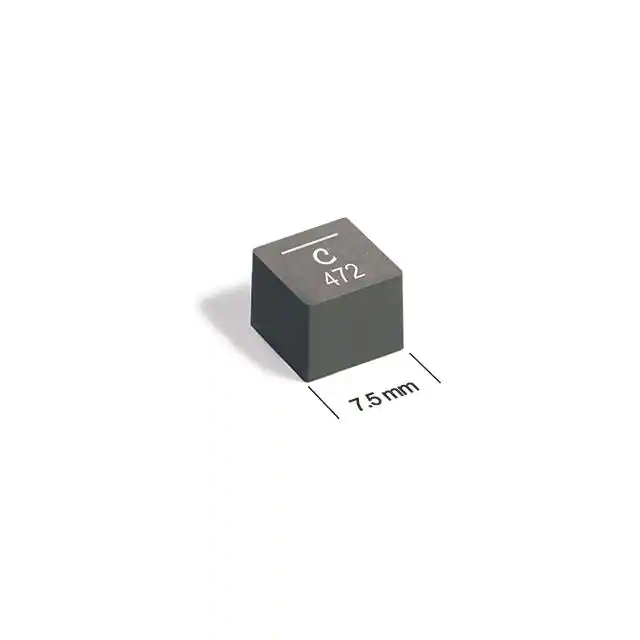

XAL7070-332MECPOWER INDUCTOR, SHIELDED, 20% TO |
20,977 |
|
Datasheet |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 3.3 µH | ±20% | 15.1 A | 19.4A | Shielded | 9.42mOhm Max | - | 32MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
|
|
XAL7070-472MECPOWER INDUCTOR, SHIELDED, 20% TO |
15,320 |
|
Datasheet |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 4.7 µH | ±20% | 13.6 A | 15.2A | Shielded | 14.26mOhm Max | - | 26MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
|
|
XAL7070-102MECPOWER INDUCTOR, SHIELDED, 20% TO |
9,022 |
|
Datasheet |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 1 µH | ±20% | 25 A | 34.8A | Shielded | 2.81mOhm Max | - | 64MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
|
|
XAL7070-161MECPOWER INDUCTOR, SHIELDED, 20% TO |
7,811 |
|
Datasheet |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 160 nH | ±20% | 36.1 A | 78A | Shielded | 0.83mOhm Max | - | 207MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
|
|
XAL7070-801MECPOWER INDUCTOR, SHIELDED, 20% TO |
6,539 |
|
Datasheet |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 800 nH | ±20% | 25.8 A | 37.8A | Shielded | 2.29mOhm Max | - | 67MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
|
|
XAL7070-562MECPOWER INDUCTOR, SHIELDED, 20% TO |
6,294 |
|
Datasheet |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 5.6 µH | ±20% | 11.4 A | 13A | Shielded | 15.03mOhm Max | - | 21MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
