Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSS1210-155KEDFIXED IND 1.5MH 650MA 1.45OHM SM |
788 |
|
Datasheet |
MSS1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 1.5 mH | ±10% | 650 mA | 810mA | Shielded | 1.45Ohm Max | - | 850kHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.402" (10.20mm) |
|
|
MSS1210-225KEDFIXED IND 2.2MH 520MA 2.14OHM SM |
782 |
|
Datasheet |
MSS1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 2.2 mH | ±10% | 520 mA | 660mA | Shielded | 2.14Ohm Max | - | 700kHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.402" (10.20mm) |
|
|
MSS1210-565KEDFIXED IND 5.6MH 380MA 4.37OHM SM |
738 |
|
Datasheet |
MSS1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 5.6 mH | ±10% | 380 mA | 410mA | Shielded | 4.37Ohm Max | - | 450kHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.402" (10.20mm) |
|
|
MSS1210-275KEDFIXED IND 2.7MH 500MA 2.38OHM SM |
662 |
|
Datasheet |
MSS1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 2.7 mH | ±10% | 500 mA | 590mA | Shielded | 2.38Ohm Max | - | 650kHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.402" (10.20mm) |
|
|
MSS1210-685KEDFIXED IND 6.8MH 310MA 5.85OHM SM |
647 |
|
Datasheet |
MSS1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 6.8 mH | ±10% | 310 mA | 380mA | Shielded | 5.85Ohm Max | - | 400kHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.402" (10.20mm) |
|

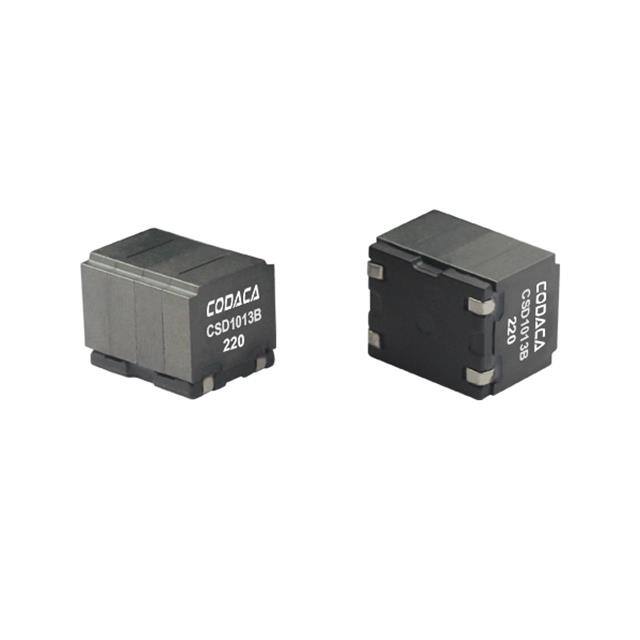

CSD1013B-100MCLASS D INDUCTOR FOR DIGITAL AMP |
268 |
|
Datasheet |
CSD | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 10 µH | ±20% | 4.2 A | 7.1A | Shielded | 18mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 4-SMD | 0.512" L x 0.413" W (13.00mm x 10.50mm) | 0.413" (10.50mm) |
|
|
CSD1013B-220MCLASS D INDUCTOR FOR DIGITAL AMP |
268 |
|
Datasheet |
CSD | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 22 µH | ±20% | 3 A | 4.3A | Shielded | 38mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 4-SMD | 0.512" L x 0.413" W (13.00mm x 10.50mm) | 0.413" (10.50mm) |
|
|
2500-48JFIXED IND 2.7MH 65MA 33 OHM TH |
1,000 |
|
Datasheet |
2500 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 2.7 mH | ±5% | 65 mA | - | Unshielded | 33Ohm Max | 70 @ 250kHz | 1.8MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
AH3740A-300KFIXED IND 300NH 78A 0.145MOHM SM |
2,300 |
|
Datasheet |
AH3740 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 300 nH | ±10% | 78 A | 27A | Shielded | 0.145mOhm | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.394" (10.00mm) |
|
PA4344.563NLTFIXED IND 56UH 7.8A 62 MOHM SMD |
1,268 |
|
Datasheet |
PA4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 56 µH | - | 7.8 A | 9A | Shielded | 62mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|
|
AH3740A-80KFIXED IND 80NH 78A 0.145MOHM SMD |
1,100 |
|
Datasheet |
AH3740 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 80 nH | ±10% | 78 A | 118A | Shielded | 0.145mOhm | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.409" (10.40mm) |
|
AF13A-220KFIXED IND 220NH 66A 0.17MOHM SMD |
1,100 |
|
Datasheet |
AF13A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 nH | ±10% | 66 A | - | Shielded | 0.17mOhm | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.354" (9.00mm) |
|
|
PA4344.562NLTFIXED IND 5.6UH 21A 7.05MOHM SMD |
1,045 |
|
Datasheet |
PA4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | - | 21 A | 40A | Shielded | 7.05mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|
|
PA4344.132NLTFIXED IND 1.3UH 49A 2.3 MOHM SMD |
871 |
|
Datasheet |
PA4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.3 µH | - | 49 A | 54A | Shielded | 2.3mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|
|
PA4344.822NLTFIXED IND 8.2UH 18A 10.8MOHM SMD |
871 |
|
Datasheet |
PA4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | - | 18 A | 25A | Shielded | 10.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|
IHD1ER560LFIXED IND 56UH 1.4A 130 MOHM TH |
800 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±15% | 1.4 A | 970mA | Unshielded | 130mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
|
PA4344.393NLTFIXED IND 39UH 9.2A 48 MOHM SMD |
623 |
|
Datasheet |
PA4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 39 µH | - | 9.2 A | 11A | Shielded | 48mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|
|
AH3740A-180KFIXED IND 180NH 78A 0.145MOHM SM |
600 |
|
Datasheet |
AH3740 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 180 nH | ±10% | 78 A | 49A | Shielded | 0.145mOhm | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.394" (10.00mm) |
|
|
AH3740A-150KFIXED IND 150NH 78A 0.145MOHM SM |
600 |
|
Datasheet |
AH3740 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 nH | ±10% | 78 A | 60A | Shielded | 0.145mOhm | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | - | 0.378" L x 0.374" W (9.60mm x 9.50mm) | 0.394" (10.00mm) |
|
|
AH3740A-330LFIXED IND 330NH 78A 0.145MOHM SM |
500 |
|
Datasheet |
AH3740 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 nH | ±15% | 78 A | 20A | Shielded | 0.145mOhm | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.394" (10.00mm) |
