Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTH8F-222K2200UH AXIAL PWR LINE INDUCTOR |
285 |
|
Datasheet |
CTH8F | Axial | Bulk | Active | - | - | 2.2 mH | ±10% | 500 mA | 580mA | Unshielded | 2Ohm Max | - | 700kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.469" Dia x 0.921" L (11.90mm x 23.40mm) | - |
|
|
CTH8F-101K100UH AXIAL PWR LINE INDUCTOR |
266 |
|
Datasheet |
CTH8F | Axial | Bulk | Active | - | - | 100 µH | ±10% | 1.6 A | 2.79A | Unshielded | 90mOhm Max | - | 3MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.469" Dia x 0.921" L (11.90mm x 23.40mm) | - |
|
|
CTH8F-152K1500UH AXIAL PWR LINE INDUCTOR |
265 |
|
Datasheet |
CTH8F | Axial | Bulk | Active | - | - | 1.5 mH | ±10% | 600 mA | 700mA | Unshielded | 1.18Ohm Max | - | 750kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.469" Dia x 0.921" L (11.90mm x 23.40mm) | - |
|
|
CTH8F-272K2700UH AXIAL PWR LINE INDUCTOR |
219 |
|
Datasheet |
CTH8F | Axial | Bulk | Active | - | - | 2.7 mH | ±10% | 400 mA | 530mA | Unshielded | 2.06Ohm Max | - | 650kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.469" Dia x 0.921" L (11.90mm x 23.40mm) | - |
|
CTDO5040F-223M22UH SMD UNSHLD POWER INDUCTOR |
1,050 |
|
Datasheet |
CTDO5040F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 5.4 A | 11A | Unshielded | 27mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.450" (11.43mm) |
.jpg)
|
ASPI-F1010-4R7M-TIND 4.7UH 21.4A 5.7M |
417 |
|
Datasheet |
ASPI-F1010 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 4.7 µH | ±20% | 24 A | 21.4A | Shielded | 5.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.394" (10.00mm) |
|
HC8-100-RFIXED IND 10UH 5.2A 43.6MOHM SMD |
596 |
|
Datasheet |
HC8 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±20% | 5.2 A | 9.2A | Unshielded | 43.6mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.409" W (10.90mm x 10.40mm) | 0.157" (4.00mm) |
|
SP1210R-394KFIXED IND 390UH 80MA 32.4OHM SMD |
331 |
|
Datasheet |
SP1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 80 mA | 65mA | Shielded | 32.4Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|

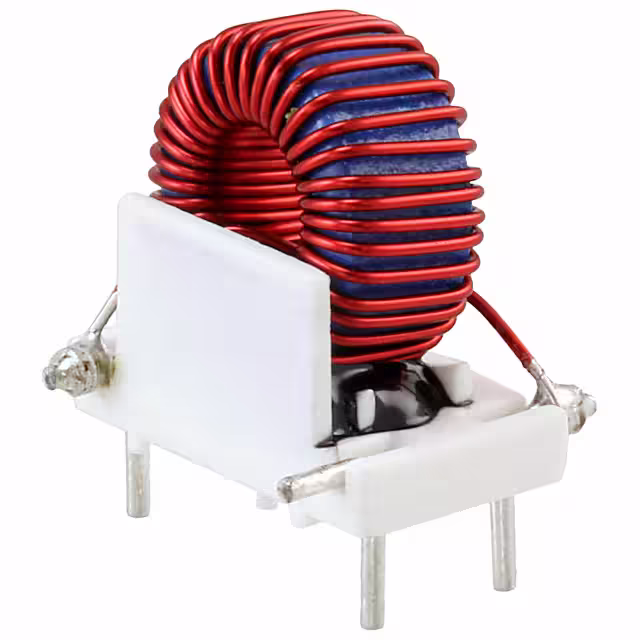

CTX50-1-52M-RFIXED IND 50UH 2.6A 71.5 MOHM TH |
2,252 |
|
Datasheet |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 50 µH | ±20% | 2.6 A | 2.7A | Unshielded | 71.5mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.772" L x 0.634" W (19.60mm x 16.10mm) | 0.787" (20.00mm) |
|
SER2013-472MLDFIXED IND 4.7UH 30A 1.82MOHM SM |
6,970 |
|
Datasheet |
SER2000 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 30 A | 18A | Shielded | 1.82mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.755" L x 0.365" W (19.18mm x 9.27mm) | 0.510" (12.95mm) |
|
|
SER2013-402MLDFIXED IND 4UH 30A 1.82MOHM SM |
2,266 |
|
Datasheet |
SER2000 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4 µH | ±20% | 30 A | 20A | Shielded | 1.82mOhm Max | - | 35MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2013 | 0.755" L x 0.365" W (19.18mm x 9.27mm) | 0.510" (12.95mm) |
|
LGJ7045TC-221M-DFIXED IND 220UH 520MA 660MOHM SM |
1,471 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 520 mA | 620mA | Shielded | 660mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.177" (4.50mm) |
|
|
LGJ7045TC-471M-DFIXED IND 470UH 370MA 1.42OHM SM |
1,378 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 370 mA | 430mA | Shielded | 1.42Ohm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.177" (4.50mm) |
|
|
SER2013-362MLDFIXED IND 3.6UH 30A 1.82MOHM SM |
997 |
|
Datasheet |
SER2000 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.6 µH | ±20% | 30 A | 25A | Shielded | 1.82mOhm Max | - | 38MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2013 | 0.755" L x 0.365" W (19.18mm x 9.27mm) | 0.510" (12.95mm) |
|
|
LGJ7045TC-151M-DFIXED IND 150UH 610MA 480MOHM SM |
955 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 610 mA | 670mA | Shielded | 480mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.177" (4.50mm) |
|
|
LGJ7045TC-150M-DFIXED IND 15UH 2.1A 51 MOHM SMD |
938 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.1 A | 2.3A | Shielded | 51mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.177" (4.50mm) |
|
|
LGJ7045TC-331M-DFIXED IND 330UH 420MA 1.03OHM SM |
920 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 420 mA | 490mA | Shielded | 1.03Ohm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.177" (4.50mm) |
|
|
LGJ7045TC-101M-DFIXED IND 100UH 750MA 330MOHM SM |
893 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 750 mA | 900mA | Shielded | 330mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.177" (4.50mm) |
|
|
LGJ7045TC-330M-DFIXED IND 33UH 1.4A 110 MOHM SMD |
772 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.4 A | 1.55A | Shielded | 110mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.177" (4.50mm) |
|
|
LGJ7045TC-100M-DFIXED IND 10UH 2.5A 38 MOHM SMD |
700 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.5 A | 2.7A | Shielded | 38mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.177" (4.50mm) |
