Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VSEB0850H-150MCAUTOMOTIVE SMD MOLDING POWER CHK |
700 |
|
Datasheet |
VSEB0850H | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 15 µH | ±20% | 8.1 A | 7.2A | Shielded | 44mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.346" L x 0.327" W (8.80mm x 8.30mm) | 0.189" (4.80mm) |
|
|
VSEB0850H-220MCAUTOMOTIVE SMD MOLDING POWER CHK |
700 |
|
Datasheet |
VSEB0850H | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 22 µH | ±20% | 5.8 A | 6.2A | Shielded | 64.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.346" L x 0.327" W (8.80mm x 8.30mm) | 0.189" (4.80mm) |
|
|
TMPF 1513AV-4R7MN-D4.7 UH SHIELDED MOLDED INDUCTOR |
200 |
|
Datasheet |
TMPF1513AV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 23 A | 44A | Unshielded | 3.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.512" (13.00mm) |
|
|
TMPF 1513AV-100MN-D10 UH SHIELDED MOLDED INDUCTOR S |
200 |
|
Datasheet |
TMPF1513AV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | - | - | Unshielded | - | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.512" (13.00mm) |
|
SRP1770C-R47MFIXED IND 470NH 60A 0.83MOHM SMD |
373 |
|
Datasheet |
SRP1770C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 470 nH | ±20% | 60 A | 115A | Shielded | 0.83mOhm Max | 10 @ 100kHz | 28MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
|
SRP1770C-3R3MFIXED IND 3.3UH 28A 3.9 MOHM SMD |
326 |
|
Datasheet |
SRP1770C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 28 A | 40A | Shielded | 3.9mOhm Max | 20 @ 100kHz | 19MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
|
SRP1770C-100MFIXED IND 10UH 17A 13 MOHM SMD |
280 |
|
Datasheet |
SRP1770C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 10 µH | ±20% | 17 A | 25A | Shielded | 13mOhm Max | 20 @ 100kHz | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
|
SRP1770C-5R6MFIXED IND 5.6UH 24A 6.8 MOHM SMD |
197 |
|
Datasheet |
SRP1770C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 5.6 µH | ±20% | 24 A | 35A | Shielded | 6.8mOhm Max | 20 @ 100kHz | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
HC2-R47-RFIXED IND 470NH 52.9A 0.6MOHM SM |
945 |
|
Datasheet |
HC2 | Nonstandard | Bulk | Obsolete | Wirewound | - | 470 nH | ±20% | 52.9 A | 63.75A | Unshielded | 0.6mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 0.756" L x 0.748" W (19.20mm x 19.00mm) | 0.500" (12.70mm) |
|

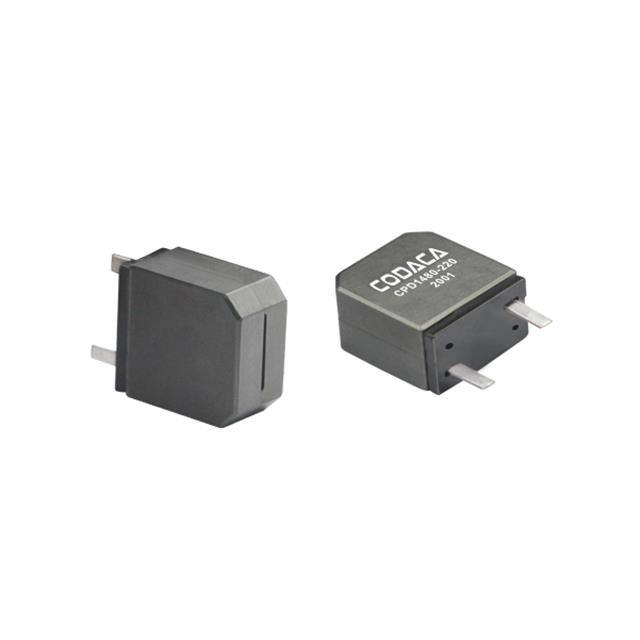

CPD1480-220MCLASS D INDUCTOR FOR DIGITAL AMP |
459 |
|
Datasheet |
CPD1480 | Nonstandard | Tray | Active | Wirewound | Ferrite | 22 µH | ±20% | 8 A | 6.2A | Shielded | 12mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | Low Loss, Soft Saturation | Through Hole | Radial | 0.551" L x 0.299" W (14.00mm x 7.60mm) | 0.630" (16.00mm) |
|
TPI111065L210NFIXED IND 210NH SMD |
2,809 |
|
Datasheet |
TPI | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 210 nH | - | - | - | Shielded | - | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | - | - |
|
XGL6030-222MECPOWER INDUCTOR, SHIELDED, COMPOS |
66,298 |
|
Datasheet |
XGL6030 | Nonstandard | Strip | Active | Molded | Metal Composite | 2.2 µH | ±20% | 12 A | 12.2A | Shielded | 10.3mOhm Max | - | 28MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.264" L x 0.256" W (6.71mm x 6.51mm) | 0.122" (3.10mm) |
|
|
XAL6030-332MECFIXED IND 3.3UH 8A 20.81MOHM SM |
28,499 |
|
Datasheet |
XAL60XX | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 3.3 µH | ±20% | 8 A | 12.2A | Shielded | 20.81mOhm Max | - | 26MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.258" L x 0.250" W (6.56mm x 6.36mm) | 0.122" (3.10mm) |
|
|
XAL6030-222MECFIXED IND 2.2UH 10A 13.97MOHM SM |
26,578 |
|
Datasheet |
XAL60XX | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 2.2 µH | ±20% | 10 A | 15.9A | Shielded | 13.97mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.258" L x 0.250" W (6.56mm x 6.36mm) | 0.122" (3.10mm) |
|
|
XAL6030-561MECFIXED IND 560NH 22A 3.31MOHM SM |
14,042 |
|
Datasheet |
XAL60XX | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 560 nH | ±20% | 22 A | 29A | Shielded | 3.31mOhm Max | - | 61MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.258" L x 0.250" W (6.56mm x 6.36mm) | 0.122" (3.10mm) |
|
|
XAL6030-182MECFIXED IND 1.8UH 14A 10.52MOHM SM |
11,499 |
|
Datasheet |
XAL60XX | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.8 µH | ±20% | 14 A | 18.2A | Shielded | 10.52mOhm Max | - | 34MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.258" L x 0.250" W (6.56mm x 6.36mm) | 0.122" (3.10mm) |
|
|
XAL6030-331MECFIXED IND 330NH 25A 2.53MOHM SM |
7,398 |
|
Datasheet |
XAL60XX | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 330 nH | ±20% | 25 A | 30A | Shielded | 2.53mOhm Max | - | 89MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.258" L x 0.250" W (6.56mm x 6.36mm) | 0.122" (3.10mm) |
|
|
XGL6030-221MECPOWER INDUCTOR, SHIELDED, COMPOS |
6,142 |
|
Datasheet |
XGL6030 | Nonstandard | Strip | Active | Molded | Metal Composite | 220 nH | ±20% | 32 A | 39A | Shielded | 1.5mOhm Max | - | 130MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.264" L x 0.256" W (6.71mm x 6.51mm) | 0.122" (3.10mm) |
|
|
XGL6030-471MECPOWER INDUCTOR, SHIELDED, COMPOS |
6,137 |
|
Datasheet |
XGL6030 | Nonstandard | Strip | Active | Molded | Metal Composite | 470 nH | ±20% | 25 A | 26.5A | Shielded | 2.7mOhm Max | - | 66MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.264" L x 0.256" W (6.71mm x 6.51mm) | 0.122" (3.10mm) |
|
|
XAL6030-122MECFIXED IND 1.2UH 16A 7.5MOHM SM |
4,459 |
|
Datasheet |
XAL60XX | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.2 µH | ±20% | 16 A | 22A | Shielded | 7.5mOhm Max | - | 43MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.258" L x 0.250" W (6.56mm x 6.36mm) | 0.122" (3.10mm) |
