Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XGL4040-681MECPOWER INDUCTOR, SHIELDED, COMPOS |
1,928 |
|
Datasheet |
XGL4040 | 1616 (4040 Metric) | Strip | Active | Molded | Metal Composite | 680 nH | ±20% | 18.3 A | 10.5A | Shielded | 4mOhm Max | - | 72MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.161" (4.10mm) |
|
|
XGL4040-682MECPOWER INDUCTOR, SHIELDED, COMPOS |
1,841 |
|
Datasheet |
XGL4040 | 1616 (4040 Metric) | Strip | Active | Molded | Metal Composite | 6.8 µH | ±20% | 5.6 A | 4A | Shielded | 34.7mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.161" (4.10mm) |
|
MSS1048-334KLCFIXED IND 330UH 820MA 748MOHM SM |
1,098 |
|
Datasheet |
MSS1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 330 µH | ±10% | 820 mA | 570mA | Shielded | 748mOhm Max | - | 3MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.201" (5.10mm) |
|
|
MSS1048-474KLCFIXED IND 470UH 720MA 886MOHM SM |
658 |
|
Datasheet |
MSS1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 470 µH | ±10% | 720 mA | 430mA | Shielded | 886mOhm Max | - | 2.7MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.201" (5.10mm) |
|
|
MSS1048-332NLCFIXED IND 3.3UH 7.22A 10MOHM SM |
626 |
|
Datasheet |
MSS1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 3.3 µH | ±30% | 7.22 A | 4.62A | Shielded | 10mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.201" (5.10mm) |
|
|
XGL4040-472MECPOWER INDUCTOR, SHIELDED, COMPOS |
610 |
|
Datasheet |
XGL4040 | 1616 (4040 Metric) | Strip | Active | Molded | Metal Composite | 4.7 µH | ±20% | 7.1 A | 4.4A | Shielded | 24.5mOhm Max | - | 24MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.161" (4.10mm) |
|
|
XGL4040-223MECPOWER INDUCTOR, SHIELDED, COMPOS |
562 |
|
Datasheet |
XGL4040 | 1616 (4040 Metric) | Strip | Active | Molded | Metal Composite | 22 µH | ±20% | 2.5 A | 1.9A | Shielded | 114.7mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.161" (4.10mm) |
|
|
XGL4040-222MECPOWER INDUCTOR, SHIELDED, COMPOS |
395 |
|
Datasheet |
XGL4040 | 1616 (4040 Metric) | Strip | Active | Molded | Metal Composite | 2.2 µH | ±20% | 11 A | 6.4A | Shielded | 11.5mOhm Max | - | 37MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.161" (4.10mm) |
|
|
MSS1048-801NLCFIXED IND 800NH 12A 4.3MOHM SM |
366 |
|
Datasheet |
MSS1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 800 nH | ±30% | 12 A | 9.6A | Shielded | 4.3mOhm Max | - | 180MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.201" (5.10mm) |
|
|
MSS1048-473MLCFIXED IND 47UH 2.42A 120MOHM SM |
302 |
|
Datasheet |
MSS1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 47 µH | ±20% | 2.42 A | 1.44A | Shielded | 120mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.201" (5.10mm) |
|
SNT-D30CMC 20UH 500MA 2LN TH |
483 |
|
Datasheet |
SNT | Vertical, 2 PC Pin | Bulk | Active | Toroidal | Nickel Zinc Ferrite (NiZn) | 20 µH | - | 500 mA | - | Unshielded | 98mOhm | - | - | - | -20°C ~ 60°C | 100 kHz | - | Through Hole | Nonstandard, 2 Lead | 0.374" L x 0.236" W (9.50mm x 6.00mm) | 0.500" (12.70mm) |
|
|
XFL4015-471MECFIXED IND 470NH 9.1A 8.36MOHM SM |
83,194 |
|
Datasheet |
XFL4015 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 470 nH | ±20% | 9.1 A | 6.6A | Shielded | 8.36mOhm Max | - | 89MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.063" (1.60mm) |
|
|
XFL4015-122MECFIXED IND 1.2UH 5.1A 20.7MOHM SM |
13,687 |
|
Datasheet |
XFL4015 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.2 µH | ±20% | 5.1 A | 4.5A | Shielded | 20.7mOhm Max | - | 61MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.063" (1.60mm) |
|
|
XFL4015-701MECFIXED IND 700NH 7.2A 10.45MOHM |
10,327 |
|
Datasheet |
XFL4015 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 700 nH | ±20% | 7.2 A | 6.3A | Shielded | 10.45mOhm Max | - | 70MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.063" (1.60mm) |
|
|
HA72E-12100HLFTR13FIXED IND 10UH 10A 17.2 MOHM SMD |
795 |
|
Datasheet |
HA72E-12 | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Molded | - | 10 µH | ±20% | 10 A | 9A | Unshielded | 17.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.549" L x 0.512" W (13.95mm x 13.00mm) | 0.256" (6.50mm) |
|

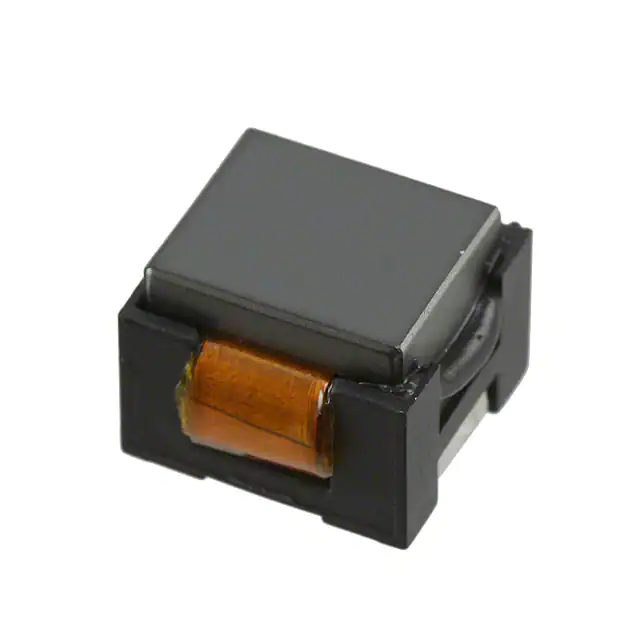

HC1-R87-RFIXED IND 870NH 28.01A 1.23 MOHM |
2,602 |
|
Datasheet |
HC1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 870 nH | ±15% | 28.01 A | 21A | Unshielded | 1.23mOhm Max | - | - | - | -40°C ~ 125°C | 300 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.394" (10.00mm) |
|
DRAP127-470-RFIXED IND 47UH 2.62A 110MOHM SMD |
1,039 |
|
Datasheet |
DRAP127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | 2.62 A | 5.09A | Shielded | 110mOhm Max | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.319" (8.10mm) |
|
|
DRAP127-150-RFIXED IND 15UH 4.83A 32 MOHM SMD |
700 |
|
Datasheet |
DRAP127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 4.83 A | 9.03A | Shielded | 32mOhm Max | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.319" (8.10mm) |
|
|
DRAP127-3R3-RFIXED IND 3.3UH 8.54A 10.4 MOHM |
700 |
|
Datasheet |
DRAP127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±20% | 8.54 A | 18.7A | Shielded | 10.4mOhm Max | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.319" (8.10mm) |
|
FP1010R1-R120-RFIXED IND 120NH 50A 0.185MOHM SM |
2,340 |
|
Datasheet |
FP1010 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 120 nH | ±15% | 50 A | 75A | Shielded | 0.185mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | 0.394" (10.00mm) |
