Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0603DC-27NXGRWFIXED IND 27NH 1.63A 116MOHM SMD |
3,340 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 27 nH | ±2% | 1.63 A | - | Unshielded | 116mOhm Max | 82 @ 900MHz | 2.5GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-R30XGRWFIXED IND 300NH 320MA 2.66OHM SM |
2,969 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 300 nH | ±2% | 320 mA | - | Unshielded | 2.66Ohm Max | - | 750MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
MGV0603R33M-10FIXED IND 330NH 20A 3.9 MOHM SMD |
2,894 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 20 A | 30A | Shielded | 3.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.264" W (7.30mm x 6.70mm) | 0.130" (3.30mm) |
|
|
MGV0603R68M-10FIXED IND 680NH 15.5A 5.5MOHM SM |
2,000 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 15.5 A | 25A | Shielded | 5.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.264" W (7.30mm x 6.70mm) | 0.130" (3.30mm) |
|
|
MGV06034R7M-12FIXED IND 4.7UH 5.5A 40 MOHM SMD |
1,970 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 5.5 A | 10A | Shielded | 40mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.264" W (7.30mm x 6.70mm) | 0.134" (3.40mm) |
|

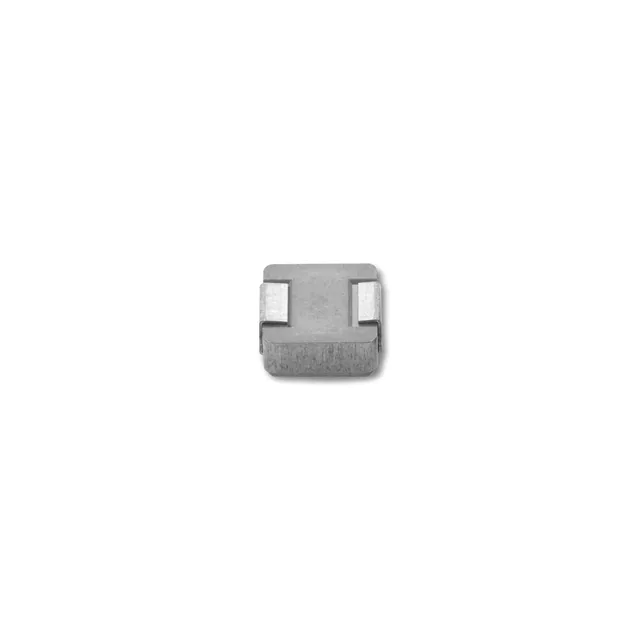

IHLP2020CZET100M01FIXED IND 10UH 2.5A 164MOHM SMD |
1,750 |
|
Datasheet |
IHLP-2020CZ-01 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 10 µH | ±20% | 2.5 A | 4A | Shielded | 164mOhm Max | - | 16MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
|
0603DC-R11XGRWFIXED IND 110NH 620MA 725MOHM SM |
1,638 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 110 nH | ±2% | 620 mA | - | Unshielded | 725mOhm Max | 55 @ 900MHz | 1.25GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-3N9XGRWFIXED IND 3.9NH 2.8A 40MOHM SMD |
1,626 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 3.9 nH | ±2% | 2.8 A | - | Unshielded | 40mOhm Max | 105 @ 900MHz | 11.25GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
MWSA0624S-R33MTFIXED IND 330NH 18A 4.1MOHM SMD |
1,498 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 330 nH | ±20% | 18 A | 24.5A | Shielded | 4.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.094" (2.40mm) |
|
|
MWSA0624S-R68MTFIXED IND 680NH 12A 7 MOHM SMD |
1,490 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 680 nH | ±20% | 12 A | 16A | Shielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.094" (2.40mm) |
|
CSAB0730-6R8MSMD MOLDING POWER CHOKE |
1,200 |
|
Datasheet |
CSAB0730 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 6.8 µH | ±20% | 4.9 A | 6A | Shielded | 48mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.118" (3.00mm) |
|
|
0603DC-3N3XGRWFIXED IND 3.3NH 2.77A 42MOHM SMD |
1,018 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 3.3 nH | ±2% | 2.77 A | - | Unshielded | 42mOhm Max | 94 @ 900MHz | 9.3GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|

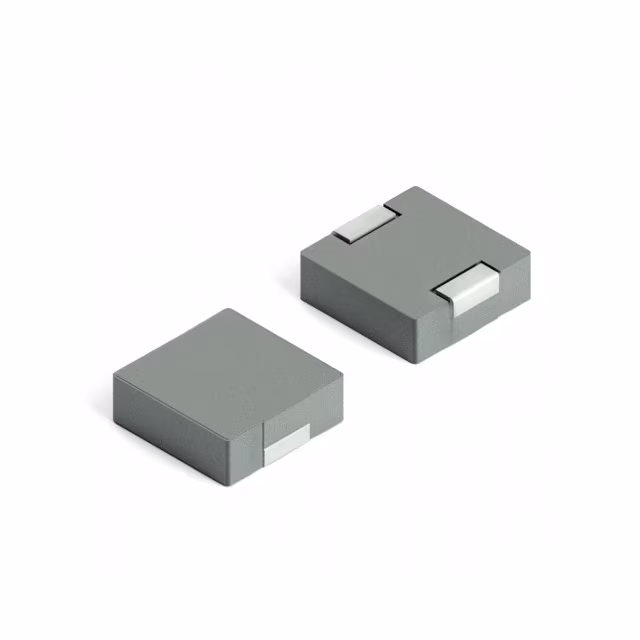

XFHCL6-R10MFIXED IND 100NH 32A 1.7 MOHM SMD |
1,000 |
|
Datasheet |
XFHCL6 | - | Tape & Reel (TR) | Active | Molded | - | 100 nH | ±20% | 32 A | 60A | Shielded | 1.7mOhm Max | - | 400MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
CSAB0730-2R2MSMD MOLDING POWER CHOKE |
996 |
|
Datasheet |
CSAB0730 | 2-SMD | Cut Tape (CT) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 9.1 A | 11.5A | Shielded | 15mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | 2-SMD | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.118" (3.00mm) |
|
|
CSAB0740-150MSMD MOLDING POWER CHOKE |
989 |
|
Datasheet |
CSAB0740 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 15 µH | ±20% | 3.7 A | 4.5A | Shielded | 95mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.157" (4.00mm) |
|
|
CSAB0750-4R7MSMD MOLDING POWER CHOKE |
795 |
|
Datasheet |
CSAB0750 | 2-SMD | Cut Tape (CT) | Active | Molded | Alloy Powder | 4.7 µH | ±20% | 6.6 A | 7A | Shielded | 32mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | 2-SMD | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.189" (4.80mm) |
|
|
CSAB0420-R33MSMD MOLDING POWER CHOKE |
490 |
|
Datasheet |
CSAB0420 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 0.33 µH | ±20% | 9.9 A | 12A | Shielded | 10.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Molded Inductors, Molding Power Choke | Surface Mount | 2-SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
|
CSAB0420-R10MSMD MOLDING POWER CHOKE |
490 |
|
Datasheet |
CSAB0420 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 0.1 µH | ±20% | 15.6 A | 28A | Shielded | 4.0mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Molded Inductors, Molding Power Choke | Surface Mount | 2-SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
1008CS-560XJRC1008CS-560XJRC |
58,536 |
|
Datasheet |
1008CS | 1008 (2520 Metric) | Strip | Active | Wirewound | Ceramic | 56 nH | ±5% | 1 A | - | Unshielded | 180mOhm Max | 65 @ 350MHz | 1.3GHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.080" (2.03mm) |
|
|
1008CS-122XJRC1008CS-122XJRC |
43,594 |
|
Datasheet |
1008CS | 1008 (2520 Metric) | Strip | Active | Wirewound | Ceramic | 1.2 µH | ±5% | 310 mA | - | Unshielded | 2Ohm Max | 35 @ 50MHz | 250MHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.080" (2.03mm) |
