Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0402DC-6N0XJRWFIXED IND 6NH 1.8A 57MOHM SM |
218 |
|
Datasheet |
0402DC | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 6 nH | ±5% | 1.8 A | - | Unshielded | 57mOhm Max | 71 @ 900MHz | 9.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.65mm) |
|
HM72E-06R33LFTR13FIXED IND 330NH 18A 3.9 MOHM SMD |
210 |
|
Datasheet |
HM72E-06 | 2-SMD | Cut Tape (CT) | Discontinued at Digi-Key | Molded | - | 330 nH | ±20% | 18 A | 22A | Unshielded | 3.9mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.268" W (7.23mm x 6.80mm) | 0.118" (3.00mm) |
|
|
0402DC-4N5XJRWFIXED IND 4.5NH 1.85A 48MOHM SM |
181 |
|
Datasheet |
0402DC | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 4.5 nH | ±5% | 1.85 A | - | Unshielded | 48mOhm Max | 65 @ 900MHz | 13.28GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.65mm) |
|
|
HM72E-063R3LFTR13FIXED IND 3.3UH 6.6A 30 MOHM SMD |
156 |
|
Datasheet |
HM72E-06 | 2-SMD | Cut Tape (CT) | Discontinued at Digi-Key | Molded | - | 3.3 µH | ±20% | 6.6 A | 8A | Unshielded | 30mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.268" W (7.23mm x 6.80mm) | 0.118" (3.00mm) |
|
0402DC-8N0XJRW0402DC-8N0XJRW |
139 |
|
Datasheet |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | 8 nH | ±5% | 1.6 A | - | Unshielded | 70mOhm Max | 71 @ 900MHz | 8.6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.65mm) |
|
|
0402DC-7N5XJRW0402DC-7N5XJRW |
102 |
|
Datasheet |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | 7.5 nH | ±5% | 1.65 A | - | Unshielded | 63mOhm Max | 71 @ 900MHz | 8.4GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.65mm) |
|
|
CSAB0750-100MSMD MOLDING POWER CHOKE |
5,565 |
|
Datasheet |
CSAB0750 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 10 µH | ±20% | 4.3 A | 5.3A | Shielded | 65mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.197" (5.00mm) |
|

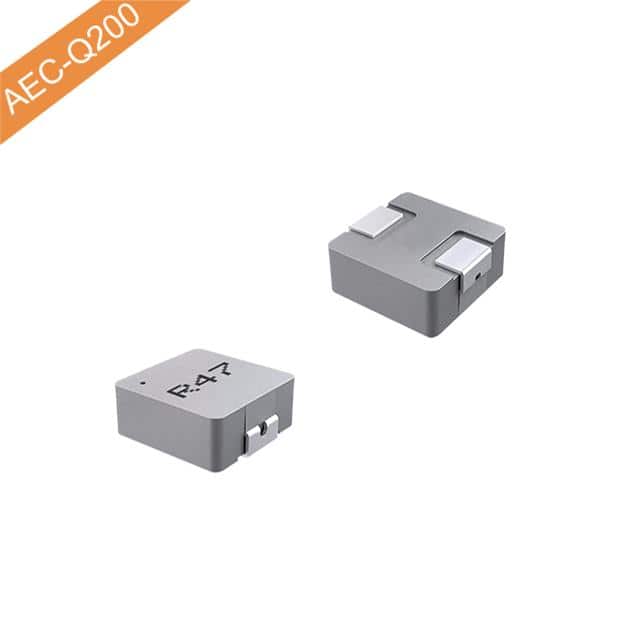

CSAB0420-2R2MSMD MOLDING POWER CHOKE |
3,901 |
|
Datasheet |
CSAB0420 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 4 A | 5A | Shielded | 65mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
|
CSAB0750-220MSMD MOLDING POWER CHOKE |
2,391 |
|
Datasheet |
CSAB0750 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 22 µH | ±20% | 3.2 A | 4A | Shielded | 106mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.197" (5.00mm) |
|
|
CSAB0420-3R3MSMD MOLDING POWER CHOKE |
1,603 |
|
Datasheet |
CSAB0420 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 3.3 µH | ±20% | 3.3 A | 4A | Shielded | 87mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
|
CSAB0420-100MSMD MOLDING POWER CHOKE |
1,530 |
|
Datasheet |
CSAB0420 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 10 µH | ±20% | 1.8 A | 2.2A | Shielded | 282mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
0512CDMCCDS-4R7MCFIXED IND 4.7UH 2.3A 166.2 MOHM |
1,519 |
|
Datasheet |
0512CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 2.3 A | 3.2A | Shielded | 166.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.047" (1.20mm) |
|
FP1505R1-R10-RFIXED IND 100NH 53A 0.47MOHM SMD |
4,903 |
|
Datasheet |
FLAT-PAC, FP1505 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±10% | 53 A | 105A | Unshielded | 0.47mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.579" L x 0.264" W (14.70mm x 6.70mm) | 0.197" (5.00mm) |
|

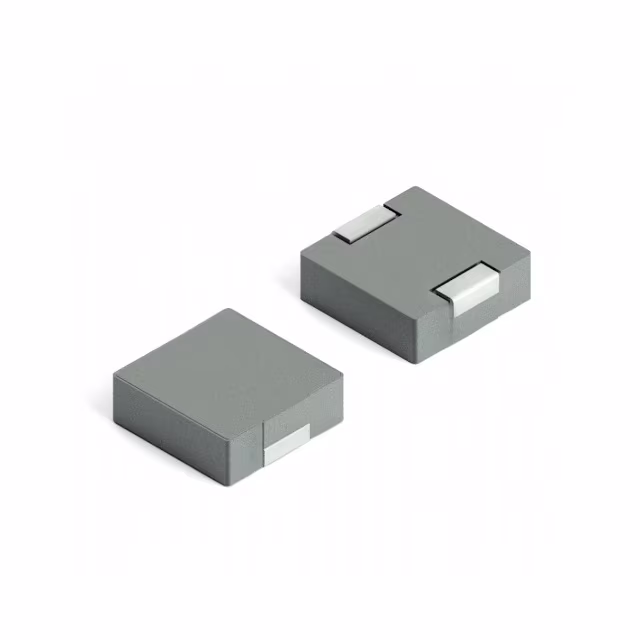

XFHCL6-6R8MFIXED IND 6.8UH 4.5A 60 MOHM SMD |
1,000 |
|
Datasheet |
XFHCL6 | - | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 4.5 A | 8A | Shielded | 60mOhm Max | - | 21MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
TMPC 1205HPV-220MG-D22 UH SHIELDED MOLDED INDUCTOR S |
996 |
|
Datasheet |
TMPC1205HPV | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 22 µH | ±20% | 6.5 A | 10A | Unshielded | 58Ohm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|
|
TMPC 1205HPV-100MG-D10 UH SHIELDED MOLDED INDUCTOR S |
993 |
|
Datasheet |
TMPC1205HPV | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 10 µH | ±20% | 9 A | 16A | Unshielded | 25.5Ohm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|

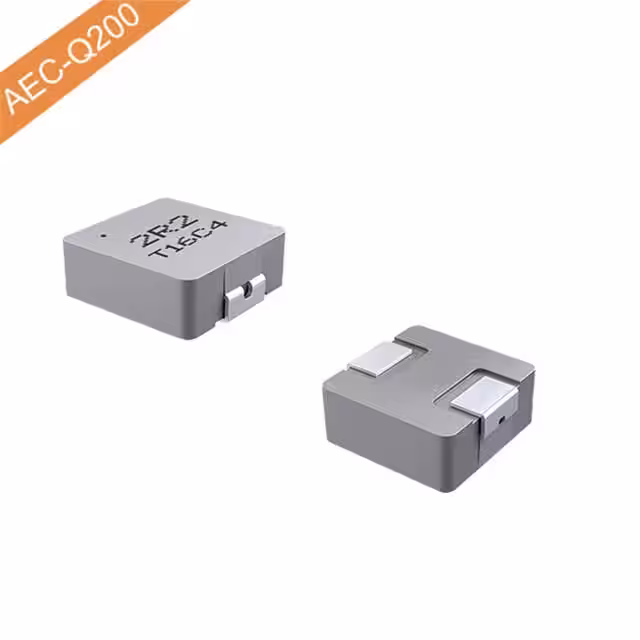

CSAB0730-220MSMD MOLDING POWER CHOKE |
958 |
|
Datasheet |
CSAB0730 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 22 µH | ±20% | 2.5 A | 3.5A | Shielded | 200mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.118" (3.00mm) |
|
|
TMPC 1205HPV-4R7MG-D4.7 UH SHIELDED MOLDED INDUCTOR |
958 |
|
Datasheet |
TMPC1205HPV | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 4.7 µH | ±20% | 12 A | 27A | Unshielded | 15Ohm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|
|
CSAB0740-390MSMD MOLDING POWER CHOKE |
940 |
|
Datasheet |
CSAB0740 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 39 µH | ±20% | 2.2 A | 2.8A | Shielded | 280mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.157" (4.00mm) |
|
|
CSAB0750-470MSMD MOLDING POWER CHOKE |
696 |
|
Datasheet |
CSAB0750 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 47 µH | ±20% | 2.4 A | 2.5A | Shielded | 240mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.197" (5.00mm) |
