Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP2020CZET150M01FIXED IND 15UH 1.9A 265MOHM SMD |
1,894 |
|
Datasheet |
IHLP-2020CZ-01 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 15 µH | ±20% | 1.9 A | 2.5A | Shielded | 265mOhm Max | - | 13.5MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
MWLA0624S-1R5MTFIXED IND 1.5UH 20MOHM 15000MA |
1,490 |
|
Datasheet |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 1.5 µH | ±20% | 9 A | 15A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.094" (2.40mm) |
|
TMPC 1265HPV-220MG-D22 UH SHIELDED MOLDED INDUCTOR S |
1,187 |
|
Datasheet |
TMPC1265HPV | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | 22 µH | ±20% | 9 A | 12A | Unshielded | 37Ohm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|

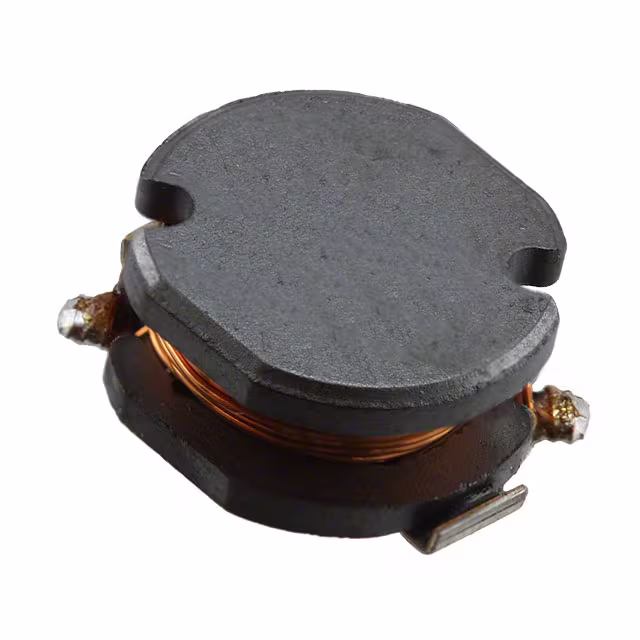

A814AY-391K=P3FIXED IND 390UH 490MA 1.09OHM SM |
1,101 |
|
Datasheet |
D10F | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 390 µH | ±10% | 490 mA | - | Unshielded | 1.09Ohm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.445" L x 0.382" W (11.30mm x 9.70mm) | 0.197" (5.00mm) |
|

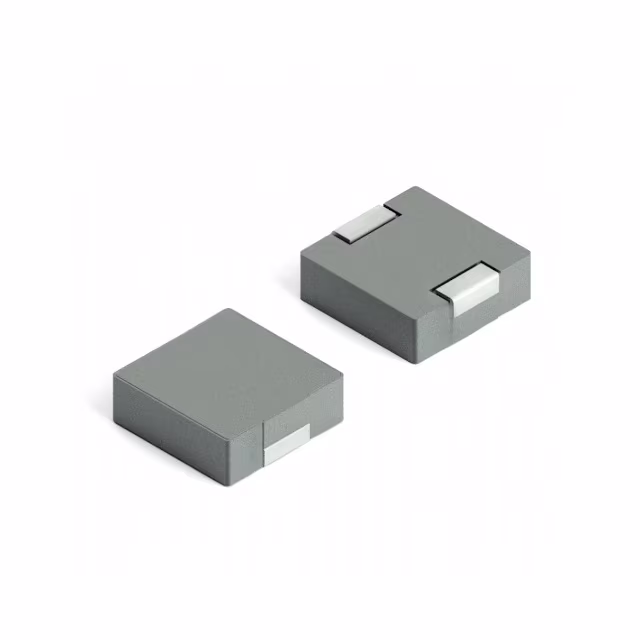

XFHCL6-R68MFIXED IND 680NH 15A 5.5 MOHM SMD |
1,000 |
|
Datasheet |
XFHCL6 | - | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 15 A | 25A | Shielded | 5.5mOhm Max | - | 62MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
CSAB0730-1R5MSMD MOLDING POWER CHOKE |
984 |
|
Datasheet |
CSAB0730 | 2-SMD | Cut Tape (CT) | Active | Molded | Alloy Powder | 1.5 µH | ±20% | 10.9 A | 14A | Shielded | 12.1mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | 2-SMD | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.118" (3.00mm) |
|
|
TMPC 1265HPV-4R7MG-D4.7 UH SHIELDED MOLDED INDUCTOR |
975 |
|
Datasheet |
TMPC1265HPV | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | 4.7 µH | ±20% | 13.5 A | 28A | Unshielded | 8.4Ohm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
TMPC 1265HPV-1R0MG-D1.0 UH SHIELDED MOLDED INDUCTOR |
974 |
|
Datasheet |
TMPC1265HPV | Nonstandard | Cut Tape (CT) | Active | - | Carbonyl Powder | 1 µH | ±20% | 30 A | 48A | Unshielded | 2.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
TMPC 1265HPV-100MG-D10 UH SHIELDED MOLDED INDUCTOR S |
964 |
|
Datasheet |
TMPC1265HPV | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | 10 µH | ±20% | 10 A | 15.5A | Unshielded | 16.5Ohm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|
CLF7045T-1R5N-DFIXED IND 1.5UH 4.9A 14.3MOHM SM |
880 |
|
Datasheet |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 4.9 A | 7.3A | Shielded | 14.3mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.189" (4.80mm) |
|
|
TMPC 1265HPV-1R5MG-D1.5 UH SHIELDED MOLDED INDUCTOR |
463 |
|
Datasheet |
TMPC1265HPV | Nonstandard | Cut Tape (CT) | Active | - | Carbonyl Powder | 1.5 µH | ±20% | 27 A | 45A | Unshielded | 3mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
CLF7045T-151M-DFIXED IND 150UH 610MA 576MOHM SM |
245 |
|
Datasheet |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 610 mA | 670mA | Shielded | 576mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.189" (4.80mm) |
|
XFHCL6-R20MFIXED IND 200NH 24A 3 MOHM SMD |
1,000 |
|
Datasheet |
XFHCL6 | - | Tape & Reel (TR) | Active | Molded | - | 200 nH | ±20% | 24 A | 41A | Shielded | 3mOhm Max | - | 150MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
CSAC0730-R22MSMD MOLDING POWER CHOKE |
984 |
|
Datasheet |
CSAC0730 | 2-SMD | Cut Tape (CT) | Active | Molded | Carbonyl Powder | 220 nH | ±20% | 21 A | 35A | Shielded | 3.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | 2-SMD | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.118" (3.00mm) |
|
DR124-102-RFIXED IND 1MH 440MA 3.477OHM SMD |
721 |
|
Datasheet |
DR124 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 440 mA | 530mA | Shielded | 3.477Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
EXL1V0606-1R0-RFIXED IND 1UH 19A 4.29 MOHM SMD |
500 |
|
Datasheet |
EXL1V0606 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 1 µH | ±20% | 19 A | 16A | Shielded | 4.29mOhm Max | - | 37MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.236" (6.00mm) |
|

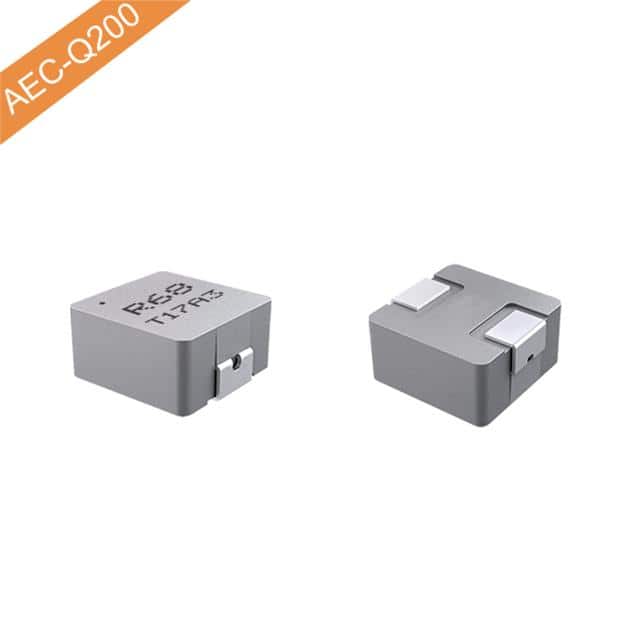

CSAB0530-4R7MSMD MOLDING POWER CHOKE |
9,143 |
|
Datasheet |
CSAB0530 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 4.7 µH | ±20% | 4.1 A | 5A | Shielded | 60mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.197" W (5.40mm x 5.00mm) | 0.118" (3.00mm) |
|
SPM3015T-4R7MFIXED IND 4.7UH 1.8A 218.2 MOHM |
2,585 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 1.8 A | 2.1A | Shielded | 218.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.059" (1.50mm) |
|
|
CSAB0530-1R0MSMD MOLDING POWER CHOKE |
1,979 |
|
Datasheet |
CSAB0530 | 2-SMD | Cut Tape (CT) | Active | Molded | Alloy Powder | 1 µH | ±20% | 8.7 A | 12A | Shielded | 14mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | 2-SMD | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
CSAB0530-5R6MSMD MOLDING POWER CHOKE |
1,970 |
|
Datasheet |
CSAB0530 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 5.6 µH | ±20% | 3.9 A | 4.5A | Shielded | 65mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
