Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0603DC-9N1XGRWFIXED IND 9.1NH 2.26A 60MOHM SMD |
8,396 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 9.1 nH | ±2% | 2.26 A | - | Unshielded | 60mOhm Max | 97 @ 900MHz | 4.5GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
MPX1D0520LR47FIXED IND 470NH 12A 7.8 MOHM SMD |
2,448 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 470 nH | ±20% | 12 A | 14A | Shielded | 7.8mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.079" (2.00mm) |
|
|
0603DC-36NXGRWFIXED IND 36NH 1.49A 134MOHM SMD |
7,842 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 36 nH | ±2% | 1.49 A | - | Unshielded | 134mOhm Max | 79 @ 900MHz | 2.35GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-47NXGRWFIXED IND 47NH 1.2A 200MOHM SMD |
7,412 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 47 nH | ±2% | 1.2 A | - | Unshielded | 200mOhm Max | 73 @ 900MHz | 2GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-68NXGRWFIXED IND 68NH 890MA 372MOHM SMD |
7,390 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 68 nH | ±2% | 890 mA | - | Unshielded | 372mOhm Max | 63 @ 900MHz | 1.65GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-R47XGRWFIXED IND 470NH 220MA 5.4OHM SMD |
7,318 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 470 nH | ±2% | 220 mA | - | Unshielded | 5.4Ohm Max | - | 600MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-51NXGRWFIXED IND 51NH 1.17A 216MOHM SMD |
7,230 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 51 nH | ±2% | 1.17 A | - | Unshielded | 216mOhm Max | 77 @ 900MHz | 1.95GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-R33XGRWFIXED IND 330NH 300MA 2.93OHM SM |
7,046 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 330 nH | ±2% | 300 mA | - | Unshielded | 2.93Ohm Max | - | 700MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-6N2XGRWFIXED IND 6.2NH 2.58A 48MOHM SMD |
7,036 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 6.2 nH | ±2% | 2.58 A | - | Unshielded | 48mOhm Max | 84 @ 900MHz | 6.6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-20NXGRWFIXED IND 20NH 1.92A 84MOHM SMD |
6,984 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 20 nH | ±2% | 1.92 A | - | Unshielded | 84mOhm Max | 80 @ 900MHz | 3.7GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-43NXGRWFIXED IND 43NH 1.3A 176MOHM SMD |
6,928 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 43 nH | ±2% | 1.3 A | - | Unshielded | 176mOhm Max | 82 @ 900MHz | 2.1GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-R39XGRWFIXED IND 390NH 260MA 3.92OHM SM |
6,819 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 390 nH | ±2% | 260 mA | - | Unshielded | 3.92Ohm Max | - | 650MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-R15XGRWFIXED IND 150NH 520MA 1.05OHM SM |
6,710 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 150 nH | ±2% | 520 mA | - | Unshielded | 1.05Ohm Max | 47 @ 900MHz | 1.1GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-30NXGRWFIXED IND 30NH 1.73A 103MOHM SMD |
6,290 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 30 nH | ±2% | 1.73 A | - | Unshielded | 103mOhm Max | 77 @ 900MHz | 3GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-22NXGRWFIXED IND 22NH 1.75A 95MOHM SMD |
6,088 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 22 nH | ±2% | 1.75 A | - | Unshielded | 95mOhm Max | 88 @ 900MHz | 2.7GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-16NXGRWFIXED IND 16NH 2.04A 74MOHM SMD |
6,061 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 16 nH | ±2% | 2.04 A | - | Unshielded | 74mOhm Max | 82 @ 900MHz | 3.4GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-82NXGRWFIXED IND 82NH 830MA 424MOHM SMD |
6,020 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 82 nH | ±2% | 830 mA | - | Unshielded | 424mOhm Max | 66 @ 900MHz | 1.55GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-R27XGRWFIXED IND 270NH 360MA 2.06OHM SM |
5,822 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 270 nH | ±2% | 360 mA | - | Unshielded | 2.06Ohm Max | - | 850MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|

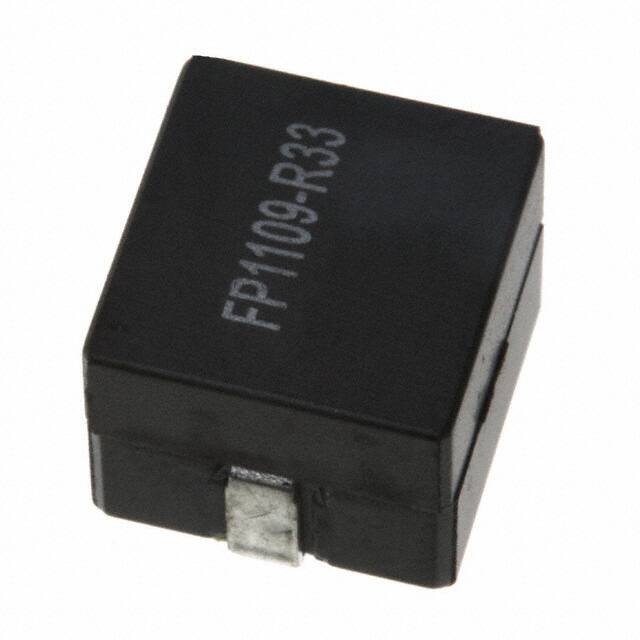

FP1109-R33-RFIXED IND 311NH 35A 0.42MOHM SMD |
1,945 |
|
Datasheet |
FLAT-PAC, FP1109 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 311 nH | ±10% | 35 A | 44A | Unshielded | 0.42mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.441" L x 0.441" W (11.20mm x 11.20mm) | 0.354" (9.00mm) |
|
|
0603DC-62NXGRWFIXED IND 62NH 970MA 312MOHM SMD |
5,571 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 62 nH | ±2% | 970 mA | - | Unshielded | 312mOhm Max | 73 @ 900MHz | 2GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
