Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3632B103LTFIXED IND 10MH 95MA 26 OHM SMD |
6,000 |
|
Datasheet |
3632, Sigma Inductors | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 mH | ±15% | 95 mA | - | Shielded | 26Ohm Max | 110 @ 79.6kHz | 500kHz | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.374" W (10.50mm x 9.50mm) | 0.307" (7.80mm) |
|
|
THMA040HS-6R8MNIND 6.8UH 312MOHM 1.5A |
5,000 |
|
Datasheet |
THMA040HS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 6.8 µH | ±20% | 1.5 A | 1.8A | Unshielded | 312mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.161" W (4.30mm x 4.10mm) | 0.031" (0.80mm) |
|

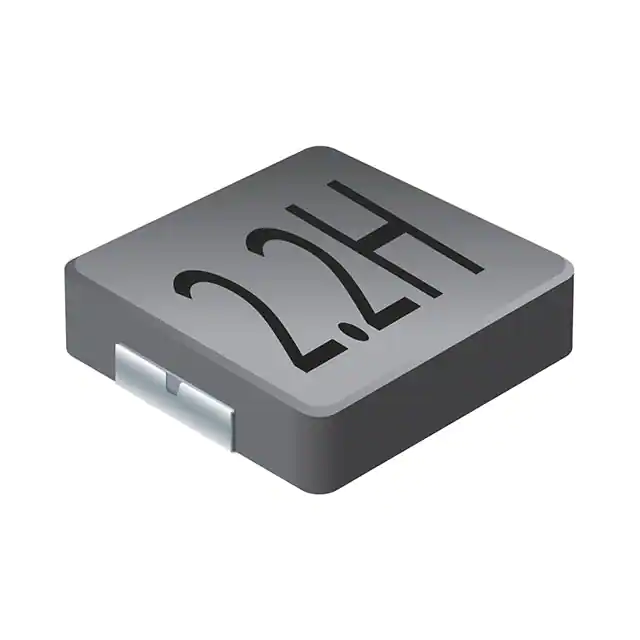

SRP3020C-2R2MFIXED IND 2.2UH 3.5A 75 MOHM SMD |
3,419 |
|
Datasheet |
SRP3020C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 2.2 µH | ±20% | 3.5 A | 3.7A | Shielded | 75mOhm Max | 10 @ 100kHz | 75MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
AMDLA4020S-1R5MTFIXED IND 1.5UH 4.8A 26MOHM SMD |
2,418 |
|
Datasheet |
AMDLA4020S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 4.8 A | 7.5A | Shielded | 26mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.173" L x 0.157" W (4.40mm x 4.00mm) | 0.079" (2.00mm) |
|
|
ETQ-P3M1R5YFNFIXED IND 1.5UH 5.6A 11 MOHM SMD |
1,969 |
|
Datasheet |
PCC-M0630M | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | Metal Composite | 1.5 µH | ±20% | 5.6 A | - | Shielded | 11mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.236" W (6.50mm x 6.00mm) | 0.118" (3.00mm) |
|
|
SRP3020C-8R2MFIXED IND 8.2UH 1.4A 390MOHM SMD |
1,914 |
|
Datasheet |
SRP3020C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 8.2 µH | ±20% | 1.4 A | 1.4A | Shielded | 390mOhm Max | 10 @ 100kHz | 27MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
SIDSP-SD1280-101MFIXED IND 100UH SMD 2.4A 164MOHM |
1,870 |
|
Datasheet |
SIDSP-SD1280 | Nonstandard | Bulk | Active | - | - | 100 µH | ±20% | 2.4 A | 3.36A | Shielded | 164mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.317" (8.05mm) |
|
VLF252010MT-1R0N-CAFIXED IND 1UH 2.25A 59 MOHM SMD |
1,795 |
|
Datasheet |
VLF-M-CA | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.25 A | 1.41A | Shielded | 59mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

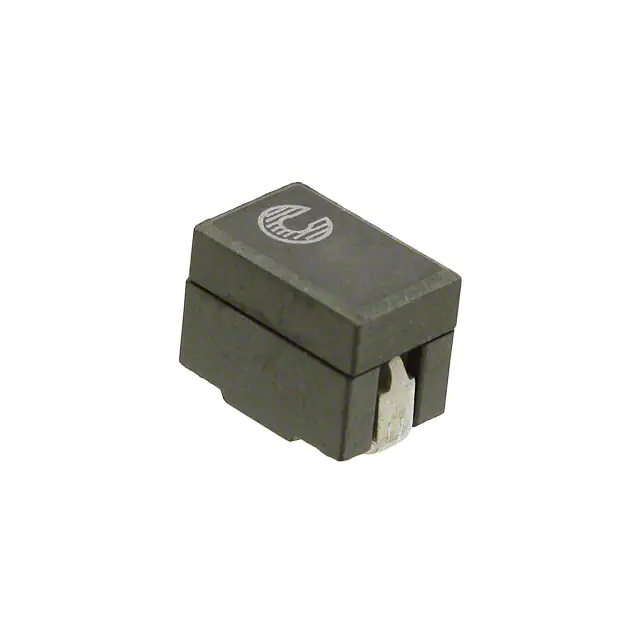

FP0906R1-R28-RFIXED IND 280NH 51A 0.29MOHM SMD |
3,631 |
|
Datasheet |
FP0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 280 nH | ±10% | 51 A | 29A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.370" L x 0.244" W (9.40mm x 6.20mm) | 0.315" (8.00mm) |
|
|
VLF252010MT-6R8M-CAFIXED IND 6.8UH 850MA 360MOHM SM |
1,676 |
|
Datasheet |
VLF-M-CA | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 850 mA | 530mA | Shielded | 360mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
SRP0320-R47KFIXED IND 470NH 7.4A 14.6MOHM SM |
2,500 |
|
Datasheet |
SRP0320 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 470 nH | ±10% | 7.4 A | 12A | Shielded | 14.6mOhm Max | 19 @ 25.2MHz | 85MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.134" L x 0.122" W (3.40mm x 3.10mm) | 0.079" (2.00mm) |
|
CTLQ1812NF-331K330UH 95MA SMD WW INDUCTOR |
2,490 |
|
Datasheet |
CTLQ1812NF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±10% | 95 mA | - | Unshielded | 8.2Ohm Max | 40 @ 796kHz | 3.6MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
ETQ-P3WR47WFNFIXED IND 470NH 20A 4.2 MOHM SMD |
1,490 |
|
Datasheet |
PCC-M0630W | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | Metal Composite | 470 nH | ±20% | 20 A | - | Shielded | 4.2mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
SQ10B-1R0MHFFIXED IND 1UH 22A 4.05 MOHM SMD |
1,400 |
|
Datasheet |
SQ10 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±20% | 22 A | 33A | Shielded | 4.05mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.327" W (12.50mm x 8.30mm) | 0.413" (10.50mm) |
|
FP0705R2-R15-RFIXED IND 150NH 38A 0.32MOHM SMD |
3,250 |
|
Datasheet |
FLAT-PAC, FP0705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±10% | 38 A | 30A | Unshielded | 0.32mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.195" (4.95mm) |
|
|
RL1011-100-RFIXED IND 10.3UH 3.62A 29MOHM TH |
4,356 |
|
Datasheet |
RL1011 | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 10.3 µH | ±10% | 3.62 A | 4.67A | Unshielded | 29mOhm Max | - | 16MHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.413" (10.50mm) |
|
HM79-108R2LFTR13FIXED IND 8.2UH 840MA 146 MOHM |
1,491 |
|
Datasheet |
HM79 | Nonstandard | Cut Tape (CT) | Discontinued at Digi-Key | Wirewound | - | 8.2 µH | ±20% | 840 mA | - | Unshielded | 146mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) |
|
0618CDMCCDS-R68MCFIXED IND 680NH 9.8A 12MOHM SMD |
1,391 |
|
Datasheet |
0618CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 680 nH | ±20% | 9.8 A | 17A | Shielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.071" (1.80mm) |
|
VLF252012MT-R47N-CAFIXED IND 470NH 3.45A 29MOHM SMD |
1,370 |
|
Datasheet |
VLF-M-CA | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 nH | ±30% | 3.45 A | 2.1A | Shielded | 29mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
PA4341.471NLTFIXED IND 470NH 17.5A 4.2MOHM SM |
12,243 |
|
Datasheet |
PA4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 17.5 A | 26A | Shielded | 4.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
