Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0603DC-R13XJRWFIXED IND 130NH 590MA 804MOHM SM |
4,233 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 130 nH | ±5% | 590 mA | - | Unshielded | 804mOhm Max | 50 @ 900MHz | 1.15GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-R15XJRWFIXED IND 150NH 520MA 1.05OHM SM |
4,191 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 150 nH | ±5% | 520 mA | - | Unshielded | 1.05Ohm Max | 47 @ 900MHz | 1.1GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-R12XJRWFIXED IND 120NH 600MA 765MOHM SM |
4,154 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 120 nH | ±5% | 600 mA | - | Unshielded | 765mOhm Max | 52 @ 900MHz | 1.2GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-20NXJRWFIXED IND 20NH 1.92A 84MOHM SMD |
4,060 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 20 nH | ±5% | 1.92 A | - | Unshielded | 84mOhm Max | 80 @ 900MHz | 3.7GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-56NXJRWFIXED IND 56NH 1.03A 260MOHM SMD |
3,882 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 56 nH | ±5% | 1.03 A | - | Unshielded | 260mOhm Max | 72 @ 900MHz | 1.85GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-6N2XJRWFIXED IND 6.2NH 2.58A 48MOHM SMD |
3,822 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 6.2 nH | ±5% | 2.58 A | - | Unshielded | 48mOhm Max | 84 @ 900MHz | 6.6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-91NXJRWFIXED IND 91NH 710MA 576MOHM SMD |
3,807 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 91 nH | ±5% | 710 mA | - | Unshielded | 576mOhm Max | 64 @ 900MHz | 1.45GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-R18XJRWFIXED IND 180NH 440MA 1.39OHM SM |
3,803 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 180 nH | ±5% | 440 mA | - | Unshielded | 1.39Ohm Max | 44 @ 900MHz | 1GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-9N1XJRWFIXED IND 9.1NH 2.26A 60MOHM SMD |
3,767 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 9.1 nH | ±5% | 2.26 A | - | Unshielded | 60mOhm Max | 97 @ 900MHz | 4.5GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-82NXJRWFIXED IND 82NH 830MA 424MOHM SMD |
3,747 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 82 nH | ±5% | 830 mA | - | Unshielded | 424mOhm Max | 66 @ 900MHz | 1.55GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-3N3XJRWFIXED IND 3.3NH 2.77A 42MOHM SMD |
3,599 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 3.3 nH | ±5% | 2.77 A | - | Unshielded | 42mOhm Max | 94 @ 900MHz | 9.3GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-18NXJRWFIXED IND 18NH 2A 78 MOHM SMD |
1,894 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 18 nH | ±5% | 2 A | - | Unshielded | 78mOhm Max | 80 @ 900MHz | 2.95GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
DC14G-00-RFIXED IND 150NH |
1,835 |
|
- |
- | - | Tray | Active | - | - | 150 nH | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RL1218-101-RFIXED IND 100UH 2.31A 102MOHM TH |
3,192 |
|
Datasheet |
RL1218 | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 2.31 A | 3.16A | Unshielded | 102mOhm Max | - | 3MHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.480" Dia (12.20mm) | 0.709" (18.00mm) |
|
|
0603DC-75NXJRWFIXED IND 75NH 860MA 396MOHM SMD |
1,784 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 75 nH | ±5% | 860 mA | - | Unshielded | 396mOhm Max | 62 @ 900MHz | 1.6GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-10NXJRWFIXED IND 10NH 2.26A 60MOHM SMD |
1,497 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 10 nH | ±5% | 2.26 A | - | Unshielded | 60mOhm Max | 92 @ 900MHz | 4.1GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|

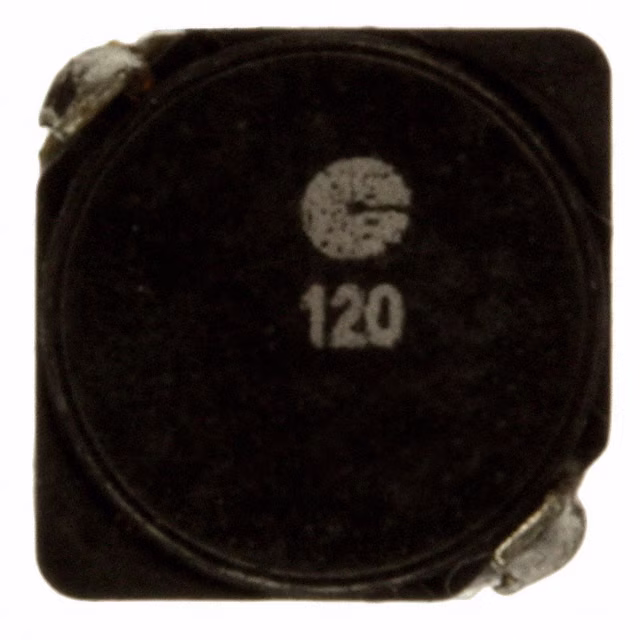

SD6030-120-RFIXED IND 11.3UH 1.99A 76MOHM SM |
2,242 |
|
Datasheet |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 11.3 µH | ±30% | 1.99 A | 1.2A | Shielded | 76mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
SD6030-221-RFIXED IND 210.9UH 500MA 1.2 OHM |
4,635 |
|
Datasheet |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 210.9 µH | ±30% | 500 mA | 300mA | Shielded | 1.2Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
HCMA0503-220-RFIXED IND 22UH 1.9A 270 MOHM SMD |
3,451 |
|
Datasheet |
HCMA0503 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 22 µH | ±20% | 1.9 A | 1.9A | Shielded | 270mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|
CTMC1812SF-100KSMD FERRITE CORE WW INDUCTOR |
13,532 |
|
Datasheet |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 250 mA | - | Unshielded | 1.6Ohm Max | 50 @ 2.52MHz | 22MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
