Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM5018-1R0MHFFIXED IND 1UH 29A 2.5 MOHM SMD |
12,500 |
|
Datasheet |
SM5018 | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 1 µH | ±20% | 29 A | 50A | Shielded | 2.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.197" (5.00mm) |
|
CTMC1812SF-102JSMD FERRITE CORE WW INDUCTOR |
1,980 |
|
Datasheet |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 30 mA | - | Unshielded | 40Ohm Max | 20 @ 252kHz | 2.5MHz | - | -40°C ~ 125°C | 252 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

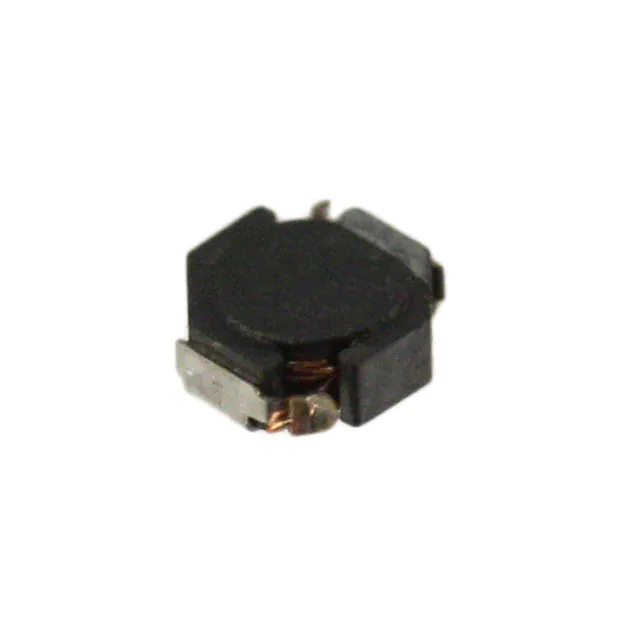

VLF3012ST-6R8MR78FIXED IND 6.8UH 780MA 220MOHM SM |
1,661 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 780 mA | - | Shielded | 220mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.047" (1.20mm) |
|
PM4340.152NLTFIXED IND 1.5UH 6A 25 MOHM SMD |
1,644 |
|
Datasheet |
PM4340.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 6 A | 10A | Shielded | 25mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.118" (3.00mm) |
|
|
PM4340.153NLTFIXED IND 15UH 2.1A 190MOHM SMD |
1,641 |
|
Datasheet |
PM4340.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 2.1 A | 2.6A | Shielded | 190mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.118" (3.00mm) |
|
|
CTMC1812SF-151JSMD FERRITE CORE WW INDUCTOR |
1,510 |
|
Datasheet |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±5% | 105 mA | - | Unshielded | 9Ohm Max | 40 @ 796kHz | 6MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CTMC1812SF-471JSMD FERRITE CORE WW INDUCTOR |
1,010 |
|
Datasheet |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±5% | 62 mA | - | Unshielded | 26Ohm Max | 40 @ 796kHz | 3.5MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CTMC1812SF-221JSMD FERRITE CORE WW INDUCTOR |
1,005 |
|
Datasheet |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±5% | 100 mA | - | Unshielded | 10Ohm Max | 40 @ 796kHz | 5MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
B82498B3101J000SMT-INDUCTOR 0805 100 NH 5% |
3,830 |
|
Datasheet |
B82498B | 0805 (2012 Metric) | Tape & Reel (TR) | Last Time Buy | Wirewound | Ceramic | 100 nH | ±5% | 350 mA | - | Unshielded | 260mOhm Max | 40 @ 150MHz | 1.31GHz | - | - | 150 MHz | - | Surface Mount | 0805 | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0.057" (1.45mm) |
|
|
B82498B3390J000SMT-INDUCTOR 0805 39 NH 5% |
3,000 |
|
Datasheet |
B82498B | 0805 (2012 Metric) | Tape & Reel (TR) | Last Time Buy | Wirewound | Ceramic | 39 nH | ±5% | 560 mA | - | Unshielded | 100mOhm Max | 50 @ 250MHz | 2.05GHz | - | - | 250 MHz | - | Surface Mount | 0805 | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0.057" (1.45mm) |
|
|
B82498B1821J000SMT-INDUCTOR 0805 820 NH 5% |
2,940 |
|
Datasheet |
B82498B1 | 0805 (2012 Metric) | Tape & Reel (TR) | Last Time Buy | Wirewound | Ferrite | 820 nH | ±5% | 240 mA | - | Unshielded | 550mOhm Max | 20 @ 25.2MHz | 400MHz | - | - | 25.2 MHz | - | Surface Mount | 0805 | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0.057" (1.45mm) |
|
|
B82498B1681J000SMT-INDUCTOR 0805 680 NH 5% |
2,366 |
|
Datasheet |
- | - | Tape & Reel (TR) | Last Time Buy | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
VLF252010MT-R47N-CAFIXED IND 470NH 3.35A 29MOHM SMD |
1,968 |
|
Datasheet |
VLF-M-CA | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 nH | ±30% | 3.35 A | 2.04A | Shielded | 29mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
HCM1A0703-R56-RFIXED IND 560NH 10.3A 5.2MOHM SM |
2,352 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 560 nH | ±20% | 10.3 A | 14A | Shielded | 5.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|
HCM1A0503-R68-RFIXED IND 680NH 8A 9.1 MOHM SMD |
4,405 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 680 nH | ±20% | 8 A | 12A | Shielded | 9.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|
SRP3020C-R10YFIXED IND 100NH 10A 7 MOHM SMD |
5,873 |
|
Datasheet |
SRP3020C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 100 nH | ±30% | 10 A | 11.5A | Shielded | 7mOhm Max | 10 @ 100kHz | 208MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
|
CSAB1040A-3R3MSMD MOLDING POWER CHOKE |
4,760 |
|
Datasheet |
CSAB1040A | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 3.3 µH | ±20% | 10.7 A | 16A | Shielded | 11.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CSAB1040A-680MSMD MOLDING POWER CHOKE |
1,245 |
|
Datasheet |
CSAB1040A | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 68 µH | ±20% | 2.6 A | 3.8A | Shielded | 195mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
ETQ-P3WR68WFNFIXED IND 680NH 17A 5.5 MOHM SMD |
821 |
|
Datasheet |
PCC-M0630W | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | Metal Composite | 680 nH | ±20% | 17 A | - | Shielded | 5.5mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
SL3732H-R28KHFFIXED IND 280NH 51A 0.29MOHM SMD |
2,600 |
|
Datasheet |
SL3732H | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 280 nH | ±10% | 51 A | 35A | Shielded | 0.29mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.370" L x 0.244" W (9.40mm x 6.20mm) | 0.315" (8.00mm) |
