Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

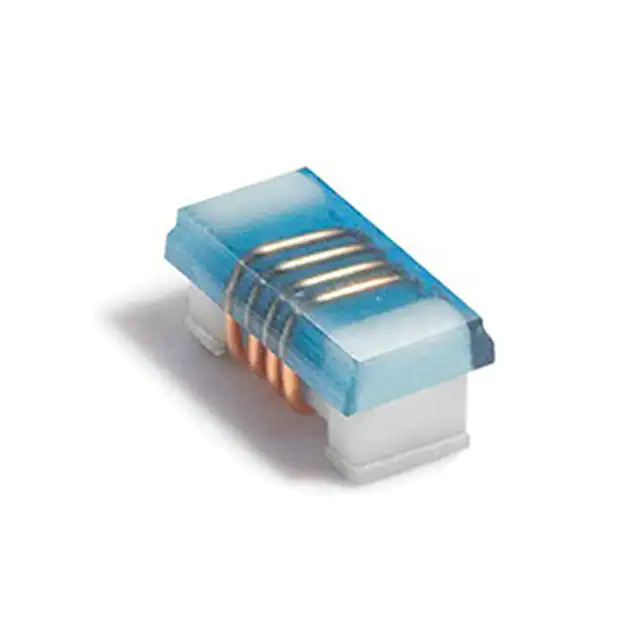

0603DC-5N1XJRWFIXED IND 5.1NH 2.65A 46MOHM SMD |
4,806 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 5.1 nH | ±5% | 2.65 A | - | Unshielded | 46mOhm Max | 88 @ 900MHz | 7.5GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-3N9XJRWFIXED IND 3.9NH 2.8A 40MOHM SMD |
4,795 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 3.9 nH | ±5% | 2.8 A | - | Unshielded | 40mOhm Max | 105 @ 900MHz | 11.25GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-51NXJRWFIXED IND 51NH 1.17A 216MOHM SMD |
4,771 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 51 nH | ±5% | 1.17 A | - | Unshielded | 216mOhm Max | 77 @ 900MHz | 1.95GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-68NXJRWFIXED IND 68NH 890MA 372MOHM SMD |
4,746 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 68 nH | ±5% | 890 mA | - | Unshielded | 372mOhm Max | 63 @ 900MHz | 1.65GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-62NXJRWFIXED IND 62NH 970MA 312MOHM SMD |
4,711 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 62 nH | ±5% | 970 mA | - | Unshielded | 312mOhm Max | 73 @ 900MHz | 2GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-R33XJRWFIXED IND 330NH 300MA 2.93OHM SM |
4,607 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 330 nH | ±5% | 300 mA | - | Unshielded | 2.93Ohm Max | - | 700MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-R27XJRWFIXED IND 270NH 360MA 2.06OHM SM |
4,577 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 270 nH | ±5% | 360 mA | - | Unshielded | 2.06Ohm Max | - | 850MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-36NXJRWFIXED IND 36NH 1.49A 134MOHM SMD |
4,558 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 36 nH | ±5% | 1.49 A | - | Unshielded | 134mOhm Max | 79 @ 900MHz | 2.35GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-R11XJRWFIXED IND 110NH 620MA 725MOHM SM |
4,556 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 110 nH | ±5% | 620 mA | - | Unshielded | 725mOhm Max | 55 @ 900MHz | 1.25GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-2N7XJRWFIXED IND 2.7NH 3.34A 29MOHM SMD |
4,540 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 2.7 nH | ±5% | 3.34 A | - | Unshielded | 29mOhm Max | 80 @ 900MHz | 11.4GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-47NXJRWFIXED IND 47NH 1.2A 200MOHM SMD |
4,510 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 47 nH | ±5% | 1.2 A | - | Unshielded | 200mOhm Max | 73 @ 900MHz | 2GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-6N8XJRWFIXED IND 6.8NH 2.58A 48MOHM SMD |
4,461 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 6.8 nH | ±5% | 2.58 A | - | Unshielded | 48mOhm Max | 100 @ 900MHz | 5.1GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-R30XJRWFIXED IND 300NH 320MA 2.66OHM SM |
4,434 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 300 nH | ±5% | 320 mA | - | Unshielded | 2.66Ohm Max | - | 750MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-27NXJRWFIXED IND 27NH 1.63A 116MOHM SMD |
4,406 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 27 nH | ±5% | 1.63 A | - | Unshielded | 116mOhm Max | 82 @ 900MHz | 2.5GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-15NXJRWFIXED IND 15NH 2.04A 74MOHM SMD |
4,405 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±5% | 2.04 A | - | Unshielded | 74mOhm Max | 87 @ 900MHz | 3.5GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-8N2XJRWFIXED IND 8.2NH 2.45A 53MOHM SMD |
4,357 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 8.2 nH | ±5% | 2.45 A | - | Unshielded | 53mOhm Max | 93 @ 900MHz | 6.25GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-R39XJRWFIXED IND 390NH 260MA 3.92OHM SM |
4,349 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 390 nH | ±5% | 260 mA | - | Unshielded | 3.92Ohm Max | - | 650MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-33NXJRWFIXED IND 33NH 1.55A 124MOHM SMD |
4,285 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 33 nH | ±5% | 1.55 A | - | Unshielded | 124mOhm Max | 74 @ 900MHz | 2.25GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-4N3XJRWFIXED IND 4.3NH 2.8A 40MOHM SMD |
4,282 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 4.3 nH | ±5% | 2.8 A | - | Unshielded | 40mOhm Max | 100 @ 900MHz | 10.6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-30NXJRWFIXED IND 30NH 1.73A 103MOHM SMD |
4,275 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 30 nH | ±5% | 1.73 A | - | Unshielded | 103mOhm Max | 77 @ 900MHz | 3GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
