Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMIM0402S-R47MG-DIND 0.47UH 5.4MOHM 14A |
2,420 |
|
Datasheet |
TMIM0402S | Nonstandard | Cut Tape (CT) | Active | Molded | Metal | 470 nH | ±20% | 14 A | 14A | Unshielded | 5.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.079" (2.00mm) |
|
|
PA3146.301HLTFIXED IND 300NH 28A 0.29MOHM SMD |
4,050 |
|
Datasheet |
PA3146.XXXHL | Nonstandard | Tape & Reel (TR) | Active | - | - | 300 nH | ±15% | 28 A | 32A | Shielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.540" L x 0.413" W (13.72mm x 10.50mm) | 0.299" (7.60mm) |
|
ASPI-0705-100K-TFIXED IND 10UH 2.3A 70 MOHM SMD |
4,345 |
|
Datasheet |
ASPI-0705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 2.3 A | - | Unshielded | 70mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
TMIM0403S-4R7MG-DIND 4.7UH 32.4MOHM 5.9A |
2,000 |
|
Datasheet |
TMIM0403S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 5.9 A | 5.1A | Unshielded | 32.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.118" (3.00mm) |
|
CTLQ1210NF-2R2K2.2UH 370MA SMD WW INDUCTOR |
1,988 |
|
Datasheet |
CTLQ1210NF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±10% | 370 mA | - | Unshielded | 800mOhm Max | 20 @ 1MHz | 50MHz | - | -25°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
AMPI0612GD100MTASMD POWER INDUCTORS 0612 10UH 20 |
1,977 |
|
Datasheet |
AMPI_GD | 2628 (6671 Metric) | Cut Tape (CT) | Active | - | Carbonyl Powder | 10 µH | ±20% | 2 A | 3.1A | Shielded | 250mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2628 | 0.260" Dia x 0.280" L (6.60mm x 7.10mm) | 0.047" (1.20mm) |
|
|
TMIM0403S-3R3MG-DIND 3.3UH 20.7MOHM 9A |
1,918 |
|
Datasheet |
TMIM0403S | Nonstandard | Cut Tape (CT) | Active | Molded | Metal | 3.3 µH | ±20% | 9 A | 6.5A | Unshielded | 20.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.118" (3.00mm) |
|
SDE6603-3R3MFIXED IND 3.3UH 2A 80 MOHM SMD |
1,800 |
|
Datasheet |
SDE6603 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2 A | 2A | Unshielded | 80mOhm Max | - | 70MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
TMIM0403S-R47MG-DIND 0.47UH 4.1MOHM 19A |
1,748 |
|
Datasheet |
TMIM0403S | Nonstandard | Cut Tape (CT) | Active | Molded | Metal | 470 nH | ±20% | 19 A | 18A | Unshielded | 4.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.118" (3.00mm) |
|
LQH31HNR21J03LFIXED IND 215NH 520MA 110MOHM SM |
1,664 |
|
Datasheet |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 215 nH | ±5% | 520 mA | - | - | 110mOhm | 60 @ 100MHz | 430MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
TMIM0403S-1R0MG-DIND 1UH 7.8MOHM 10A |
1,495 |
|
Datasheet |
TMIM0403S | Nonstandard | Cut Tape (CT) | Active | Molded | Metal | 1 µH | ±20% | 10 A | 11A | Unshielded | 7.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.118" (3.00mm) |
|
|
TMIM0403S-2R2MG-DIND 2.2UH 17.4MOHM 9.5A |
1,465 |
|
Datasheet |
TMIM0403S | Nonstandard | Cut Tape (CT) | Active | Molded | Metal | 2.2 µH | ±20% | 9.5 A | 7.5A | Unshielded | 17.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.118" (3.00mm) |
|

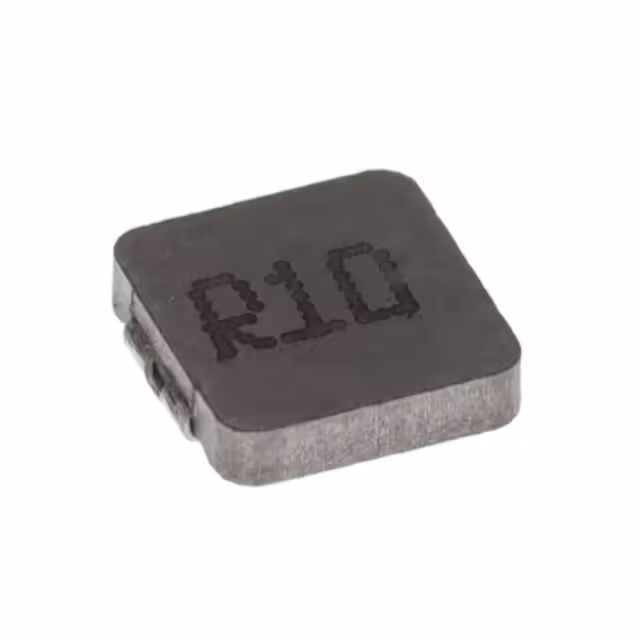

0410CDMCCDS-R10MCFIXED IND 100NH 14A 5.8MOHM SMD |
2,117 |
|
Datasheet |
0410CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 100 nH | ±20% | 14 A | 14A | Shielded | 5.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.039" (1.00mm) |
|
CTLQ1206NF-5R6J5.6UH 115MA SMD WW INDUCTOR |
1,990 |
|
Datasheet |
CTLQ1206NF | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 5.6 µH | ±5% | 115 mA | - | Unshielded | 2.34Ohm Max | 35 @ 8MHz | 28MHz | - | -25°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
CTLQ1206NF-2R2M2.2UH 140MA SMD WW INDUCTOR |
1,990 |
|
Datasheet |
CTLQ1206NF | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 140 mA | - | Unshielded | 910mOhm Max | 35 @ 10MHz | 50MHz | - | -25°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
MPIA4012V2-R47-RFIXED IND 470NH 5.6A 23 MOHM SMD |
4,574 |
|
Datasheet |
MPIA40-V2 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Metal Composite | 470 nH | ±20% | 5.6 A | 6.8A | Shielded | 23mOhm Max | - | 106MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.165" W (4.95mm x 4.20mm) | 0.047" (1.20mm) |
|

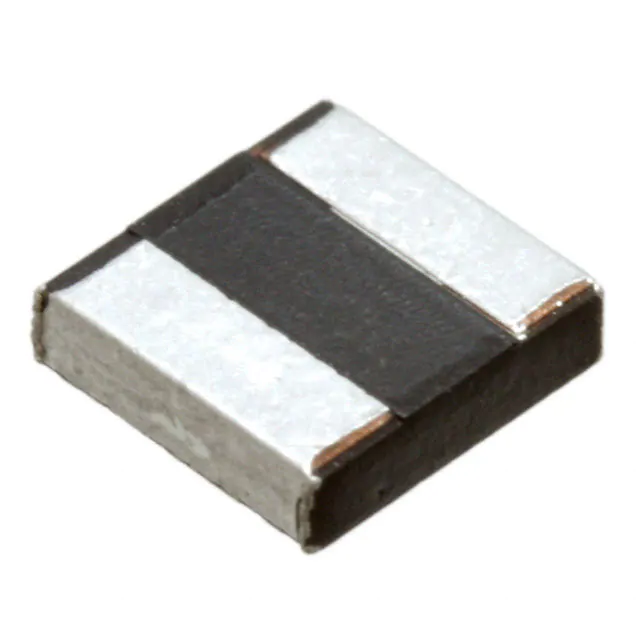

0412CDMCDS-2R2MCFIXED IND 2.2UH 2A 80 MOHM SMD |
1,741 |
|
Datasheet |
0412CDMC/DS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±20% | 2 A | 4.4A | Shielded | 80mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.047" (1.20mm) |
|

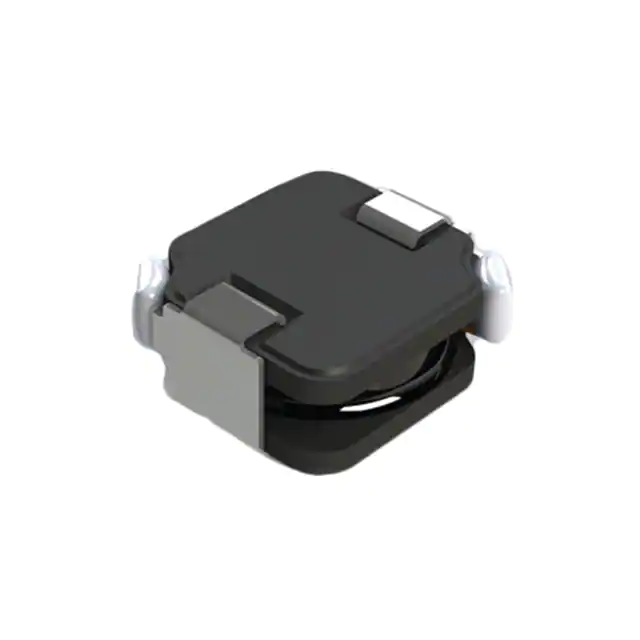

PA4333.102NLTFIXED IND 1UH 9.5A 8.7 MOHM SMD |
11,732 |
|
Datasheet |
PA4333.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 1 µH | ±20% | 9.5 A | 9.5A | Shielded | 8.7mOhm Max | - | 41MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.291" L x 0.268" W (7.40mm x 6.80mm) | 0.126" (3.20mm) |
|
|
PA4333.472NLTFIXED IND 4.7UH 3.8A 43.5MOHM SM |
5,878 |
|
Datasheet |
PA4333.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 4.7 µH | ±20% | 3.8 A | 3.8A | Shielded | 43.5mOhm Max | - | 15MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.291" L x 0.268" W (7.40mm x 6.80mm) | 0.126" (3.20mm) |
|
0410CDMCCDS-4R7MCFIXED IND 4.7UH 1.75A 243MOHM SM |
2,935 |
|
Datasheet |
0410CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 1.75 A | 1.9A | Shielded | 243mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.039" (1.00mm) |
