PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF-S350SPTC RESET FUSE 30V 3.5A STRAP |
2,282 |
|
Datasheet |
Strap | Multifuse®, MF-S | Bulk | Obsolete | Polymeric | 30V | 3.5 A | 6.3 A | 100 A | 3 s | 17 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.185" L x 0.522" W (30.10mm x 13.25mm) | - | 0.043" (1.10mm) | - |
|
|
MF-S420SPTC RESET FUSE 30V 4.2A STRAP |
4,783 |
|
Datasheet |
Strap | Multifuse®, MF-S | Bulk | Obsolete | Polymeric | 30V | 4.2 A | 7.6 A | 100 A | 6 s | 12 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.240" L x 0.522" W (31.50mm x 13.25mm) | - | 0.043" (1.10mm) | - |
|
|
MF-LR190SPTC RESET FUSE 15V 1.9A STRAP |
7,071 |
|
Datasheet |
Strap | Multifuse®, MF-LR | Bulk | Obsolete | Polymeric | 15V | 1.9 A | 3.9 A | 100 A | 5 s | 39 mOhms | 102 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.827" L x 0.199" W (21.00mm x 5.05mm) | - | 0.039" (1.00mm) | - |
|
|
MF-LR260SPTC RESET FUSE 15V 2.6A STRAP |
3,007 |
|
Datasheet |
Strap | Multifuse®, MF-LR | Bulk | Obsolete | Polymeric | 15V | 2.6 A | 5.8 A | 100 A | 5 s | 20 mOhms | 83 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.866" L x 0.199" W (22.00mm x 5.05mm) | - | 0.039" (1.00mm) | - |
|
|
MF-LR600SPTC RESET FUSE 10V 6A STRAP |
7,822 |
|
Datasheet |
Strap | Multifuse®, MF-LR | Bulk | Obsolete | Polymeric | 10V | 6 A | 11.7 A | 100 A | 5 s | 7 mOhms | 19 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.984" L x 0.587" W (25.00mm x 14.90mm) | - | 0.039" (1.00mm) | - |
|

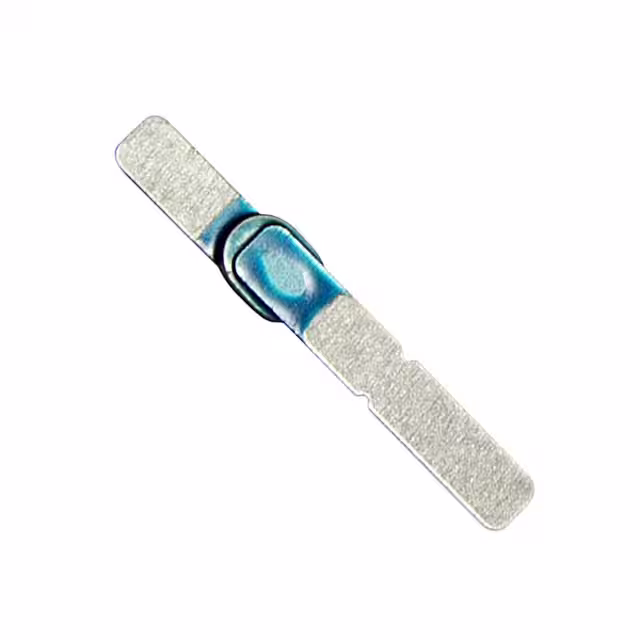

MXP370BDPTC RESET FUSE 6V 3.7A STRAP |
4,087 |
|
Datasheet |
Strap | PolySwitch®, MXP | Bag | Obsolete | Polymeric | 6V | 3.7 A | 9 A | 50 A | 5 s | 4 mOhms | 16 mOhms | - | - | - | - | - | User Defined | 0.429" L x 0.122" W (10.90mm x 3.11mm) | - | 0.043" (1.10mm) | - |

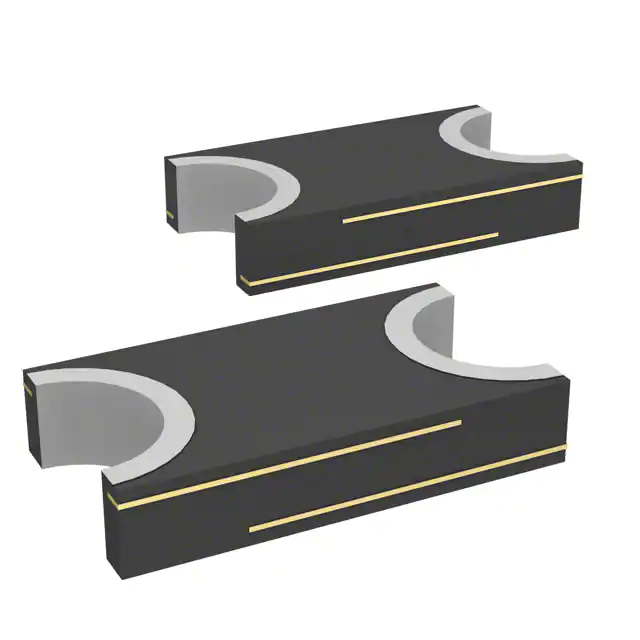

, Concave.jpg)
|
FEMTOSMDC005F-02POLYSWITCH RESET FUSE 0.05A SMD |
2,973 |
|
Datasheet |
0603 (1608 Metric), Concave | PolySwitch® | Tape & Reel (TR) | Active | Polymeric | 15V | 50 mA | 150 mA | 40 A | 100 ms | 3.8 Ohms | - | - | - | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.026" (0.65mm) | - |
|
|
FEMTOSMDC008F-02PTC RESET FUSE 15V 50MA 0603 |
8,605 |
|
Datasheet |
0603 (1608 Metric), Concave | PolySwitch®, femtoSMD | Tape & Reel (TR) | Active | Polymeric | 15V | 50 mA | 150 mA | 40 A | 100 ms | 3.8 Ohms | - | - | - | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.033" (0.85mm) | - |
|
|
FEMTOSMDC010F-02PTC RESET FUSE 12V 100MA 0603 |
8,105 |
|
Datasheet |
0603 (1608 Metric), Concave | PolySwitch®, femtoSMD | Tape & Reel (TR) | Active | Polymeric | 12V | 100 mA | 250 mA | 40 A | 100 ms | 1.7 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.033" (0.85mm) | - |
|
|
TRF250-145ST-B-0.5PTC RESET FUSE 60V 145MA RADIAL |
4,709 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF250 | Bag | Active | Polymeric | 60V (250V Int) | 145 mA | 290 mA | 3 A | 2.5 s | 3 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
|
|
TRF600-150-RCPTC RESET FUSE 250V 150MA RADIAL |
5,231 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF600 | Bag | Active | Polymeric | 250V (600V Int) | 150 mA | 300 mA | 40 A | 3 s | 9 Ohms | 22 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.354" L x 0.181" W (9.00mm x 4.60mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
|
B59980C0160A070PTC RESET FUSE 54V RADIAL DISC |
2,029 |
|
Datasheet |
Radial, Disc | B59980 | Bulk | Obsolete | Ceramic | 54V | - | - | 1 A | - | 16.5 Ohms | 25 Ohms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.256" Dia x 0.138" T (6.50mm x 3.50mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
1206L110/12WRPTC RESET FUSE 12V 1.1A 1206 |
8,451 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, 1206L | Tape & Reel (TR) | Active | Polymeric | 12V | 1.1 A | 2.2 A | 100 A | 100 ms | 40 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.030" (0.75mm) | - |
|
1812L750SLPRPTC RESET FUSE 6V 7.5A 1812 |
2,169 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 7.5 A | 15 A | 50 A | 2 s | 1 mOhms | 6 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.028" (0.70mm) | - |
|

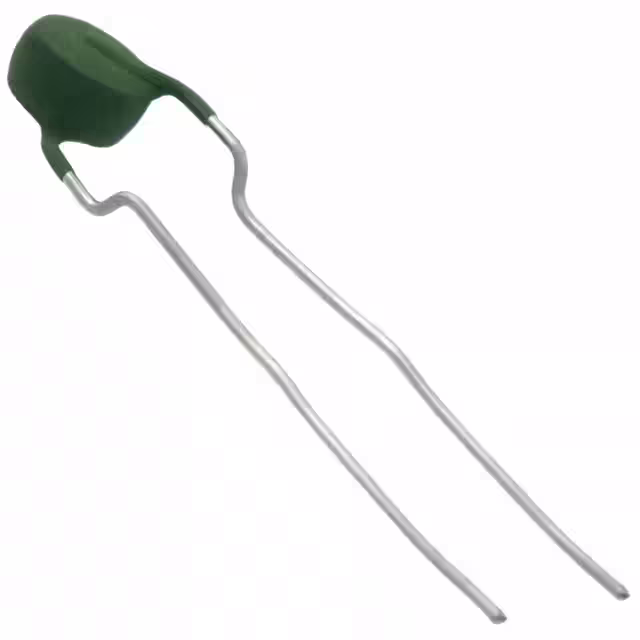

YQD100N150PTC RESET FUSE 265V RADIAL DISC |
7,491 |
|
Datasheet |
Radial, Disc | YQ | Bulk | Active | Ceramic | 265V | - | - | - | - | - | - | - | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.197" T (6.50mm x 5.00mm) | - | - | 0.201" (5.10mm) |
|
|
YQZ120N120PTC RESET FUSE 18V RADIAL DISC |
4,951 |
|
Datasheet |
Radial, Disc | YQ | Bulk | Active | Ceramic | 18V | - | - | - | - | - | - | - | 0°C ~ 60°C | - | - | - | Through Hole | - | - | - | - |
|
PTGL07AS2R7K2B51A0PTC RESET FUSE 30V 425MA RADIAL |
8,282 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 30V | 425 mA | 565 mA | 4.5 A | - | - | - | 2.7 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.287" Dia x 0.138" T (7.30mm x 3.50mm) | 0.484" (12.30mm) | - | 0.197" (5.00mm) |
|

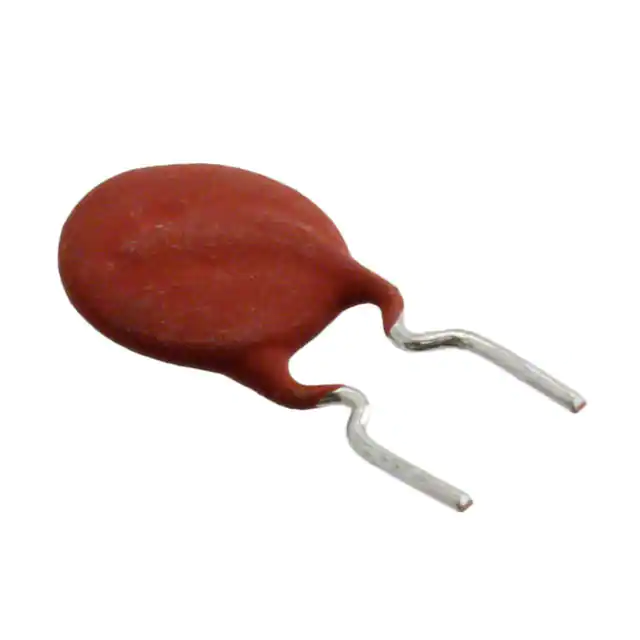

PTGL09BD2R2N2B51A0PTC RESET FUSE 24V 326MA RADIAL |
8,558 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 24V | 326 mA | 431 mA | 2 A | - | - | - | 2.2 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.374" Dia x 0.157" T (9.50mm x 4.00mm) | 0.610" (15.50mm) | - | 0.197" (5.00mm) |
|

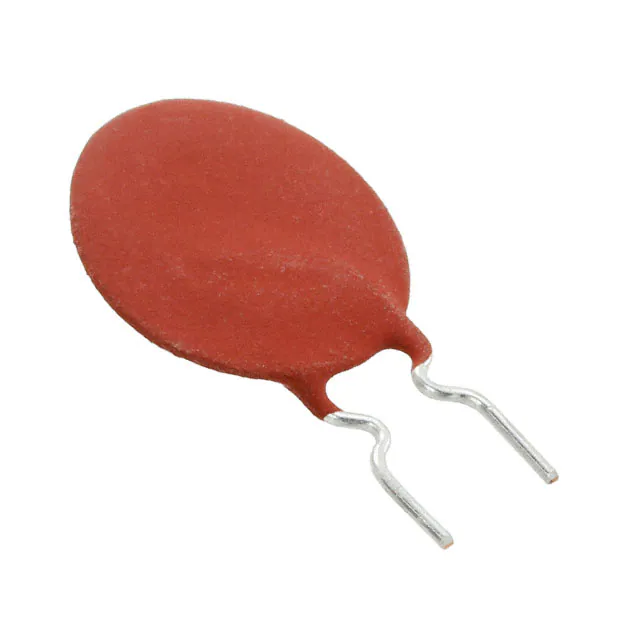

PTGLESARR15M1B51B0PTC RESET FUSE 16V 1.545A RADIAL |
7,945 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 16V | 1.545 A | 2.855 A | 10 A | - | - | - | 150 mOhms | -30°C ~ 85°C | - | - | - | Through Hole | 0.531" Dia x 0.138" T (13.50mm x 3.50mm) | 0.728" (18.50mm) | - | 0.197" (5.00mm) |
|

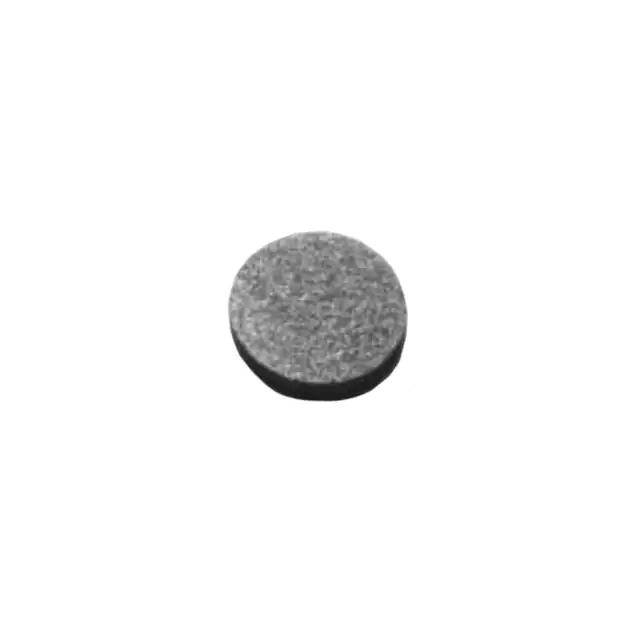

YS5940PTHPTC RESET FUSE HEATERS 40% |
4,051 |
|
Datasheet |
- | PTH | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
