PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

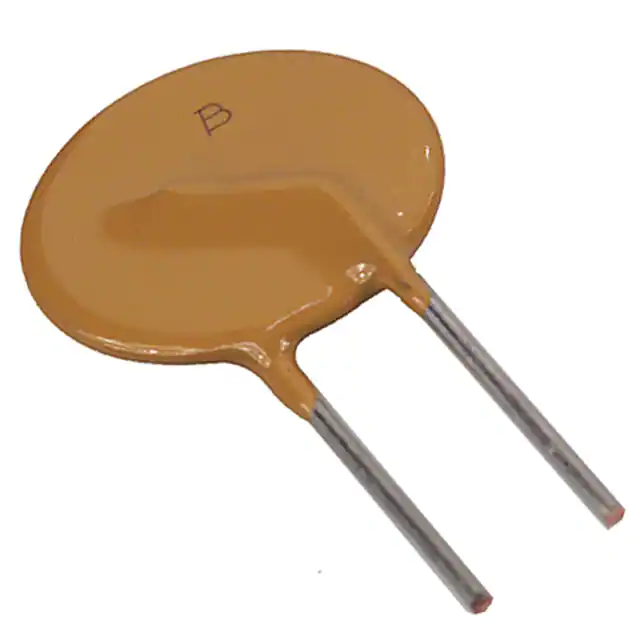

MF-RX110-2-99PTC RESET FUSE 60V 1.1A RADIAL |
8,960 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 1.1 A | 2.2 A | 40 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.512" Dia x 0.122" T (13.00mm x 3.10mm) | 0.709" (18.00mm) | - | 0.201" (5.10mm) |
|
|
MF-RX135-2PTC RESET FUSE 60V 1.35A RADIAL |
6,023 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 1.35 A | 2.7 A | 40 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.483" L x 0.122" W (12.26mm x 3.10mm) | 0.718" (18.26mm) | - | 0.201" (5.10mm) |
|
|
MF-RX135-2-99PTC RESET FUSE 60V 1.35A RADIAL |
9,238 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 1.35 A | 2.7 A | 40 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.483" L x 0.122" W (12.26mm x 3.10mm) | 0.718" (18.26mm) | - | 0.201" (5.10mm) |
|
|
MF-RX160-2PTC RESET FUSE 60V 1.6A RADIAL |
2,120 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 1.6 A | 3.2 A | 40 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.642" L x 0.122" W (16.30mm x 3.10mm) | 0.839" (21.30mm) | - | 0.201" (5.10mm) |
|
|
MF-RX160-2-99PTC RESET FUSE 60V 1.6A RADIAL |
4,887 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 1.6 A | 3.2 A | 40 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.642" L x 0.122" W (16.30mm x 3.10mm) | 0.839" (21.30mm) | - | 0.201" (5.10mm) |
|
|
MF-RX250-2PTC RESET FUSE 60V 2.5A RADIAL |
8,074 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 2.5 A | 5 A | 40 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.839" L x 0.122" W (21.30mm x 3.10mm) | 1.039" (26.40mm) | - | 0.402" (10.20mm) |
|
|
MF-RX250-2-99PTC RESET FUSE 60V 2.5A RADIAL |
7,710 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 2.5 A | 5 A | 40 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.839" L x 0.122" W (21.30mm x 3.10mm) | 1.039" (26.40mm) | - | 0.402" (10.20mm) |
|
|
MF-RX300-2PTC RESET FUSE 60V 3A RADIAL |
4,327 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 3 A | 6 A | 40 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.980" L x 0.122" W (24.90mm x 3.10mm) | 1.181" (30.00mm) | - | 0.402" (10.20mm) |
|
|
MF-RX300-2-99PTC RESET FUSE 60V 3A RADIAL |
4,506 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 3 A | 6 A | 40 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.980" L x 0.122" W (24.90mm x 3.10mm) | 1.181" (30.00mm) | - | 0.402" (10.20mm) |
|

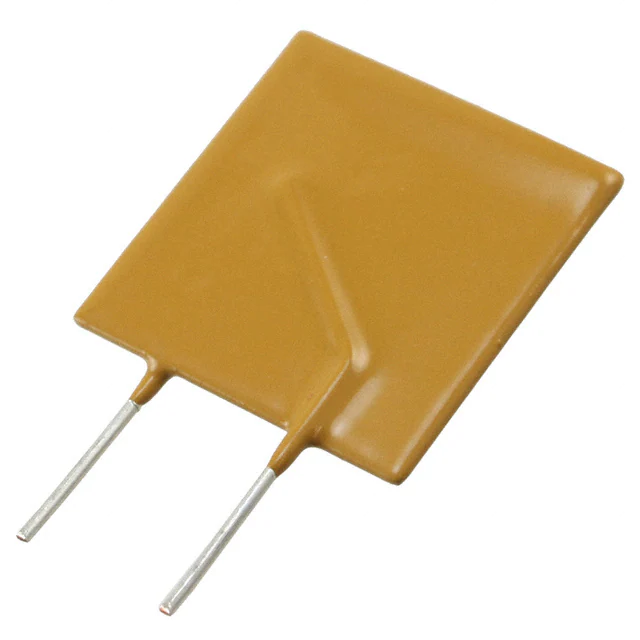

MF-RX375/72-2-99PTC RESET FUSE 72V 3.75A RADIAL |
7,549 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/72 | Tape & Reel (TR) | Obsolete | Polymeric | 72V | 3.75 A | 7.5 A | 40 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.926" L x 0.122" W (23.51mm x 3.10mm) | 1.161" (29.50mm) | - | 0.402" (10.20mm) |
|
|
MF-RX375-2PTC RESET FUSE 60V 3.75A RADIAL |
6,229 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 3.75 A | 7.5 A | 40 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 1.118" L x 0.122" W (28.40mm x 3.10mm) | 1.319" (33.50mm) | - | 0.402" (10.20mm) |
|
|
MF-RX375-2-99PTC RESET FUSE 60V 3.75A RADIAL |
6,496 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 3.75 A | 7.5 A | 40 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 1.118" L x 0.122" W (28.40mm x 3.10mm) | 1.319" (33.50mm) | - | 0.402" (10.20mm) |
|
MF-SM050-2-006PTC RESET FUSE 60V 500MA 2SMD |
3,796 |
|
Datasheet |
2-SMD | Multifuse®, MF-SM | Tape & Reel (TR) | Active | Polymeric | 60V | 500 mA | 1 A | 40 A | 4 s | 350 mOhms | 1.4 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.287" L x 0.214" W (7.31mm x 5.44mm) | - | 0.125" (3.18mm) | - |
|
MF-SM075-2-006PTC RESET FUSE 30V 750MA 2SMD |
5,490 |
|
Datasheet |
2-SMD | Multifuse®, MF-SM | Tape & Reel (TR) | Active | Polymeric | 30V | 750 mA | 1.5 A | 80 A | 300 ms | 230 mOhms | 1 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.287" L x 0.214" W (7.31mm x 5.44mm) | - | 0.125" (3.18mm) | - |
|
MF-SM150-2-006PTC RESET FUSE 15V 1.5A 2SMD |
6,066 |
|
Datasheet |
2-SMD | Multifuse®, MF-SM | Tape & Reel (TR) | Active | Polymeric | 15V | 1.5 A | 3 A | 100 A | 5 s | 60 mOhms | 250 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.344" L x 0.264" W (8.75mm x 6.71mm) | - | 0.118" (3.00mm) | - |
|

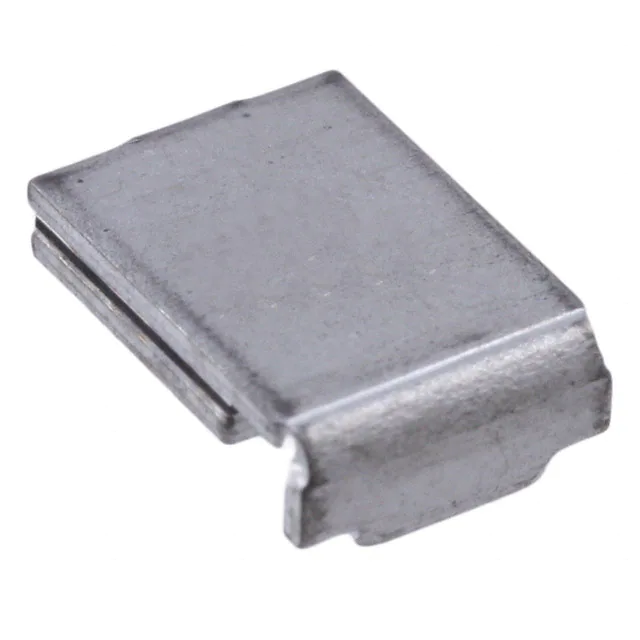

MF-SM250-2-006PTC RESET FUSE 15V 2.5A 2SMD |
3,857 |
|
Datasheet |
2-SMD | Multifuse®, MF-SM | Tape & Reel (TR) | Active | Polymeric | 15V | 2.5 A | 5 A | 100 A | 25 s | 24 mOhms | 85 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.344" L x 0.264" W (8.75mm x 6.71mm) | - | 0.118" (3.00mm) | - |
|
|
MF-SM260-2-99PTC RESET FUSE 6V 2.6A 2SMD |
7,090 |
|
Datasheet |
2-SMD | Multifuse®, MF-SM | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 2.6 A | 5.2 A | 100 A | 20 s | 25 mOhms | 75 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.287" L x 0.214" W (7.31mm x 5.44mm) | - | 0.118" (3.00mm) | - |
|
|
MF-SM300-2-99PTC RESET FUSE 6V 3A 2SMD |
5,880 |
|
Datasheet |
2-SMD | Multifuse®, MF-SM | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 3 A | 6 A | 100 A | 35 s | 15 mOhms | 48 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.287" L x 0.214" W (7.31mm x 5.44mm) | - | 0.118" (3.00mm) | - |
|

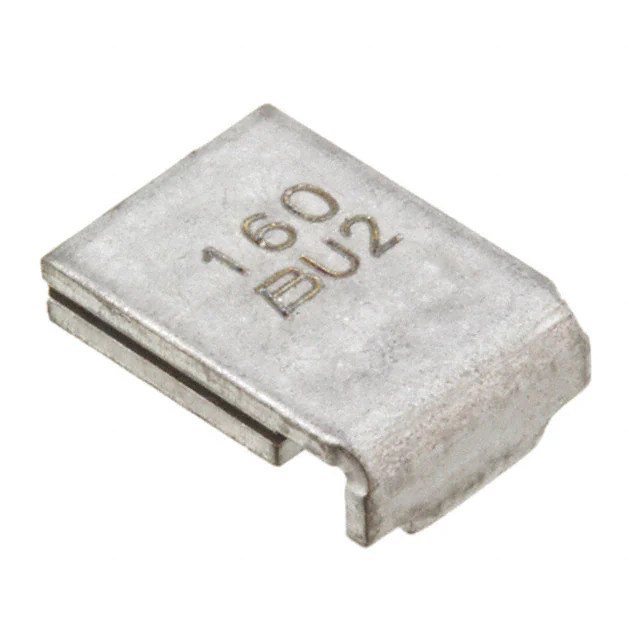

MF-SMHT136-2-6PTC RESET FUSE 16V 1.36A 2SMD |
6,130 |
|
Datasheet |
2-SMD | Multifuse®, MF-SMHT | Tape & Reel (TR) | Active | Polymeric | 16V | 1.36 A | 2.72 A | 100 A | 10 s | 85 mOhms | 330 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.314" L x 0.264" W (7.98mm x 6.71mm) | - | 0.118" (3.00mm) | - |
|
|
MF-SMHT160-2-6PTC RESET FUSE 16V 1.6A 2SMD |
3,012 |
|
Datasheet |
2-SMD | Multifuse®, MF-SMHT | Tape & Reel (TR) | Active | Polymeric | 16V | 1.6 A | 3.2 A | 100 A | 10 s | 50 mOhms | 150 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.374" L x 0.234" W (9.50mm x 5.94mm) | - | 0.118" (3.00mm) | - |
