PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MGP500PTC RESET FUSE 6V 5A STRAP |
4,129 |
|
- |
Strap | PolySwitch®, MGP | Bulk | Obsolete | Polymeric | 6V | 5 A | 9.2 A | 50 A | 5 s | 2.5 mOhms | 13 mOhms | - | - | - | - | - | User Defined | 0.591" L x 0.122" W (15.00mm x 3.11mm) | 0.037" (0.95mm) | - | - |
, Concave.jpg)
|
FEMTOSMDC035F-2PTC RESET FUSE 6V 350MA 0603 |
8,874 |
|
Datasheet |
0603 (1608 Metric), Concave | PolySwitch®, femtoSMDC | Tape & Reel (TR) | Discontinued at Digi-Key | Polymeric | 6V | 350 mA | 700 mA | 40 A | 100 ms | 280 mOhms | 1 Ohms | - | - | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - |
|
MF-NSML380-2PTC RESET FUSE 6V 3.8A 1206 |
5,983 |
|
Datasheet |
1206 (3216 Metric), Concave | Multifuse®, MF-NSML | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 3.8 A | 8 A | 50 A | 5 s | 1.5 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.063" W (3.25mm x 1.60mm) | - | 0.024" (0.60mm) | - |
|

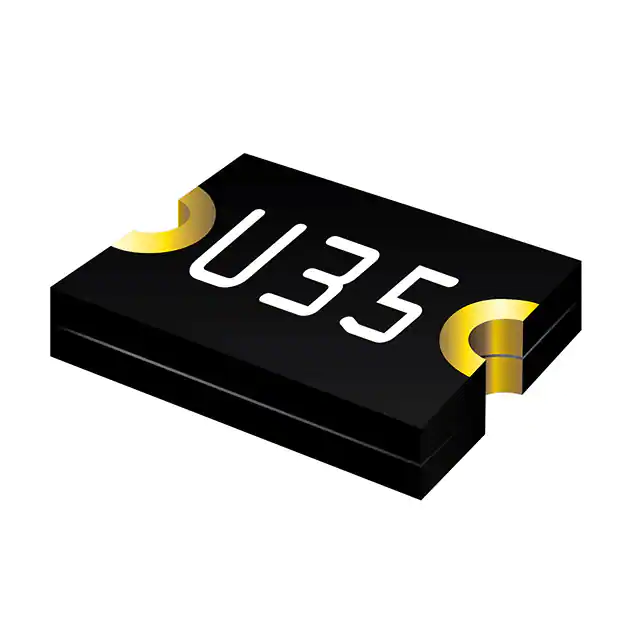

MF-USML450-2PTC RESET FUSE 6V 4.5A 1210 |
9,295 |
|
Datasheet |
1210 (3225 Metric), Concave | Multifuse®, MF-USML | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 4.5 A | 9 A | 50 A | 2 s | 1 mOhms | 15 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.047" (1.20mm) | - |
|
|
MF-USML500-2PTC RESET FUSE 6V 5A 1210 |
2,528 |
|
Datasheet |
1210 (3225 Metric), Concave | Multifuse®, MF-USML | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 5 A | 10 A | 50 A | 2 s | 1 mOhms | 14.5 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.047" (1.20mm) | - |
|
|
MF-USML200-2PTC RESET FUSE 6V 2A 1210 |
6,755 |
|
Datasheet |
1210 (3225 Metric), Concave | Multifuse®, MF-USML | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 2 A | 4 A | 50 A | 3 s | 5 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.024" (0.60mm) | - |
|
|
MF-USML250-2PTC RESET FUSE 6V 2.5A 1210 |
8,190 |
|
Datasheet |
1210 (3225 Metric), Concave | Multifuse®, MF-USML | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 2.5 A | 5 A | 50 A | 3.5 s | 4.5 mOhms | 22 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.024" (0.60mm) | - |
|
|
MF-USML350-2PTC RESET FUSE 6V 3.5A 1210 |
2,685 |
|
Datasheet |
1210 (3225 Metric), Concave | Multifuse®, MF-USML | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 3.5 A | 7 A | 50 A | 2 s | 3 mOhms | 18 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.024" (0.60mm) | - |
|
|
B59673A0100B110PTC RESET FUSE |
2,855 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PTGL04BD102N9N54B0PTC RESET FUSE RADIAL DISC |
4,224 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | - | - | - | - | - | - | - | 1 kOhms | -10°C ~ 60°C | - | - | - | Through Hole | - | - | - | - |
|
|
MF-R010-0-A0PTC RESET FUSE 60V 100MA RADIAL |
2,552 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 60V | 100 mA | 200 mA | 40 A | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
|
MF-R400-0-15PTC RESET FUSE 30V 4A RADIAL |
6,088 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 30V | 4 A | 8 A | 40 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.567" L x 0.118" W (14.40mm x 3.00mm) | 0.976" (24.80mm) | - | 0.201" (5.10mm) |
|
|
MF-R075-2-14-99PTC RESET FUSE 60V 750MA RADIAL |
4,785 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 750 mA | 1.5 A | 40 A | 6.3 s | 180 mOhms | 600 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.409" Dia x 0.122" T (10.40mm x 3.10mm) | 0.630" (16.00mm) | - | 0.201" (5.10mm) |
|
|
MF-R300-2-14-99PTC RESET FUSE 30V 3A RADIAL |
3,661 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 3 A | 6 A | 40 A | 10.8 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.472" L x 0.118" W (12.00mm x 3.00mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|
|
MF-R400-2-14-99PTC RESET FUSE 30V 4A RADIAL |
9,952 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 4 A | 8 A | 40 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.567" L x 0.118" W (14.40mm x 3.00mm) | 0.976" (24.80mm) | - | 0.201" (5.10mm) |
|
|
MF-R010-0-A0-99PTC RESET FUSE 60V 100MA RADIAL |
4,777 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Obsolete | Polymeric | 60V | 100 mA | 200 mA | 40 A | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
|
MF-R030-0-A0-99PTC RESET FUSE 60V 300MA RADIAL |
8,030 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Obsolete | Polymeric | 60V | 300 mA | 600 mA | 40 A | 3 s | 760 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.528" (13.40mm) | - | 0.201" (5.10mm) |
|
|
MF-R075-0-A0-99PTC RESET FUSE 60V 750MA RADIAL |
7,818 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Obsolete | Polymeric | 60V | 750 mA | 1.5 A | 40 A | 6.3 s | 180 mOhms | 600 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.409" Dia x 0.122" T (10.40mm x 3.10mm) | 0.630" (16.00mm) | - | 0.201" (5.10mm) |
|
|
MF-R400-0-15-99PTC RESET FUSE 30V 4A RADIAL |
5,003 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Obsolete | Polymeric | 30V | 4 A | 8 A | 40 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.567" L x 0.118" W (14.40mm x 3.00mm) | 0.976" (24.80mm) | - | 0.201" (5.10mm) |
|
|
CMF-SD10-2PTC RESET FUSE 220V 150MA 4SMD |
7,559 |
|
Datasheet |
4-SMD Cube | CMF-SD | Tape & Reel (TR) | Obsolete | Ceramic | 220V (600V Int) | 150 mA | 360 mA | 1 A | 4.5 s | - | - | 10 Ohms | - | - | - | - | Surface Mount | 0.402" L x 0.354" W (10.20mm x 9.00mm) | 0.425" (10.80mm) | - | 0.099" (2.51mm) |
