PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YPAL1.80NPTC RESET FUSE 30V 450MA RADIAL |
8,964 |
|
Datasheet |
Radial, Disc | YP | Bulk | Obsolete | Ceramic | 30V | 450 mA | 900 mA | 3 A | - | - | - | 1.8 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.138" T (9.00mm x 3.50mm) | 0.413" (10.50mm) | - | 0.200" (5.08mm) |
|
PTR016V0300-TRPTC RESET FUSE 16V 3A RADIAL |
3,311 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 3 A | 5.1 A | 100 A | 1 s | 38 mOhms | 98 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.280" L x 0.122" W (7.10mm x 3.10mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
|
PTCCL11H611DBEPTC RESET FUSE 30V 610MA RADIAL |
3,663 |
|
Datasheet |
Radial, Disc | PTCCL - 30V | Bulk | Active | Ceramic | 30V | 610 mA | 915 mA | 7 A | - | - | - | 1.7 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.413" Dia x 0.157" T (10.50mm x 4.00mm) | 0.610" (15.50mm) | - | 0.197" (5.00mm) |
|
|
PTCCL11H211HBEPTC RESET FUSE 265V 210MA RADIAL |
6,382 |
|
Datasheet |
Radial, Disc | PTCCL - 265V | Bulk | Active | Ceramic | 265V | 210 mA | 315 mA | 1.3 A | - | - | - | 17 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.413" Dia x 0.217" T (10.50mm x 5.50mm) | 0.610" (15.50mm) | - | 0.197" (5.00mm) |
|
2322 662 93114PTC RESET FUSE 600V 175MA RADIAL |
2,923 |
|
Datasheet |
Radial, Disc | - | Bulk | Obsolete | Ceramic | 600V | 175 mA | 400 mA | - | 7 s | - | - | 10 Ohms | - | - | - | - | Through Hole | 0.512" Dia x 0.217" T (13.00mm x 5.50mm) | 0.709" (18.00mm) | - | 0.197" (5.00mm) |
|
SMD250-2POLYSWITCH 2.50A HOLD SMD |
9,468 |
|
Datasheet |
2-SMD | PolySwitch®, SMD | Cut Tape (CT) | Obsolete | Polymeric | 15V | 2.5 A | 5 A | 40 A | 25 s | 35 mOhms | 85 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.343" L x 0.250" W (8.70mm x 6.36mm) | - | 0.118" (3.00mm) | - |
|
PTGL14AR3R3M3B71B0PTC RESET FUSE 56V 490MA RADIAL |
4,573 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 56V | 490 mA | 830 mA | 2.5 A | - | - | - | 3.3 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.571" Dia x 0.157" T (14.50mm x 4.00mm) | 0.807" (20.50mm) | - | 0.295" (7.50mm) |
|
1210L260SLYRPTC RESET FUSE 6V 2.6A 1210 |
8,460 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 2.6 A | 5 A | 50 A | 4 s | 3 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.028" (0.70mm) | - |
|
PTGL9SAS120K6B51B0PTC RESET FUSE 140V 244MA RADIAL |
2,582 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 140V | 244 mA | 324 mA | 2 A | - | - | - | 12 Ohms | -30°C ~ 125°C | - | - | - | Through Hole | 0.366" Dia x 0.177" T (9.30mm x 4.50mm) | 0.563" (14.30mm) | - | 0.197" (5.00mm) |
|
|
YH100R100V24PTC RESET FUSE 24V |
9,532 |
|
- |
- | YH | Bulk | Active | Ceramic | 24V | - | - | - | - | - | - | 10 Ohms | - | - | - | - | - | - | - | - | - |
|
|
PTCCL13H831DBEPTC RESET FUSE 30V 830MA RADIAL |
5,915 |
|
Datasheet |
Radial, Disc | PTCCL - 30V | Bulk | Active | Ceramic | 30V | 830 mA | 1.245 A | 10 A | - | - | - | 1.1 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.492" Dia x 0.157" T (12.50mm x 4.00mm) | 0.689" (17.50mm) | - | 0.197" (5.00mm) |
|
|
PTCCL13H411FBEPTC RESET FUSE 145V 410MA RADIAL |
6,977 |
|
Datasheet |
Radial, Disc | PTCCL - 145V | Bulk | Active | Ceramic | 145V | 410 mA | 615 mA | 4.5 A | - | - | - | 4.6 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.492" Dia x 0.197" T (12.50mm x 5.00mm) | 0.689" (17.50mm) | - | 0.197" (5.00mm) |
|
MF-RG1100-APPTC RESET FUSE 16V 11A RADIAL |
7,140 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Tape & Box (TB) | Active | Polymeric | 16V | 11 A | 18.7 A | 100 A | 7 s | 3.7 mOhms | 8.9 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" L x 0.118" W (17.50mm x 3.00mm) | 1.024" (26.00mm) | - | 0.201" (5.10mm) |
|
RL4005-5-110-12-PTFPTC RESET FUSE 12V 330MA RADIAL |
4,770 |
|
Datasheet |
Radial, Disc | PTF | Bulk | Obsolete | Ceramic | 12V | 330 mA | 490 mA | - | - | - | - | 5 Ohms | - | - | - | - | Through Hole | 0.449" Dia x 0.150" T (11.40mm x 3.80mm) | 0.449" (11.40mm) | - | 0.252" (6.40mm) |
|

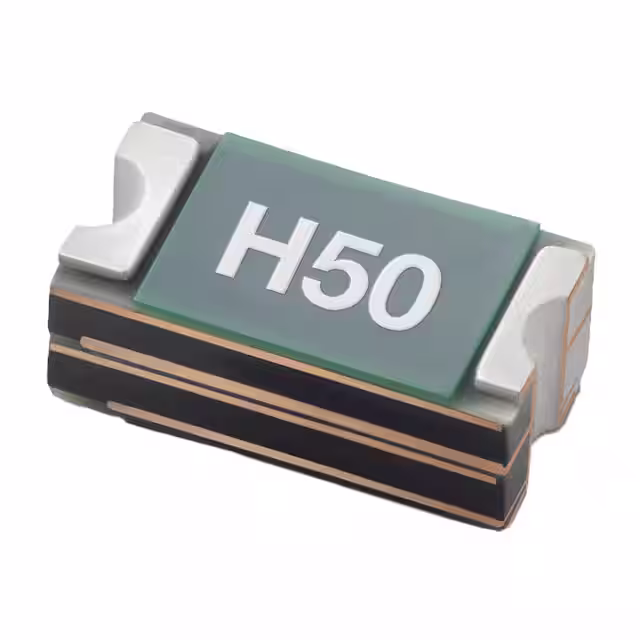

MINIASMDCH050F-2PTC RESET FUSE 0.50A 30V 1812 |
8,429 |
|
Datasheet |
1812 (4532 Metric), Concave | PolySwitch®, miniASMD | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 500 mA | 1.6 A | 20 A | 100 ms | 200 mOhms | 1.35 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.181" L x 0.128" W (4.60mm x 3.24mm) | - | 0.032" (0.82mm) | - |
|
|
YPEL6250TPTC RESET FUSE 550V 6MA RADIAL |
9,836 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Active | Ceramic | 550V | 6 mA | 14 mA | 150 mA | - | - | - | 6.25 kOhms | 0°C ~ 60°C | - | - | - | Through Hole | 0.157" Dia x 0.157" T (4.00mm x 4.00mm) | 0.217" (5.50mm) | - | 0.200" (5.08mm) |
|
|
MF-RHT1300-AP-14PTC 13.0A 16V RADIAL LEADED HI-T |
5,895 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Box (TB) | Active | Polymeric | 16V | 13 A | 24 A | 100 A | 13 s | 4.1 mOhms | 10 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.925" L x 0.142" W (23.50mm x 3.60mm) | 1.130" (28.70mm) | - | 0.402" (10.20mm) |
|
|
MF-RHT1300-2-14PTC 13.0A 16V RADIAL LEADED HI-T |
5,966 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 16V | 13 A | 24 A | 100 A | 13 s | 4.1 mOhms | 10 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.925" L x 0.142" W (23.50mm x 3.60mm) | 1.130" (28.70mm) | - | 0.402" (10.20mm) |
|
|
PTGL9SAS7R6K6B51B0PTC RESET FUSE 140V 287MA RADIAL |
2,144 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 140V | 287 mA | 382 mA | 2.2 A | - | - | - | 7.6 Ohms | -30°C ~ 125°C | - | - | - | Through Hole | 0.366" Dia x 0.177" T (9.30mm x 4.50mm) | 0.563" (14.30mm) | - | 0.197" (5.00mm) |
|

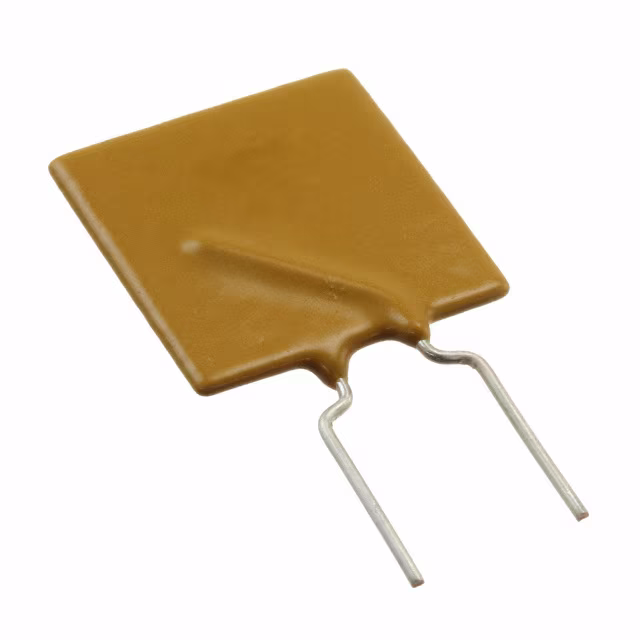

0ZRN1100FF1APTC RESET FUSE 16V 11A RADIAL |
6,826 |
|
Datasheet |
Radial, Disc | 0ZRN | Bulk | Active | Polymeric | 16V | 11 A | 20 A | 100 A | 11 s | 5.5 mOhms | 13 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.827" L x 0.118" W (21.00mm x 3.00mm) | 1.028" (26.10mm) | - | 0.402" (10.20mm) |
