PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTR060V0250-TRPTC RESET FUSE 60V 2.5A RADIAL |
6,868 |
|
Datasheet |
Radial, Disc | PTR060V | Tape & Reel (TR) | Active | Polymeric | 60V | 2.5 A | 5 A | 40 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.839" Dia x 0.118" T (21.30mm x 3.00mm) | 1.039" (26.40mm) | - | 0.394" (10.00mm) |
|
|
PTR060V0250-TR1PTC RESET FUSE 60V 2.5A RADIAL |
6,443 |
|
Datasheet |
Radial, Disc | PTR060V | Tape & Reel (TR) | Active | Polymeric | 60V | 2.5 A | 5 A | 40 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.839" Dia x 0.118" T (21.30mm x 3.00mm) | 1.039" (26.40mm) | - | 0.394" (10.00mm) |
|
|
PTR060V0300-TR1PTC RESET FUSE 60V 3A RADIAL |
9,611 |
|
Datasheet |
Radial, Disc | PTR060V | Tape & Reel (TR) | Active | Polymeric | 60V | 3 A | 6 A | 40 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.980" Dia x 0.118" T (24.90mm x 3.00mm) | 1.181" (30.00mm) | - | 0.394" (10.00mm) |
,-Concave.jpg)
|
0ZCN0200FF2CPTC RESET FUSE 6V 2A 2016 |
2,729 |
|
Datasheet |
2016 (5041 Metric), Concave | 0ZCN | Tape & Reel (TR) | Active | Polymeric | 6V | 2 A | 4.2 A | 100 A | 3 s | 48 mOhms | 100 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.200" L x 0.160" W (5.08mm x 4.07mm) | - | 0.022" (0.55mm) | - |
|

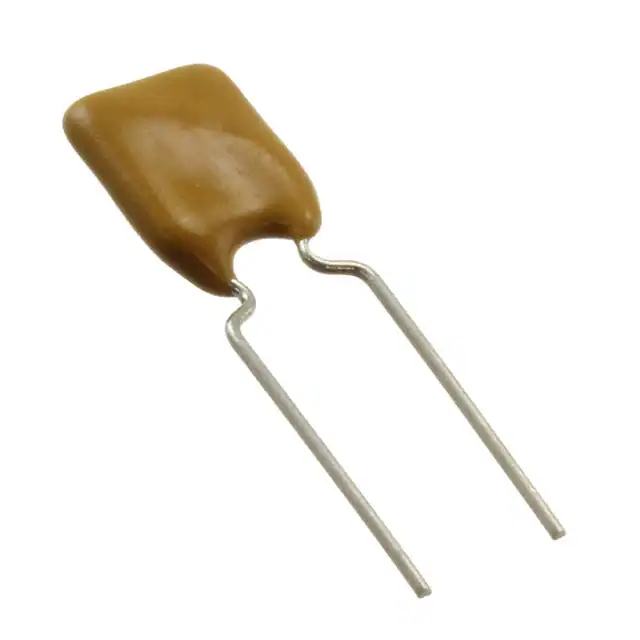

0ZRN0750FF1APTC RESET FUSE 16V 7.5A RADIAL |
6,809 |
|
Datasheet |
Radial, Disc | 0ZRN | Bulk | Active | Polymeric | 16V | 7.5 A | 13.1 A | 100 A | 7 s | 9.4 mOhms | 22 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.925" (23.50mm) | - | 0.201" (5.10mm) |
|
|
0ZRN0800FF1APTC RESET FUSE 16V 8A RADIAL |
7,860 |
|
Datasheet |
Radial, Disc | 0ZRN | Bulk | Active | Polymeric | 16V | 8 A | 15 A | 100 A | 8 s | 8 mOhms | 20 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.886" (22.50mm) | - | 0.201" (5.10mm) |
|
|
0ZRN0900FF1APTC RESET FUSE 16V 9A RADIAL |
8,875 |
|
Datasheet |
Radial, Disc | 0ZRN | Bulk | Active | Polymeric | 16V | 9 A | 16.5 A | 100 A | 10 s | 7.4 mOhms | 17 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 1.012" (25.70mm) | - | 0.201" (5.10mm) |
|
YQS8103PTC RESET FUSE 30V 120MA RADIAL |
2,792 |
|
Datasheet |
Radial, Disc | YP | Bulk | Active | Ceramic | 30V | 120 mA | 240 mA | 700 mA | - | - | - | 13 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.177" Dia x 0.138" T (4.50mm x 3.50mm) | 0.394" (10.00mm) | - | 0.236" (6.00mm) |
|
|
YQS8123PTC RESET FUSE 30V 250MA RADIAL |
9,339 |
|
Datasheet |
Radial, Disc | YP | Bulk | Active | Ceramic | 30V | 250 mA | 500 mA | 1 A | - | - | - | 4.6 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.138" T (6.50mm x 3.50mm) | 0.472" (12.00mm) | - | 0.236" (6.00mm) |
|
SMD075-2POLYSWITCH 0.75A HOLD SMD |
4,317 |
|
Datasheet |
2920 (7351 Metric) | PolySwitch®, SMD | Cut Tape (CT) | Obsolete | Polymeric | 30V | 750 mA | 1.5 A | 40 A | 300 ms | 350 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.125" (3.18mm) | - |
|
|
SMD125-2POLYSWITCH 1.25A HOLD SMD |
7,569 |
|
Datasheet |
2920 (7351 Metric) | PolySwitch®, SMD | Cut Tape (CT) | Obsolete | Polymeric | 15V | 1.25 A | 2.5 A | 40 A | 2 s | 70 mOhms | - | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.118" (3.00mm) | - |
|
|
SMD030-2POLYSWITCH 0.30A HOLD SMD |
6,896 |
|
Datasheet |
2920 (7351 Metric) | PolySwitch®, SMD | Cut Tape (CT) | Obsolete | Polymeric | 60V | 300 mA | 600 mA | 10 A | 3 s | 1.2 Ohms | 4.8 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.125" (3.18mm) | - |
|
|
SMD100-2POLYSWITCH 1.10A HOLD SMD |
9,771 |
|
Datasheet |
2920 (7351 Metric) | PolySwitch®, SMD | Cut Tape (CT) | Obsolete | Polymeric | 30V | 1.1 A | 2.2 A | 40 A | 500 ms | 120 mOhms | 480 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.200" L x 0.180" W (5.08mm x 4.58mm) | - | 0.060" (1.52mm) | - |
|
|
SMD050-2POLYSWITCH 0.50A HOLD SMD |
2,170 |
|
- |
2920 (7351 Metric) | PolySwitch®, SMD | Cut Tape (CT) | Obsolete | Polymeric | 60V | 500 mA | 1 A | 10 A | 4 s | 350 mOhms | 1.4 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.125" (3.18mm) | - |
|
PTR016V1300-TR1PTC RESET FUSE 16V 13A RADIAL |
3,534 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 13 A | 22.1 A | 100 A | 8.5 s | 2 mOhms | 8 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.850" L x 0.122" W (21.60mm x 3.10mm) | 1.260" (32.00mm) | - | 0.394" (10.00mm) |
|
PTGLCSAS2R2K4B51A0PTC RESET FUSE 60V 556MA RADIAL |
9,164 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 60V | 556 mA | 739 mA | 5 A | - | - | - | 2.2 Ohms | -30°C ~ 125°C | - | - | - | Through Hole | 0.453" Dia x 0.138" T (11.50mm x 3.50mm) | 0.650" (16.50mm) | - | 0.197" (5.00mm) |
|
LVRL200PTC RESET FUSE 120V 2A RADIAL |
9,219 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVRL | Bulk | Obsolete | Polymeric | 120V (135V Int) | 2 A | 4.2 A | 20 A | 36 s | 80 mOhms | 210 mOhms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.925" L x 0.161" W (23.50mm x 4.10mm) | 1.252" (31.80mm) | - | 0.400" (10.15mm) |
|
|
PTR060V0090-TRPTC RESET FUSE 60V 900MA RADIAL |
8,602 |
|
Datasheet |
Radial, Disc | PTR060V | Tape & Reel (TR) | Active | Polymeric | 60V | 900 mA | 1.8 A | 40 A | 7.2 s | 200 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.461" Dia x 0.118" T (11.70mm x 3.00mm) | 0.618" (15.70mm) | - | 0.197" (5.00mm) |
|
PTCCL11H361FBETHERMISTOR PTC 5.3 OHM 20% RAD |
5,353 |
|
Datasheet |
Radial, Disc | PTCCL - 145V | Bulk | Obsolete | Ceramic | 145V | 360 mA | 540 mA | 3.5 A | - | - | - | 5.3 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.413" Dia x 0.197" T (10.50mm x 5.00mm) | 0.610" (15.50mm) | - | 0.197" (5.00mm) |
|
MF-RG1000-0-14PTC RESETTABLE 10A 16V RADIAL LE |
6,959 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Bulk | Active | Polymeric | 16V | 10 A | 17 A | 100 A | 6 s | 4 mOhms | 10.2 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.854" (21.70mm) | - | 0.201" (5.10mm) |
