PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|

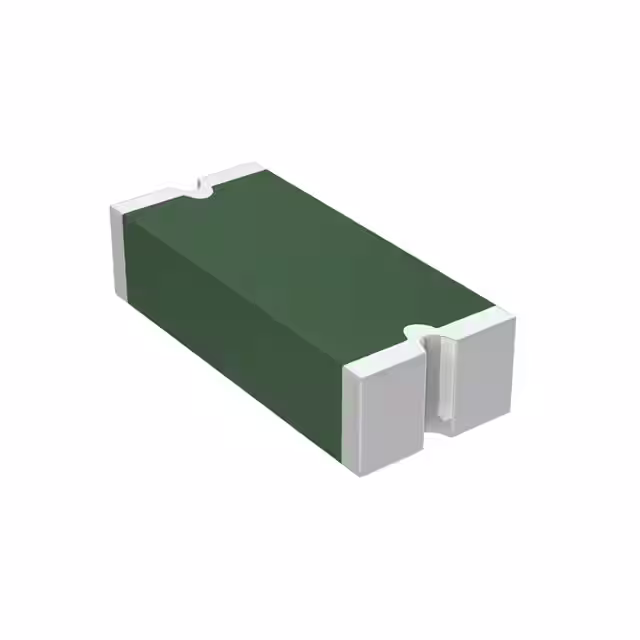

MICROSMD350LR-2PTC RESET FUSE 6V 3.5A 1206 |
4,388 |
|
Datasheet |
1210 (3225 Metric) | PolySwitch®, microSMD | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 3.5 A | 9 A | 50 A | 10 s | 2.5 mOhms | - | - | - | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.039" (1.00mm) | - |
|
|
MICROSMD350LR-D-2PTC RESET FUSE 6V 3.5A 1206 |
3,592 |
|
Datasheet |
1210 (3225 Metric) | PolySwitch®, microSMD | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 3.5 A | 9 A | 50 A | 10 s | 2.5 mOhms | 11 mOhms | - | -40°C ~ 80°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.039" (1.00mm) | - |
|
|
MICROSMD380LR-2PTC RESET FUSE 6V 3.8A 1206 |
2,797 |
|
Datasheet |
1210 (3225 Metric) | PolySwitch®, microSMD | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 3.8 A | 9 A | 50 A | 10 s | 2.5 mOhms | 9 mOhms | - | -40°C ~ 80°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.039" (1.00mm) | - |
|
|
MICROSMD400LR-2PTC RESET FUSE 6V 4A 1206 |
9,209 |
|
Datasheet |
1210 (3225 Metric) | PolySwitch®, microSMD | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 4 A | 9 A | 50 A | 10 s | 2.5 mOhms | 9.9 mOhms | - | -40°C ~ 80°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.039" (1.00mm) | - |
|
MICROSMD450LR-2PTC RESET FUSE 5V 4.5A 1210 |
3,655 |
|
Datasheet |
1210 (3225 Metric), Concave | PolySwitch®, microSMD | Tape & Reel (TR) | Obsolete | Polymeric | 5V | 4.5 A | 9 A | 50 A | 2 s | 2 mOhms | 8 mOhms | - | -40°C ~ 80°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.039" (1.00mm) | - |
|
|
MICROSMD550LR-2PTC RESET FUSE 5V 5.5A 1210 |
4,648 |
|
Datasheet |
1210 (3225 Metric), Concave | PolySwitch®, microSMD | Tape & Reel (TR) | Obsolete | Polymeric | 5V | 5.5 A | 11 A | 50 A | 2 s | 2 mOhms | 6.5 mOhms | - | -40°C ~ 80°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.039" (1.00mm) | - |
|
|
MICROSMD600LR-2PTC RESET FUSE 6V 6A 1210 |
2,275 |
|
Datasheet |
1210 (3225 Metric), Concave | PolySwitch®, microSMD | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 6 A | 12 A | 50 A | 2 s | 2 mOhms | 6.3 mOhms | - | -40°C ~ 80°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.039" (1.00mm) | - |
|
MF-USML600-2PTC RESET FUSE 6V 6A 1210 |
3,433 |
|
Datasheet |
1210 (3225 Metric), Concave | Multifuse®, MF-USML | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 6 A | 12 A | 50 A | 2 s | 1 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.047" (1.20mm) | - |
|
MF-USML380/6-2PTC RESET FUSE 6V 3.8A 1210 |
8,339 |
|
Datasheet |
1210 (3225 Metric), Concave | Multifuse®, MF-USML/X | Tape & Reel (TR) | Active | Polymeric | 6V | 3.8 A | 7.6 A | 50 A | 5 s | 2 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.047" (1.20mm) | - |
|
|
MF-USML260/6-2PTC RESET FUSE 6V 2.6A 1210 |
5,397 |
|
Datasheet |
1210 (3225 Metric), Concave | Multifuse®, MF-USML/X | Tape & Reel (TR) | Active | Polymeric | 6V | 2.6 A | 5.2 A | 50 A | 5 s | 4 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.031" (0.80mm) | - |
|
|
MF-USML450/6-2PTC RESET FUSE 6V 4.5A 1210 |
7,967 |
|
Datasheet |
1210 (3225 Metric), Concave | Multifuse®, MF-USML/X | Tape & Reel (TR) | Active | Polymeric | 6V | 4.5 A | 9 A | 50 A | 2 s | 2 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.047" (1.20mm) | - |
|

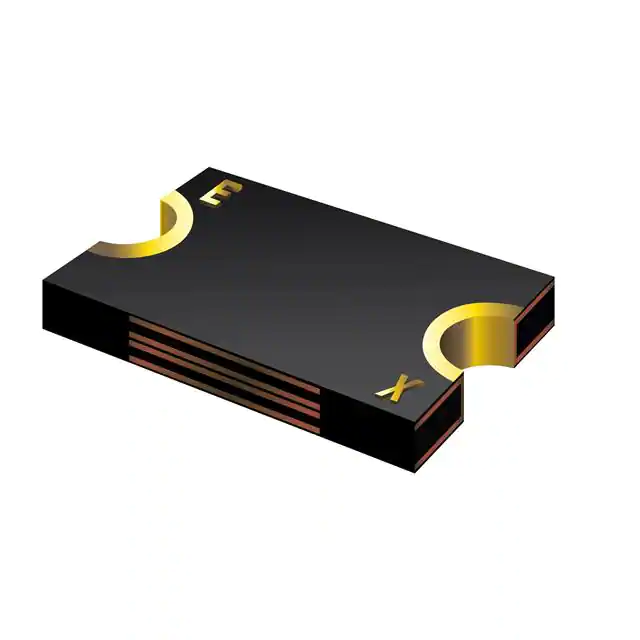

MF-LSMF330X-22920 RESETTABLE SMD PPTC 3.3A/6V |
5,645 |
|
Datasheet |
2920 (7351 Metric), Concave | Multifuse®, MF-LSMF | Tape & Reel (TR) | Active | Polymeric | - | 3.3 A | - | - | - | - | - | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | - | - |
|
MF-RG1100-AP-14PTC RESETTABLE 11A 16V RADIAL LE |
2,325 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Tape & Box (TB) | Active | Polymeric | 16V | 11 A | 18.7 A | 100 A | 7 s | 3.7 mOhms | 8.9 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" L x 0.118" W (17.50mm x 3.00mm) | 1.024" (26.00mm) | - | 0.201" (5.10mm) |
|
|
MF-RG1100-2-14PTC RESETTABLE 11A 16V RADIAL LE |
8,689 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Tape & Reel (TR) | Active | Polymeric | 16V | 11 A | 18.7 A | 100 A | 7 s | 3.7 mOhms | 8.9 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" L x 0.118" W (17.50mm x 3.00mm) | 1.024" (26.00mm) | - | 0.201" (5.10mm) |
|
RL3006-50-30-25-PTOPTC RESET FUSE 25V RADIAL DISC |
2,473 |
|
Datasheet |
Radial, Disc | PTO | Bulk | Obsolete | Ceramic | 25V | - | - | - | 35 s | - | - | 50 Ohms | - | - | - | - | Through Hole | 0.350" Dia x 0.150" T (8.90mm x 3.80mm) | 0.350" (8.89mm) | - | 0.250" (6.35mm) |
|
YPBJ5.60TPTC RESET FUSE 80V 130MA RADIAL |
8,297 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Obsolete | Ceramic | 80V | 130 mA | 265 mA | 4.3 A | - | - | - | 5.6 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.433" Dia x 0.138" T (11.00mm x 3.50mm) | 0.492" (12.50mm) | - | 0.200" (5.08mm) |
|
|
YPBJ9.40TPTC RESET FUSE 80V 90MA RADIAL |
8,066 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Obsolete | Ceramic | 80V | 90 mA | 190 mA | 3 A | - | - | - | 9.4 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.138" T (9.00mm x 3.50mm) | 0.413" (10.50mm) | - | 0.200" (5.08mm) |
|
|
MF-USML500/6-2PTC RESET FUSE 6V 5A 1210 |
5,441 |
|
Datasheet |
1210 (3225 Metric), Concave | Multifuse®, MF-USML/X | Tape & Reel (TR) | Active | Polymeric | 6V | 5 A | 10 A | 50 A | 2 s | 1 mOhms | 12 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.047" (1.20mm) | - |
|
PTGL12AS1R2K3B51B0PTC RESET FUSE 51V 749MA RADIAL |
9,009 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 51V | 749 mA | 996 mA | 5 A | - | - | - | 1.2 Ohms | -30°C ~ 85°C | - | - | - | Through Hole | 0.453" Dia x 0.138" T (11.50mm x 3.50mm) | 0.650" (16.50mm) | - | 0.197" (5.00mm) |
|
MF-SM075/60-2-99PTC RESET FUSE 60V 750MA 2SMD |
2,721 |
|
Datasheet |
2-SMD | Multifuse®, MF-SM | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 750 mA | 1.5 A | 10 A | 300 ms | 230 mOhms | 1 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.287" L x 0.214" W (7.31mm x 5.44mm) | - | 0.125" (3.18mm) | - |
