Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

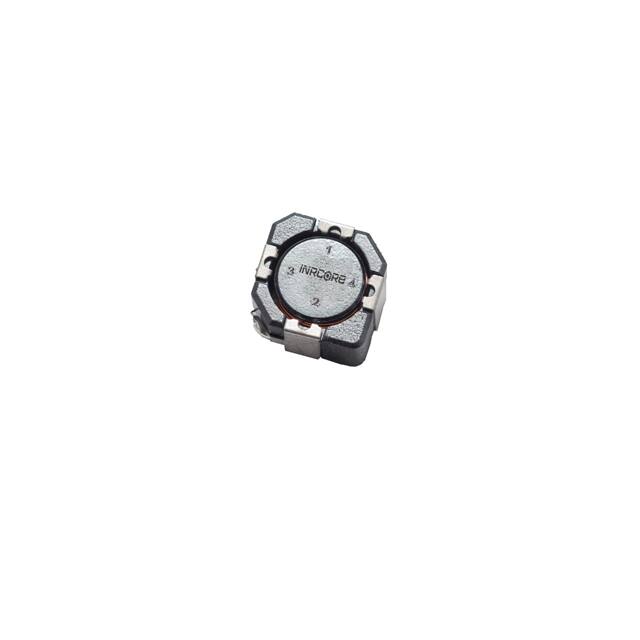

PL9113TFIXED IND 27UH 2.8A 62 MOHM SMD |
2,946 |
|
Datasheet |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 27 µH | ±20% | 2.8 A | 2.8A | Shielded | 62mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
PL9119NLTFIXED IND 82UH 1.7A 178 MOHM SMD |
1,319 |
|
Datasheet |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 82 µH | ±20% | 1.7 A | 1.7A | Shielded | 178mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
PL9122NLTFIXED IND 150UH 1.2A 280MOHM SMD |
4,755 |
|
Datasheet |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±20% | 1.2 A | 1.2A | Shielded | 280mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
PL9123NLTFIXED IND 180UH 1.1A 310MOHM SMD |
2,822 |
|
Datasheet |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 180 µH | ±20% | 1.1 A | 1.1A | Shielded | 310mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
PL9128NLTFIXED IND 470UH 680MA 850MOHM SM |
2,843 |
|
Datasheet |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 µH | ±20% | 680 mA | 680mA | Shielded | 850mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
PL9129NLTFIXED IND 560UH 630MA 1.06OHM SM |
4,751 |
|
Datasheet |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 560 µH | ±20% | 630 mA | 630mA | Shielded | 1.06Ohm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
PL9130NLTFIXED IND 680UH 570MA 1.2OHM SMD |
2,225 |
|
Datasheet |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 680 µH | ±20% | 570 mA | 570mA | Shielded | 1.2Ohm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
PL9131NLTFIXED IND 820UH 520MA 1.55OHM SM |
3,873 |
|
Datasheet |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 820 µH | ±20% | 520 mA | 520mA | Shielded | 1.55Ohm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
S0402-27NJ1DFIXED IND 27NH 400MA 360MOHM SMD |
3,692 |
|
Datasheet |
S0402 | 0402 (1005 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 27 nH | ±5% | 400 mA | - | Unshielded | 360mOhm Max | 23 @ 250MHz | 2.48GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.043" L x 0.025" W (1.09mm x 0.64mm) | 0.030" (0.76mm) |
|
|
S0402-33NJ1DFIXED IND 33NH 400MA 370MOHM SMD |
1,841 |
|
Datasheet |
S0402 | 0402 (1005 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 33 nH | ±5% | 400 mA | - | Unshielded | 370mOhm Max | 23 @ 250MHz | 2.35GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.043" L x 0.025" W (1.09mm x 0.64mm) | 0.030" (0.76mm) |
|
|
S0402-47NJ1DFIXED IND 47NH 150MA 830MOHM SMD |
1,128 |
|
Datasheet |
S0402 | 0402 (1005 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 47 nH | ±5% | 150 mA | - | Unshielded | 830mOhm Max | 19 @ 250MHz | 2.1GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.043" L x 0.025" W (1.09mm x 0.64mm) | 0.030" (0.76mm) |
|
|
S0402-56NJ1DFIXED IND 56NH 100MA 1 OHM SMD |
3,119 |
|
Datasheet |
S0402 | 0402 (1005 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 56 nH | ±5% | 100 mA | - | Unshielded | 1Ohm Max | 21 @ 250MHz | 1.7GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.043" L x 0.025" W (1.09mm x 0.64mm) | 0.030" (0.76mm) |
|
|
S0402-68NJ1DFIXED IND 68NH 100MA 1.18OHM SMD |
3,211 |
|
Datasheet |
S0402 | 0402 (1005 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 68 nH | ±5% | 100 mA | - | Unshielded | 1.18Ohm Max | 20 @ 250MHz | 1.62GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.043" L x 0.025" W (1.09mm x 0.64mm) | 0.030" (0.76mm) |
|
|
SML32S-392GMOLDED SHIELDED INDUCTOR |
1,700 |
|
Datasheet |
SML32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 39 µH | ±2% | 204 mA | - | Shielded | 5Ohm Max | - | 12MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.102" (2.60mm) |
|
78436432100FIXED IND 10UH 38A 1.1 MOHM SMD |
1,589 |
|
Datasheet |
WE-HCFA | Nonstandard | Tray | Obsolete | Wirewound | - | 10 µH | ±15% | 38 A | 14A | Shielded | 1.1mOhm Max | - | 18MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.083" L x 1.083" W (27.50mm x 27.50mm) | 0.669" (17.00mm) |
|
|
030AT7502SMWIREWOUND TOROIDAL INDUCTOR |
1,867 |
|
Datasheet |
ATSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 75 µH | ±10% | 1.62 A | 1.2A | Shielded | 125mOhm Max | - | 7MHz | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
|
LC37-7302SMTOROIDAL INDUCTOR |
3,233 |
|
Datasheet |
LCSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 73 µH | ±20% | 1.3 A | - | Shielded | 290mOhm Max | - | 5MHz | - | -30°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.565" L x 0.560" W (14.35mm x 14.22mm) | 0.360" (9.14mm) |
|
|
IHB1EB6R8MFIXED IND 6.8UH 9.2A 8 MOHM TH |
1,568 |
|
Datasheet |
IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 6.8 µH | ±20% | 9.2 A | - | Unshielded | 8mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
|
050KM2502HHORIZONTAL TOROIDAL INDUCTOR |
1,139 |
|
Datasheet |
KM | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 25 µH | ±10% | 5.2 A | 1.9A | Shielded | 20mOhm Max | - | 10MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.625" Dia (15.88mm) | 0.300" (7.62mm) |
|
|
050KM2502HLFHORIZONTAL TOROIDAL INDUCTOR |
3,993 |
|
Datasheet |
KM | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 25 µH | ±10% | 5.2 A | 1.9A | Shielded | 20mOhm Max | - | 10MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.625" Dia (15.88mm) | 0.300" (7.62mm) |
