Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

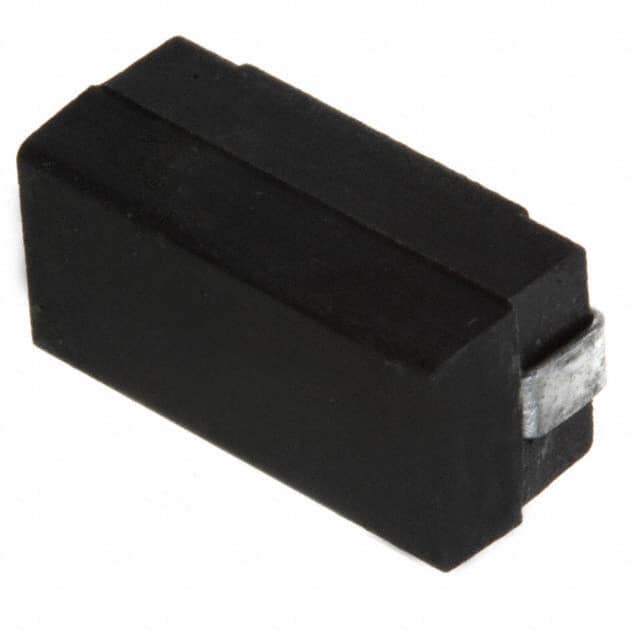

5022R-434FFIXED IND 430UH 147MA 17.1OHM SM |
3,914 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 430 µH | ±1% | 147 mA | - | Unshielded | 17.1Ohm Max | 65 @ 790kHz | 4.2MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-471FFIXED IND 470NH 1.75A 120MOHM SM |
4,081 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 470 nH | ±1% | 1.75 A | - | Unshielded | 120mOhm Max | 45 @ 25MHz | 310MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-472FFIXED IND 4.7UH 375MA 2.6OHM SMD |
3,666 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 4.7 µH | ±1% | 375 mA | - | Unshielded | 2.6Ohm Max | 33 @ 7.9MHz | 90MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-473FFIXED IND 47UH 351MA 2.75OHM SMD |
1,084 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 47 µH | ±1% | 351 mA | - | Unshielded | 2.75Ohm Max | 55 @ 2.5MHz | 13MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-474FFIXED IND 470UH 143MA 17.9OHM SM |
1,425 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 470 µH | ±1% | 143 mA | - | Unshielded | 17.9Ohm Max | 65 @ 790kHz | 3.9MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-511FFIXED IND 510NH 1.68A 130MOHM SM |
2,871 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 510 nH | ±1% | 1.68 A | - | Unshielded | 130mOhm Max | 45 @ 25MHz | 300MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-512FFIXED IND 5.1UH 1.04A 300MOHM SM |
1,080 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 5.1 µH | ±1% | 1.04 A | - | Unshielded | 300mOhm Max | 35 @ 7.9MHz | 65MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-513FFIXED IND 51UH 344MA 2.85OHM SMD |
3,787 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 51 µH | ±1% | 344 mA | - | Unshielded | 2.85Ohm Max | 55 @ 2.5MHz | 12.7MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-514FFIXED IND 510UH 139MA 18.8OHM SM |
2,698 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 510 µH | ±1% | 139 mA | - | Unshielded | 18.8Ohm Max | 65 @ 790kHz | 3.7MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-561FFIXED IND 560NH 1.645A 135 MOHM |
1,129 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 560 nH | ±1% | 1.645 A | - | Unshielded | 135mOhm Max | 50 @ 25MHz | 280MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-562FFIXED IND 5.6UH 1.03A 320MOHM SM |
4,550 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 5.6 µH | ±1% | 1.03 A | - | Unshielded | 320mOhm Max | 45 @ 7.9MHz | 60MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-563FFIXED IND 56UH 335MA 3 OHM SMD |
2,364 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 56 µH | ±1% | 335 mA | - | Unshielded | 3Ohm Max | 55 @ 2.5MHz | 12MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-564FFIXED IND 560UH 136MA 19.5OHM SM |
1,172 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 560 µH | ±1% | 136 mA | - | Unshielded | 19.5Ohm Max | 65 @ 790kHz | 3.8MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-621FFIXED IND 620NH 1.615A 140 MOHM |
1,767 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 620 nH | ±1% | 1.615 A | - | Unshielded | 140mOhm Max | 50 @ 25MHz | 260MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-622FFIXED IND 6.2UH 830MA 470MOHM SM |
4,321 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 6.2 µH | ±1% | 830 mA | - | Unshielded | 470mOhm Max | 45 @ 7.9MHz | 60MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-623FFIXED IND 62UH 328MA 3.15OHM SMD |
3,302 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 62 µH | ±1% | 328 mA | - | Unshielded | 3.15Ohm Max | 55 @ 2.5MHz | 11.5MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-624FFIXED IND 620UH 119MA 25.9OHM SM |
2,550 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 620 µH | ±1% | 119 mA | - | Unshielded | 25.9Ohm Max | 65 @ 790kHz | 3.3MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-681FFIXED IND 680NH 1.555A 150 MOHM |
1,843 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 680 nH | ±1% | 1.555 A | - | Unshielded | 150mOhm Max | 50 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-682FFIXED IND 6.8UH 820MA 500MOHM SM |
4,566 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 6.8 µH | ±1% | 820 mA | - | Unshielded | 500mOhm Max | 50 @ 7.9MHz | 55MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-683FFIXED IND 68UH 320MA 3.3 OHM SMD |
4,301 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 68 µH | ±1% | 320 mA | - | Unshielded | 3.3Ohm Max | 55 @ 2.5MHz | 11MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
