Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DB3-222RADIAL POWER LINE CHOKE |
3,763 |
|
Datasheet |
DB3 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 22 µH | ±10% | 13.5 A | 25A | Unshielded | 8mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.887" (22.53mm) |
|
|
DB3-332RADIAL POWER LINE CHOKE |
2,681 |
|
Datasheet |
DB3 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 33 µH | ±10% | 13.5 A | 20A | Unshielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.887" (22.53mm) |
|
|
DB3-272LFRADIAL POWER LINE CHOKE |
1,115 |
|
Datasheet |
DB3 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 27 µH | ±10% | 13.5 A | 23A | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.887" (22.53mm) |
|
|
DB3-332LFRADIAL POWER LINE CHOKE |
4,534 |
|
Datasheet |
DB3 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 33 µH | ±10% | 13.5 A | 20A | Unshielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.887" (22.53mm) |
|
|
DB3-182RADIAL POWER LINE CHOKE |
2,323 |
|
Datasheet |
DB3 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 18 µH | ±10% | 13.5 A | 29A | Unshielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.887" (22.53mm) |
|
|
DB3-272RADIAL POWER LINE CHOKE |
1,015 |
|
Datasheet |
DB3 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 27 µH | ±10% | 13.5 A | 23A | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.887" (22.53mm) |
|
|
26HF3302VVERTICAL TOROIDAL INDUCTOR |
1,104 |
|
Datasheet |
HF | Radial, Vertical Cylinder (Open) | Bulk | Active | Toroidal | - | 33 µH | ±10% | 1.78 A | 1.5A | Unshielded | 80mOhm Max | - | 10MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.320" Dia x 0.150" L (8.13mm x 3.81mm) | - |
|
|
26HF3302HHORIZONTAL TOROIDAL INDUCTOR |
1,479 |
|
Datasheet |
HF | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 33 µH | ±10% | 1.78 A | 1.5A | Unshielded | 80mOhm Max | - | 10MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.320" Dia (8.13mm) | 0.150" (3.80mm) |
|
PL9309TFIXED IND 12UH 3A 45.2 MOHM SMD |
3,081 |
|
Datasheet |
PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±20% | 3 A | 3.4A | Shielded | 45.2mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|

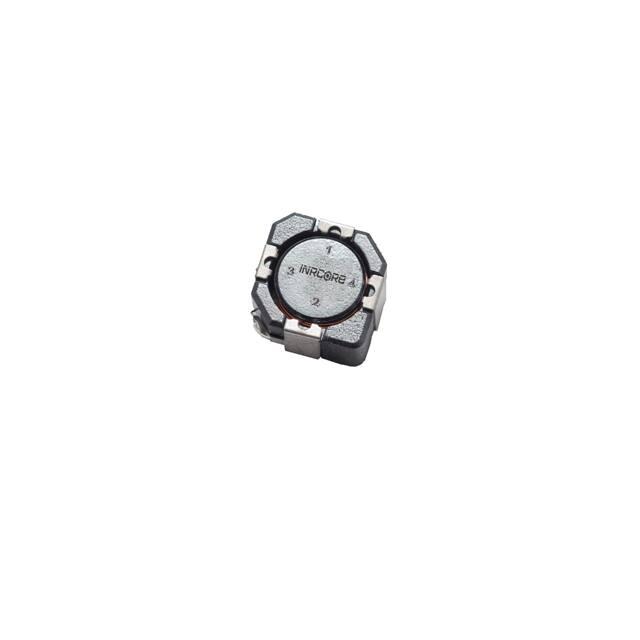

PL9313TFIXED IND 47UH 1.65A 142MOHM SMD |
1,969 |
|
Datasheet |
PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 1.65 A | 2.1A | Shielded | 142mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|
PL8124FIXED IND 292UH 900MA 560MOHM SM |
3,603 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 292 µH | - | 900 mA | - | Unshielded | 560mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.410" (10.41mm) |
|
|
IHB1BV100KFIXED IND 10UH 8.2A 10 MOHM TH |
3,107 |
|
Datasheet |
IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 10 µH | ±10% | 8.2 A | - | Unshielded | 10mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
|
IHB1BV101KFIXED IND 100UH 2.7A 95 MOHM TH |
3,727 |
|
Datasheet |
IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 100 µH | ±10% | 2.7 A | - | Unshielded | 95mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
|
IHB1BV120KFIXED IND 12UH 7.8A 11 MOHM TH |
4,316 |
|
Datasheet |
IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 12 µH | ±10% | 7.8 A | - | Unshielded | 11mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
|
IHB1BV121KFIXED IND 120UH 2.3A 127 MOHM TH |
1,398 |
|
Datasheet |
IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 120 µH | ±10% | 2.3 A | - | Unshielded | 127mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
|
IHB1BV150KFIXED IND 15UH 6.7A 15 MOHM TH |
1,045 |
|
Datasheet |
IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 15 µH | ±10% | 6.7 A | - | Unshielded | 15mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
|
IHB1BV151KFIXED IND 150UH 1.9A 181 MOHM TH |
4,030 |
|
Datasheet |
IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 150 µH | ±10% | 1.9 A | - | Unshielded | 181mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
|
IHB1BV180KFIXED IND 18UH 6.5A 16 MOHM TH |
4,016 |
|
Datasheet |
IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 18 µH | ±10% | 6.5 A | - | Unshielded | 16mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
|
IHB1BV220KFIXED IND 22UH 5.8A 20 MOHM TH |
2,988 |
|
Datasheet |
IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 22 µH | ±10% | 5.8 A | - | Unshielded | 20mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
|
IHB1BV221KFIXED IND 220UH 1.7A 240 MOHM TH |
1,894 |
|
Datasheet |
IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 220 µH | ±10% | 1.7 A | - | Unshielded | 240mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
