Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UP2-R47-RFIXED IND 470NH 10.1A 4.9MOHM SM |
2,526 |
|
Datasheet |
UNI-PAC™ 2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±20% | 10.1 A | 11.4A | Unshielded | 4.9mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.541" L x 0.345" W (13.74mm x 8.76mm) | 0.231" (5.86mm) |
|
VLF403215MT-1R0N-CAFIXED IND 1UH 3.56A 31 MOHM SMD |
3,209 |
|
Datasheet |
VLF-M-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 3.56 A | 3.01A | Shielded | 31mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.126" W (4.00mm x 3.20mm) | 0.059" (1.50mm) |
|
ELL-8UV2R7NFIXED IND 2.7UH 4.75MA 10OHM SMD |
1,663 |
|
Datasheet |
ELL-8UV | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.7 µH | ±30% | 4.75 mA | - | Unshielded | 10Ohm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
|
|
ELL-8UV4R7NFIXED IND 4.7UH 4.2MA 12 OHM SMD |
3,738 |
|
Datasheet |
ELL-8UV | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 4.2 mA | - | Unshielded | 12Ohm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
|
|
ELL-8UV100MFIXED IND 10UH 3MA 22 OHM SMD |
4,699 |
|
Datasheet |
ELL-8UV | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3 mA | - | Unshielded | 22Ohm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
|
|
ELL-8UV470MFIXED IND 47UH 1.25MA 100OHM SMD |
3,282 |
|
Datasheet |
ELL-8UV | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.25 mA | - | Unshielded | 100Ohm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
|
|
ELL-8UV101MFIXED IND 100UH 0.82MA 160OHM SM |
1,314 |
|
Datasheet |
ELL-8UV | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 0.82 mA | - | Unshielded | 160Ohm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
|
ELL-CTV102MFIXED IND 1MH 410MA 1.5 OHM SMD |
3,726 |
|
Datasheet |
V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 410 mA | - | Shielded | 1.5Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|

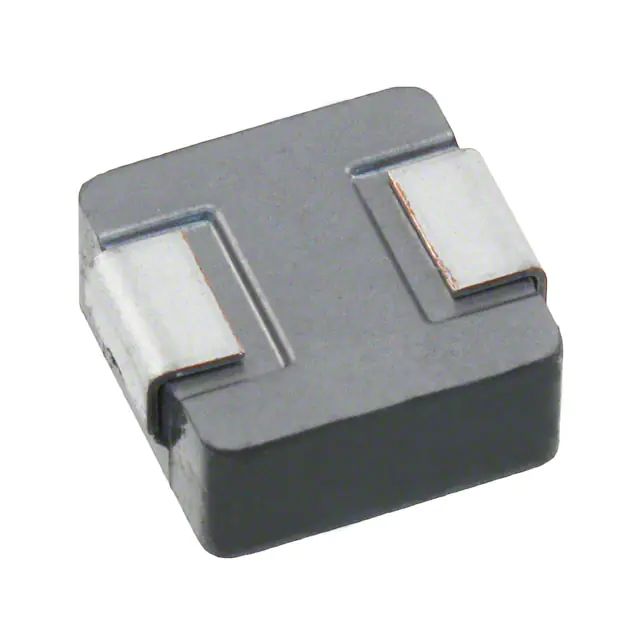

PCMC063T-2R2MNFIXED IND 2.2UH 8A 20 MOHM SMD |
1,686 |
|
Datasheet |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 2.2 µH | ±20% | 8 A | 14A | Unshielded | 20mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
PCMC063T-3R3MNFIXED IND 3.3UH 6A 30 MOHM SMD |
4,252 |
|
Datasheet |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 3.3 µH | ±20% | 6 A | 13.5A | Unshielded | 30mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
PCMC063T-4R7MNFIXED IND 4.7UH 5.5A 40 MOHM SMD |
3,203 |
|
Datasheet |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 4.7 µH | ±20% | 5.5 A | 10A | Unshielded | 40mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
ELL-8UV221MFIXED IND 220UH 0.66MA 370OHM SM |
2,258 |
|
Datasheet |
ELL-8UV | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 0.66 mA | - | Unshielded | 370Ohm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
|
PA2202.361NLTFIXED IND 365NH 27A 0.48MOHM SMD |
4,685 |
|
Datasheet |
PA2202.XXXNL | Nonstandard | Tape & Reel (TR) | Active | - | - | 365 nH | ±15% | 27 A | 30A | Unshielded | 0.48mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.476" L x 0.394" W (12.10mm x 10.00mm) | 0.236" (6.00mm) |
|
CD43NP-220MCFIXED IND 22UH 680MA 378MOHM SMD |
3,649 |
|
Datasheet |
CD43 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 680 mA | - | Unshielded | 378mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
CD43NP-3R9MCFIXED IND 3.9UH 1.84A 93.7 MOHM |
3,190 |
|
Datasheet |
CD43 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.9 µH | ±20% | 1.84 A | - | Unshielded | 93.7mOhm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
PA4304.102NLTFIXED IND 1UH 8.5A 11 MOHM SMD |
4,004 |
|
Datasheet |
PA4304.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 8.5 A | - | Shielded | 11mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
PA4304.105NLTFIXED IND 1MH 360MA 2.27 OHM SMD |
1,449 |
|
Datasheet |
PA4304.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 360 mA | - | Shielded | 2.27Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
PA4304.122NLTFIXED IND 1.2UH 8A 12 MOHM SMD |
2,234 |
|
Datasheet |
PA4304.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 8 A | - | Shielded | 12mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
PA4304.123NLTFIXED IND 12UH 3.5A 27 MOHM SMD |
1,824 |
|
Datasheet |
PA4304.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 3.5 A | - | Shielded | 27mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
PA4304.124NLTFIXED IND 120UH 1.1A 170MOHM SMD |
1,419 |
|
Datasheet |
PA4304.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 1.1 A | - | Shielded | 170mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
