Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
#B953AS-390M=P3FIXED IND 39UH 2.2A 74 MOHM SMD |
3,176 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 2.2 A | 2.7A | Shielded | 74mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.268" (6.80mm) |
|
|
#B953AS-560M=P3FIXED IND 56UH 1.9A 105 MOHM SMD |
4,563 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 1.9 A | 2A | Shielded | 105mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.268" (6.80mm) |
|
|
#B953AS-181M=P3FIXED IND 180UH 1.1A 290MOHM SMD |
4,286 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 180 µH | ±20% | 1.1 A | 1.1A | Shielded | 290mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.268" (6.80mm) |
|
|
#B953AS-271M=P3FIXED IND 270UH 920MA 415MOHM SM |
2,744 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 270 µH | ±20% | 920 mA | 930mA | Shielded | 415mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.268" (6.80mm) |
|
|
#B953AS-471M=P3FIXED IND 470UH 700MA 705MOHM SM |
3,862 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 700 mA | 670mA | Shielded | 705mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.268" (6.80mm) |
|
|
#B953AS-561M=P3FIXED IND 560UH 640MA 900MOHM SM |
2,079 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 560 µH | ±20% | 640 mA | 620mA | Shielded | 900mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.268" (6.80mm) |
|
SMP3013-104KMOLDED UNSHIELDED INDUCTOR |
1,809 |
|
Datasheet |
SMP3013 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 1 mH | ±10% | 105 mA | 0.13mA | Unshielded | 20.9Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.313" L x 0.120" W (7.94mm x 3.05mm) | 0.145" (3.68mm) |
|
|
19F513JMOLDED UNSHIELDED RF COILS AXL |
1,808 |
|
Datasheet |
19F | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 510 µH | ±5% | 179 mA | - | Unshielded | 8.7Ohm Max | - | 3.8MHz | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.190" Dia x 0.440" L (4.83mm x 11.18mm) | - |
|
|
C0603C-100NG1T4FIXED IND 100NH 300MA 750MOHM SM |
2,612 |
|
Datasheet |
C0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 100 nH | ±2% | 300 mA | - | Unshielded | 750mOhm Max | 34 @ 150MHz | 1.4GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.040" (1.02mm) |
|
|
C0603C-110NG1T2FIXED IND 110NH 300MA 610MOHM SM |
2,637 |
|
Datasheet |
C0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 110 nH | ±2% | 300 mA | - | Unshielded | 610mOhm Max | 32 @ 150MHz | 1.3GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.040" (1.02mm) |
|
|
C0603C-12N0G1T2FIXED IND 12NH 700MA 130MOHM SMD |
4,350 |
|
Datasheet |
C0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 12 nH | ±2% | 700 mA | - | Unshielded | 130mOhm Max | 35 @ 250MHz | 4GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.040" (1.02mm) |
|
|
C0603C-330NG1T2FIXED IND 330NH 100MA 3.89OHM SM |
4,839 |
|
Datasheet |
C0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 330 nH | ±2% | 100 mA | - | Unshielded | 3.89Ohm Max | 19 @ 100MHz | 400MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.040" (1.02mm) |
|
|
C0603C-7N50G1T3FIXED IND 7.5NH 700MA 140MOHM SM |
2,145 |
|
Datasheet |
C0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 7.5 nH | ±2% | 700 mA | - | Unshielded | 140mOhm Max | 28 @ 250MHz | 4.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.040" (1.02mm) |
|
|
MLRF10M182KMIL MOLDED AXIAL RF COIL |
3,207 |
|
Datasheet |
MLRF10M | Axial | Tape & Reel (TR) | Active | - | Iron Powder | 18 µH | ±10% | 145 mA | - | Unshielded | 3.1Ohm Max | 50 @ 2.5MHz | 30MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.42mm x 6.35mm) | - |
|

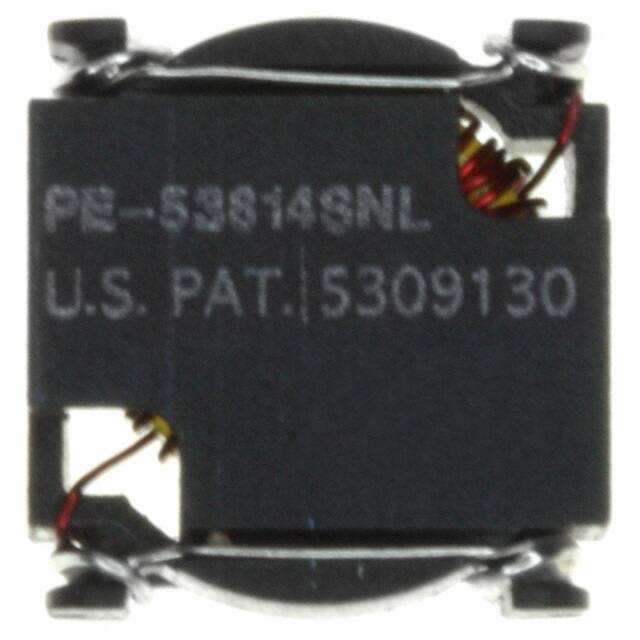

PE-53814SNLFIXED IND 39UH 680MA 300MOHM SMD |
4,602 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 39 µH | ±20% | 680 mA | - | Shielded | 300mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
|
PE-53814SNLTFIXED IND 39UH 680MA 300MOHM SMD |
4,389 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 39 µH | ±20% | 680 mA | - | Shielded | 300mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
PE-53934SNLTFIXED IND 17UH 3A 50 MOHM SMD |
3,140 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 17 µH | ±20% | 3 A | - | Shielded | 50mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
UP2-1R5-RFIXED IND 1.5UH 8.1A 10.3MOHM SM |
1,534 |
|
Datasheet |
UNI-PAC™ 2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 8.1 A | 7.9A | Unshielded | 10.3mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.541" L x 0.345" W (13.74mm x 8.76mm) | 0.231" (5.86mm) |
|
|
UP2-220-RFIXED IND 22UH 2.9A 64.4MOHM SMD |
1,252 |
|
Datasheet |
UNI-PAC™ 2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 2.9 A | 2A | Unshielded | 64.4mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.541" L x 0.345" W (13.74mm x 8.76mm) | 0.231" (5.86mm) |
|
|
UP2-820-RFIXED IND 82UH 1.5A 247.3MOHM SM |
4,656 |
|
Datasheet |
UNI-PAC™ 2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 82 µH | ±20% | 1.5 A | 1A | Unshielded | 247.3mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.541" L x 0.345" W (13.74mm x 8.76mm) | 0.231" (5.86mm) |
