Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBH6045C-220MA=P3FIXED IND 22UH 1.2A 166.8MOHM SM |
4,763 |
|
Datasheet |
MBH6045C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.2 A | 2A | Shielded | 166.8mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.189" (4.80mm) |
|
|
MBH6045C-220MB=P3FIXED IND 22UH 1.7A 93.6MOHM SMD |
1,028 |
|
Datasheet |
MBH6045C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.7 A | 1.2A | Shielded | 93.6mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.189" (4.80mm) |
|
|
MBH6045C-330MB=P3FIXED IND 33UH 1.5A 123.5MOHM SM |
1,850 |
|
Datasheet |
MBH6045C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.5 A | 930mA | Shielded | 123.5mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.189" (4.80mm) |
|
|
MBH6045C-3R3NA=P3FIXED IND 3.3UH 3.4A 31.2MOHM SM |
1,169 |
|
Datasheet |
MBH6045C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 3.4 A | 5.4A | Shielded | 31.2mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.189" (4.80mm) |
|
|
MBH6045C-3R3NB=P3FIXED IND 3.3UH 3.5A 24.7MOHM SM |
3,294 |
|
Datasheet |
MBH6045C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 3.5 A | 3.1A | Shielded | 24.7mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.189" (4.80mm) |
|
|
MBH6045C-470MB=P3FIXED IND 47UH 1.1A 156MOHM SMD |
3,965 |
|
Datasheet |
MBH6045C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.1 A | 740mA | Shielded | 156mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.189" (4.80mm) |
|
|
MBH6045C-471MB=P3FIXED IND 470UH 410MA 1.704 OHM |
4,941 |
|
Datasheet |
MBH6045C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 410 mA | 240mA | Shielded | 1.704Ohm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.189" (4.80mm) |
|
|
MBH6045C-4R7NA=P3FIXED IND 4.7UH 2.8A 37.7MOHM SM |
3,813 |
|
Datasheet |
MBH6045C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 2.8 A | 4.4A | Shielded | 37.7mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.189" (4.80mm) |
|
|
MBH6045C-4R7NB=P3FIXED IND 4.7UH 3.2A 29.9MOHM SM |
3,241 |
|
Datasheet |
MBH6045C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 3.2 A | 2.6A | Shielded | 29.9mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.189" (4.80mm) |
|
|
MBH6045C-680MB=P3FIXED IND 68UH 940MA 258MOHM SMD |
3,769 |
|
Datasheet |
MBH6045C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 940 mA | 640mA | Shielded | 258mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.189" (4.80mm) |
|
|
MBH6045C-6R8NB=P3FIXED IND 6.8UH 2.6A 35.1MOHM SM |
4,121 |
|
Datasheet |
MBH6045C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 2.6 A | 2.1A | Shielded | 35.1mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.189" (4.80mm) |
|

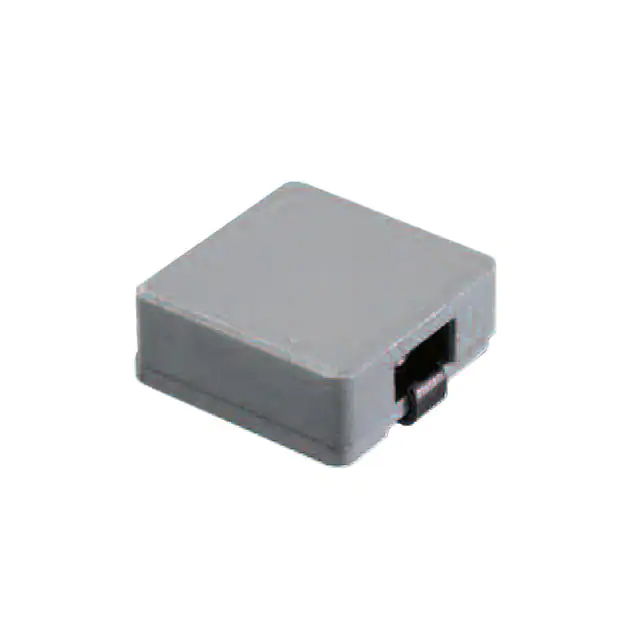

AX02-301R5-TFIXED IND 1.5UH 18A 2.3MOHM SMD |
4,297 |
|
Datasheet |
AX02 | 2-SMD, J-Lead | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 18 A | 30A | Shielded | 2.3mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.524" L x 0.591" W (13.30mm x 15.00mm) | 0.256" (6.50mm) |
|
|
AX02-302R2-TFIXED IND 2.2UH 12A 5.1 MOHM |
4,125 |
|
Datasheet |
AX02 | 2-SMD, J-Lead | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 12 A | 24A | Shielded | 5.1mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.524" L x 0.591" W (13.30mm x 15.00mm) | 0.256" (6.50mm) |
|
ATCA-03-231M-HFIXED IND 230UH 2A 108 MOHM TH |
2,732 |
|
Datasheet |
ATCA | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 230 µH | ±20% | 2 A | - | Unshielded | 108mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.945" Dia (24.00mm) | 0.453" (11.50mm) |
|
ATCA-03-231M-VFIXED IND 230UH 2A 108 MOHM TH |
4,289 |
|
Datasheet |
ATCA | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 230 µH | ±20% | 2 A | - | Unshielded | 108mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.945" L x 0.453" W (24.00mm x 11.50mm) | - |
|
#B953AS-3R9N=P3FIXED IND 3.9UH 6A 14 MOHM SMD |
4,246 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 3.9 µH | ±30% | 6 A | 7.9A | Shielded | 14mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.268" (6.80mm) |
|
|
#B953AS-5R6N=P3FIXED IND 5.6UH 5.6A 16 MOHM SMD |
3,365 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 5.6 µH | ±30% | 5.6 A | 6.8A | Shielded | 16mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.268" (6.80mm) |
|
|
#B953AS-220M=P3FIXED IND 22UH 2.9A 46 MOHM SMD |
3,087 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.9 A | 3.6A | Shielded | 46mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.268" (6.80mm) |
|
|
#B953AS-270M=P3FIXED IND 27UH 2.8A 50 MOHM SMD |
4,340 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 2.8 A | 3.2A | Shielded | 50mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.268" (6.80mm) |
|
|
#B953AS-330M=P3FIXED IND 33UH 2.4A 64 MOHM SMD |
3,439 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.4 A | 3A | Shielded | 64mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.268" (6.80mm) |
