Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP2020BZET3R3M01FIXED IND 3.3UH 3.3A 85.5MOHM SM |
1,728 |
|
Datasheet |
IHLP-2020BZ-01 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 3.3 µH | ±20% | 3.3 A | 8.5A | Shielded | 85.5mOhm Max | - | 30MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
|
IHLP2020BZET4R7M01FIXED IND 4.7UH 2.8A 116.6 MOHM |
2,784 |
|
Datasheet |
IHLP-2020BZ-01 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 4.7 µH | ±20% | 2.8 A | 5A | Shielded | 116.6mOhm Max | - | 28MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
IHLP2020BZET5R6M01FIXED IND 5.6UH 2.5A 122MOHM SMD |
3,735 |
|
Datasheet |
IHLP-2020BZ-01 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 5.6 µH | ±20% | 2.5 A | 4.5A | Shielded | 122mOhm Max | - | 24MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
|
IHLP2020BZET6R8M01FIXED IND 6.8UH 2.4A 150MOHM SMD |
1,323 |
|
Datasheet |
IHLP-2020BZ-01 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 6.8 µH | ±20% | 2.4 A | 4.3A | Shielded | 150mOhm Max | - | 21MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
|
IHLP2020BZET100M01FIXED IND 10UH 2.3A 199MOHM SMD |
2,410 |
|
Datasheet |
IHLP-2020BZ-01 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 10 µH | ±20% | 2.3 A | 4A | Shielded | 199mOhm Max | - | 20MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|

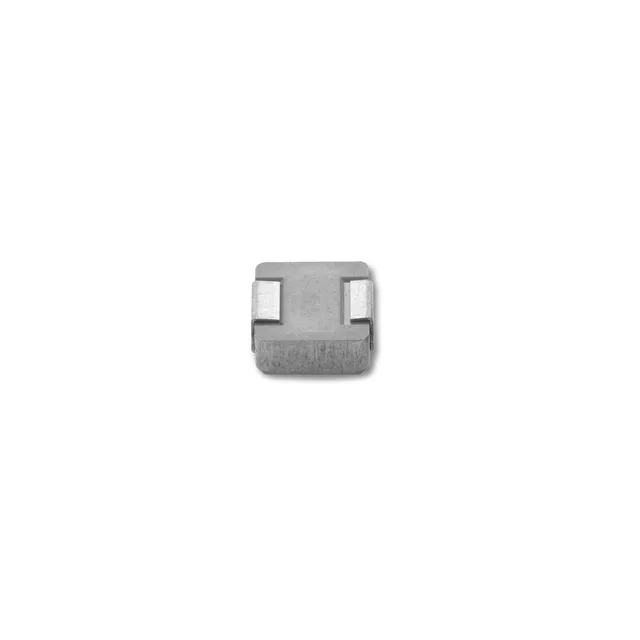

IHLP2020BZETR22M11FIXED IND 220NH 17A 4.5MOHM SMD |
3,081 |
|
Datasheet |
IHLP-2020BZ-11 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 220 nH | ±20% | 17 A | 13A | Shielded | 4.5mOhm Max | - | 146MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
|
IHLP2020BZETR33M11FIXED IND 330NH 13A 5.9MOHM SMD |
3,175 |
|
Datasheet |
IHLP-2020BZ-11 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 330 nH | ±20% | 13 A | 7.5A | Shielded | 5.9mOhm Max | - | 108MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
|
IHLP2020BZETR47M11FIXED IND 470NH 12.5A 7.7MOHM SM |
1,635 |
|
Datasheet |
IHLP-2020BZ-11 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 470 nH | ±20% | 12.5 A | 8A | Shielded | 7.7mOhm Max | - | 83MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
|
IHLP2020BZET1R0M11FIXED IND 1UH 7.5A 18.1MOHM SMD |
1,651 |
|
Datasheet |
IHLP-2020BZ-11 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 1 µH | ±20% | 7.5 A | 7A | Shielded | 18.1mOhm Max | - | 66MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
|
IHLP2020BZET2R2M11FIXED IND 2.2UH 5A 37.7MOHM SMD |
2,350 |
|
Datasheet |
IHLP-2020BZ-11 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 2.2 µH | ±20% | 5 A | 5.5A | Shielded | 37.7mOhm Max | - | 41MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
|
IHLP2020BZET3R3M11FIXED IND 3.3UH 4.1A 57.8MOHM SM |
1,795 |
|
Datasheet |
IHLP-2020BZ-11 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 3.3 µH | ±20% | 4.1 A | 4.7A | Shielded | 57.8mOhm Max | - | 29MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
IHLP2525CZETR10N01FIXED IND 100NH 32.5A 1.7MOHM SM |
4,929 |
|
Datasheet |
IHLP-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 100 nH | ±30% | 32.5 A | 60A | Shielded | 1.7mOhm Max | - | 400MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
IHLP2525CZETR15N01FIXED IND 150NH 26A 2.5MOHM SMD |
2,257 |
|
Datasheet |
IHLP-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 150 nH | ±30% | 26 A | 52A | Shielded | 2.5mOhm Max | - | 180MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
IHLP2525CZETR20N01FIXED IND 200NH 24A 3 MOHM SMD |
3,501 |
|
Datasheet |
IHLP-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 200 nH | ±30% | 24 A | 41A | Shielded | 3mOhm Max | - | 150MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
IHLP2525CZETR22N01FIXED IND 220NH 23A 2.8MOHM SMD |
1,736 |
|
Datasheet |
IHLP-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 220 nH | ±30% | 23 A | 40A | Shielded | 2.8mOhm Max | - | 126MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
IHLP2525CZETR33M01FIXED IND 330NH 20A 3.9MOHM SMD |
1,175 |
|
Datasheet |
IHLP-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 330 nH | ±20% | 20 A | 30A | Shielded | 3.9mOhm Max | - | 100MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
IHLP2525CZETR47M01FIXED IND 470NH 17.5A 4.2MOHM SM |
3,667 |
|
Datasheet |
IHLP-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 470 nH | ±20% | 17.5 A | 26A | Shielded | 4.2mOhm Max | - | 75MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
IHLP2525CZETR68M01FIXED IND 680NH 15.5A 5.5MOHM SM |
1,813 |
|
Datasheet |
IHLP-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 680 nH | ±20% | 15.5 A | 25A | Shielded | 5.5mOhm Max | - | 62MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
IHLP2525CZETR82M01FIXED IND 820NH 13A 8 MOHM SMD |
1,062 |
|
Datasheet |
IHLP-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 820 nH | ±20% | 13 A | 24A | Shielded | 8mOhm Max | - | 60MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
IHLP2525CZET1R0M01FIXED IND 1UH 11A 10 MOHM SMD |
2,871 |
|
Datasheet |
IHLP-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 1 µH | ±20% | 11 A | 22A | Shielded | 10mOhm Max | - | 55MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
