Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM1608-100M-RCFIXED IND 10UH 1.1A 160 MOHM SMD |
1,990 |
|
Datasheet |
PM1608 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.1 A | 1.1A | Unshielded | 160mOhm Max | 17 @ 2.52MHz | 35MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608-101M-RCFIXED IND 100UH 300MA 1.3OHM SMD |
2,227 |
|
Datasheet |
PM1608 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 300 mA | 310mA | Unshielded | 1.3Ohm Max | 29 @ 796kHz | 9MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608-102M-RCFIXED IND 1MH 70MA 13.8 OHM SMD |
4,167 |
|
Datasheet |
PM1608 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 70 mA | 100mA | Unshielded | 13.8Ohm Max | 71 @ 252kHz | 2MHz | - | -40°C ~ 125°C | 252 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608-150M-RCFIXED IND 15UH 1A 230 MOHM SMD |
1,155 |
|
Datasheet |
PM1608 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1 A | 900mA | Unshielded | 230mOhm Max | 17 @ 2.52MHz | 30MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608-151M-RCFIXED IND 150UH 250MA 2 OHM SMD |
4,273 |
|
Datasheet |
PM1608 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 250 mA | 270mA | Unshielded | 2Ohm Max | 41 @ 796kHz | 6MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608-1R0M-RCFIXED IND 1UH 2.9A 50 MOHM SMD |
4,902 |
|
Datasheet |
PM1608 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 2.9 A | 2.9A | Unshielded | 50mOhm Max | 20 @ 7.96MHz | 130MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608-1R5M-RCFIXED IND 1.5UH 2.8A 50 MOHM SMD |
2,692 |
|
Datasheet |
PM1608 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 2.8 A | 2.6A | Unshielded | 50mOhm Max | 19 @ 7.96MHz | 115MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608-220M-RCFIXED IND 22UH 800MA 370MOHM SMD |
1,753 |
|
Datasheet |
PM1608 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 800 mA | 700mA | Unshielded | 370mOhm Max | 16 @ 2.52MHz | 20MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608-2R2M-RCFIXED IND 2.2UH 2.4A 70 MOHM SMD |
3,689 |
|
Datasheet |
PM1608 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.4 A | 2.3A | Unshielded | 70mOhm Max | 18 @ 7.96MHz | 90MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608-330M-RCFIXED IND 33UH 60MA 510 MOHM SMD |
4,189 |
|
Datasheet |
PM1608 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 60 mA | 580mA | Unshielded | 510mOhm Max | 24 @ 2.52MHz | 15MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608-331M-RCFIXED IND 330UH 160MA 3.8OHM SMD |
4,877 |
|
Datasheet |
PM1608 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 160 mA | 180mA | Unshielded | 3.8Ohm Max | 42 @ 796kHz | 5MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608-3R3M-RCFIXED IND 3.3UH 2A 80 MOHM SMD |
2,819 |
|
Datasheet |
PM1608 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2 A | 2A | Unshielded | 80mOhm Max | 18.5 @ 7.96MHz | 70MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608-470M-RCFIXED IND 47UH 500MA 640MOHM SMD |
2,464 |
|
Datasheet |
PM1608 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 500 mA | 500mA | Unshielded | 640mOhm Max | 15 @ 2.52MHz | 14MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608-471M-RCFIXED IND 470UH 150MA 5.1OHM SMD |
2,864 |
|
Datasheet |
PM1608 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 150 mA | 160mA | Unshielded | 5.1Ohm Max | 42 @ 796kHz | 4MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608-4R7M-RCFIXED IND 4.7UH 1.5A 90 MOHM SMD |
1,927 |
|
Datasheet |
PM1608 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.5 A | 1.5A | Unshielded | 90mOhm Max | 17 @ 7.96MHz | 50MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608-680M-RCFIXED IND 68UH 400MA 860MOHM SMD |
4,043 |
|
Datasheet |
PM1608 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 400 mA | 400mA | Unshielded | 860mOhm Max | 18 @ 2.52MHz | 11MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608-681M-RCFIXED IND 680UH 120MA 9.2OHM SMD |
1,436 |
|
Datasheet |
PM1608 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 120 mA | 140mA | Unshielded | 9.2Ohm Max | 58 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608-6R8M-RCFIXED IND 6.8UH 1.4A 130MOHM SMD |
2,050 |
|
Datasheet |
PM1608 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.4 A | 1.2A | Unshielded | 130mOhm Max | 15.5 @ 7.96MHz | 45MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|

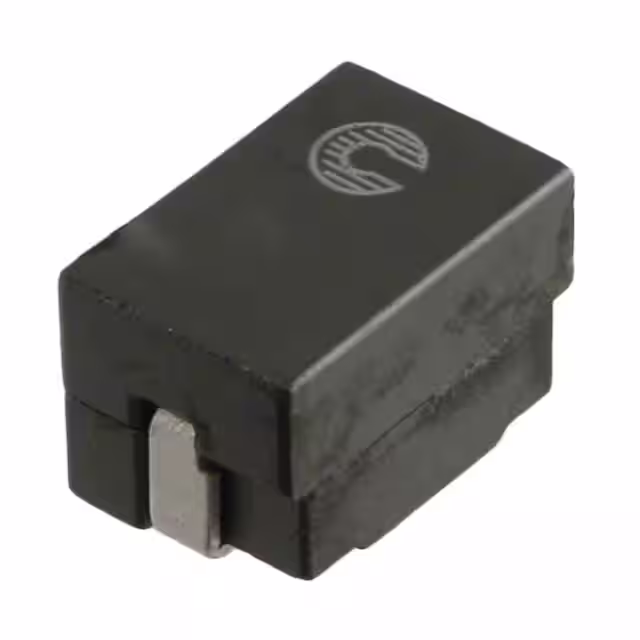

FP1107R2-R30-RFIXED IND 300NH 42A 0.47MOHM SMD |
4,944 |
|
Datasheet |
FLAT-PAC, FP1107 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 300 nH | ±10% | 42 A | 35A | Unshielded | 0.47mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.283" W (11.00mm x 7.20mm) | 0.283" (7.20mm) |
|
FP1107R1-R07-RFIXED IND 70NH 55A 0.29 MOHM SMD |
1,572 |
|
Datasheet |
FLAT-PAC, FP1107 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 70 nH | ±10% | 55 A | 140A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.283" W (11.00mm x 7.20mm) | 0.295" (7.50mm) |
