Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EST1040T1R5NDGAFIXED IND 1.5UH 3.3A 12 MOHM SMD |
2,909 |
|
Datasheet |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 3.3 A | 8.6A | Shielded | 12mOhm Max | - | 68MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.169" (4.30mm) |
|
|
EST1040T2R2NDGAFIXED IND 2.2UH 3.1A 14 MOHM SMD |
1,547 |
|
Datasheet |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 3.1 A | 7.5A | Shielded | 14mOhm Max | - | 55MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.169" (4.30mm) |
|
|
EST1040T3R3NDGAFIXED IND 3.3UH 2.9A 17 MOHM SMD |
2,007 |
|
Datasheet |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 2.9 A | 6.6A | Shielded | 17mOhm Max | - | 43MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.169" (4.30mm) |
|
|
EST1040T4R7NDGAFIXED IND 4.7UH 2.7A 25 MOHM SMD |
4,398 |
|
Datasheet |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 2.7 A | 5.2A | Shielded | 25mOhm Max | - | 31MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.169" (4.30mm) |
|
|
EST1040T150MDGAFIXED IND 15UH 1.6A 52 MOHM SMD |
2,967 |
|
Datasheet |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.6 A | 2.9A | Shielded | 52mOhm Max | - | 18MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.169" (4.30mm) |
|
|
EST1040T470MDGAFIXED IND 47UH 760MA 162MOHM SMD |
4,642 |
|
Datasheet |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 760 mA | 1.7A | Shielded | 162mOhm Max | - | 9.4MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.169" (4.30mm) |
|
|
EST1040T221MDGAFIXED IND 220UH 410MA 636MOHM SM |
1,309 |
|
Datasheet |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 410 mA | 770mA | Shielded | 636mOhm Max | - | 4.2MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.169" (4.30mm) |
|
|
EST1040T331MDGAFIXED IND 330UH 290MA 1.152 OHM |
3,619 |
|
Datasheet |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 290 mA | 610mA | Shielded | 1.152Ohm Max | - | 3.4MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.169" (4.30mm) |
|
|
EST1040T471MDGAFIXED IND 470UH 250MA 1.44OHM SM |
1,171 |
|
Datasheet |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 250 mA | 530mA | Shielded | 1.44Ohm Max | - | 3MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.169" (4.30mm) |
|

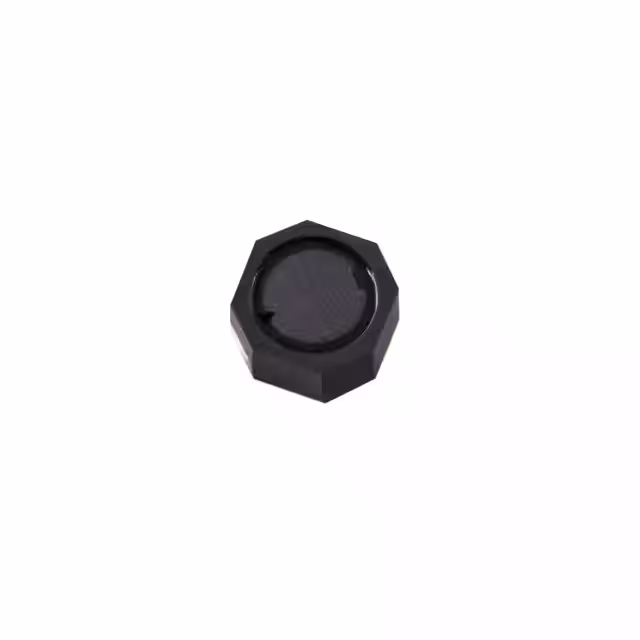

LMXS0606M471BTASFIXED IND 470UH 2.58 OHM SMD |
1,997 |
|
- |
LMXS | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 470 µH | ±20% | - | 200mA | Shielded | 2.58Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.232" L x 0.232" W (5.90mm x 5.90mm) | 0.118" (3.00mm) |
|
1638-00JFIXED IND 270UH 143MA 11 OHM TH |
1,472 |
|
Datasheet |
1638 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 270 µH | ±5% | 143 mA | - | Unshielded | 11Ohm Max | 65 @ 790kHz | 5.7MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1638-02JFIXED IND 300UH 140MA 11.5OHM TH |
4,371 |
|
Datasheet |
1638 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 300 µH | ±5% | 140 mA | - | Unshielded | 11.5Ohm Max | 65 @ 790kHz | 5.4MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1638-04JFIXED IND 330UH 136MA 12 OHM TH |
4,437 |
|
Datasheet |
1638 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 330 µH | ±5% | 136 mA | - | Unshielded | 12Ohm Max | 65 @ 790kHz | 5.1MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1638-06JFIXED IND 360UH 134MA 12.5OHM TH |
4,074 |
|
Datasheet |
1638 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 360 µH | ±5% | 134 mA | - | Unshielded | 12.5Ohm Max | 65 @ 790kHz | 4.8MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1638-08JFIXED IND 390UH 117MA 16.3OHM TH |
2,058 |
|
Datasheet |
1638 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 390 µH | ±5% | 117 mA | - | Unshielded | 16.3Ohm Max | 65 @ 790kHz | 4.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1638-10JFIXED IND 430UH 115MA 17.1OHM TH |
1,068 |
|
Datasheet |
1638 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 430 µH | ±5% | 115 mA | - | Unshielded | 17.1Ohm Max | 65 @ 790kHz | 4.2MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1638-12JFIXED IND 470UH 112MA 17.9OHM TH |
2,166 |
|
Datasheet |
1638 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 470 µH | ±5% | 112 mA | - | Unshielded | 17.9Ohm Max | 65 @ 790kHz | 3.9MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1638-14JFIXED IND 510UH 109MA 18.8OHM TH |
2,626 |
|
Datasheet |
1638 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 510 µH | ±5% | 109 mA | - | Unshielded | 18.8Ohm Max | 65 @ 790kHz | 3.7MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1638-16JFIXED IND 560UH 107MA 19.5OHM TH |
1,635 |
|
Datasheet |
1638 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 560 µH | ±5% | 107 mA | - | Unshielded | 19.5Ohm Max | 65 @ 790kHz | 3.8MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1638-18JFIXED IND 620UH 93MA 25.9 OHM TH |
3,297 |
|
Datasheet |
1638 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 620 µH | ±5% | 93 mA | - | Unshielded | 25.9Ohm Max | 65 @ 790kHz | 3.3MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
