Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCM1A1305V2-120-RFIXED IND 12UH 7A 23 MOHM SMD |
3,034 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 12 µH | ±20% | 7 A | 9A | Shielded | 23mOhm Max | - | 6MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
|
HCM1A1305V2-6R0-RFIXED IND 6UH 9.7A 12.7 MOHM SMD |
3,090 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 6 µH | ±20% | 9.7 A | 16A | Shielded | 12.7mOhm Max | - | 11MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
|
HCM1A1305V2-R56-RFIXED IND 560NH 29.5A 1.33 MOHM |
1,349 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 560 nH | ±20% | 29.5 A | 50A | Shielded | 1.33mOhm Max | - | 57MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
IM04BH1R0JFIXED IND 1UH 785MA 290 MOHM TH |
4,475 |
|
Datasheet |
IM | Axial | - | Obsolete | Molded | Phenolic | 1 µH | ±5% | 785 mA | - | Unshielded | 290mOhm Max | 50 @ 25MHz | 200MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.155" Dia x 0.375" L (3.94mm x 9.53mm) | - |
|
FP1007R2-R12-RFIXED IND 120NH 51A 0.48MOHM SMD |
1,329 |
|
Datasheet |
FLAT-PAC, FP1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±10% | 51 A | 81A | Unshielded | 0.48mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.256" (6.50mm) |
|
HM72E-064R7LFTR13FIXED IND 4.7UH 5.4A 42 MOHM SMD |
2,860 |
|
Datasheet |
HM72E-06 | 2-SMD | Cut Tape (CT) | Discontinued at Digi-Key | Molded | - | 4.7 µH | ±20% | 5.4 A | 6.5A | Unshielded | 42mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.268" W (7.23mm x 6.80mm) | 0.118" (3.00mm) |
|
0402DC-2N0XJRW0402DC-2N0XJRW |
1,651 |
|
Datasheet |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | 2 nH | ±5% | 2 A | - | Unshielded | 35mOhm Max | 60 @ 900MHz | 15.6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.65mm) |
|
|
0402DC-3N8XJRWFIXED IND 3.8NH 2.05A 46MOHM SM |
1,406 |
|
Datasheet |
0402DC | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 3.8 nH | ±5% | 2.05 A | - | Unshielded | 46mOhm Max | 69 @ 900MHz | 12.92GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.65mm) |
|

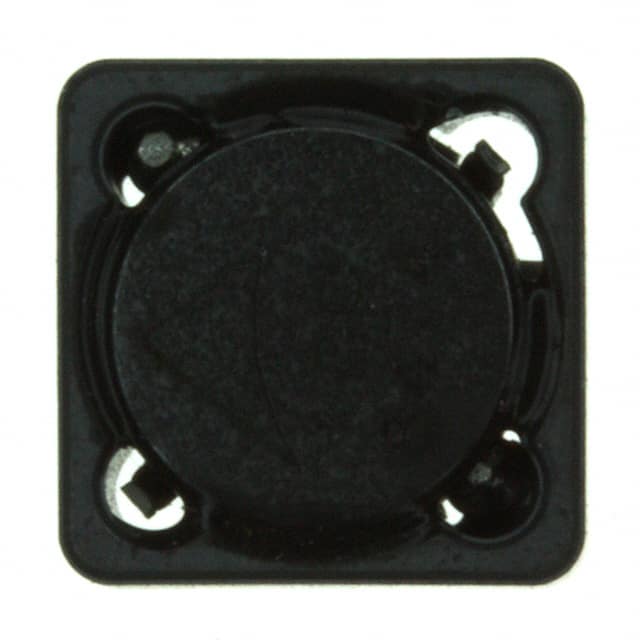

B82464Z4103MFIXED IND 10UH 3.4A 30 MOHM SMD |
4,219 |
|
Datasheet |
B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.4 A | 3.5A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
B82464Z4222MFIXED IND 2.2UH 6.5A 10 MOHM SMD |
4,108 |
|
Datasheet |
B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 6.5 A | 7A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|

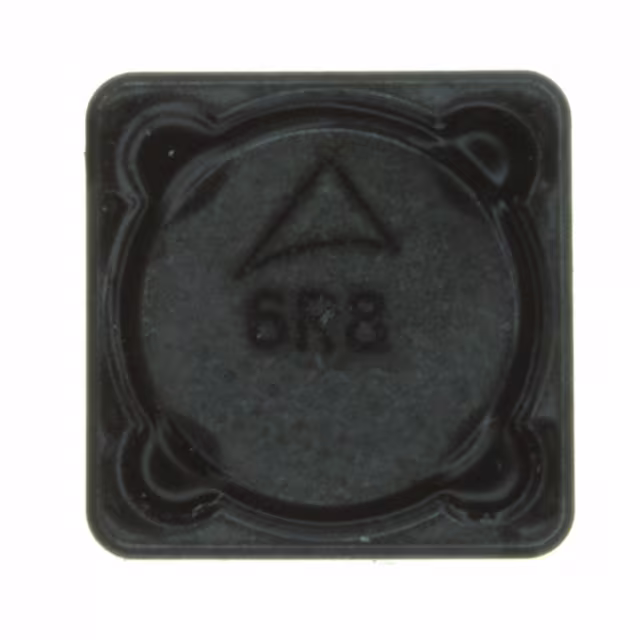

B82464Z4682MFIXED IND 6.8UH 4.3A 20 MOHM SMD |
2,885 |
|
Datasheet |
B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 4.3 A | 4.6A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
B82464Z4683MFIXED IND 68UH 1.3A 130 MOHM SMD |
1,100 |
|
Datasheet |
B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.3 A | 1.45A | Shielded | 130mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
39S681CFIXED IND 680NH 19.5A 1.9MOHM SM |
3,847 |
|
Datasheet |
3900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 nH | ±30% | 19.5 A | 20.4A | Unshielded | 1.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.508" W (12.90mm x 12.90mm) | 0.228" (5.80mm) |
|
|
39S152CFIXED IND 1.5UH 13.5A 2.5MOHM SM |
2,935 |
|
Datasheet |
3900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±30% | 13.5 A | 14A | Unshielded | 2.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.508" W (12.90mm x 12.90mm) | 0.228" (5.80mm) |
|
|
39S252CFIXED IND 2.5UH 10A 3.9 MOHM SMD |
2,135 |
|
Datasheet |
3900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.5 µH | ±20% | 10 A | 10A | Unshielded | 3.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.508" W (12.90mm x 12.90mm) | 0.228" (5.80mm) |
|
|
39S402CFIXED IND 4UH 8.3A 5.4 MOHM SMD |
4,871 |
|
Datasheet |
3900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4 µH | ±20% | 8.3 A | 8.3A | Unshielded | 5.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.508" W (12.90mm x 12.90mm) | 0.228" (5.80mm) |
|
|
39S602CFIXED IND 6UH 6.7A 8 MOHM SMD |
4,950 |
|
Datasheet |
3900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6 µH | ±20% | 6.7 A | 6.7A | Unshielded | 8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.508" W (12.90mm x 12.90mm) | 0.228" (5.80mm) |
|
|
39S822CFIXED IND 8.2UH 5.8A 11.4MOHM SM |
1,139 |
|
Datasheet |
3900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 8.2 µH | ±20% | 5.8 A | 5.8A | Unshielded | 11.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.508" W (12.90mm x 12.90mm) | 0.228" (5.80mm) |
|
|
39S103CFIXED IND 10UH 5A 13.5 MOHM SMD |
1,843 |
|
Datasheet |
3900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 5 A | 5A | Unshielded | 13.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.508" W (12.90mm x 12.90mm) | 0.228" (5.80mm) |
|
|
39H471CFIXED IND 470NH 19.5A 1.9MOHM SM |
4,801 |
|
Datasheet |
3900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±30% | 19.5 A | 28.8A | Unshielded | 1.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.508" W (12.90mm x 12.90mm) | 0.228" (5.80mm) |
