Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IDCS5020ER470MFIXED IND 47UH 800MA 472MOHM SMD |
1,261 |
|
Datasheet |
IDCS-5020 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 800 mA | 1A | Shielded | 472mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|
|
IDCS5020ER4R7MFIXED IND 4.7UH 2.7A 54 MOHM SMD |
3,418 |
|
Datasheet |
IDCS-5020 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2.7 A | 3.2A | Shielded | 54mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|
|
IDCS5020ER560MFIXED IND 56UH 900MA 210MOHM SMD |
4,309 |
|
Datasheet |
IDCS-5020 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 900 mA | 950mA | Shielded | 210mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|
|
IDCS5020ER680MFIXED IND 68UH 820MA 340MOHM SMD |
2,292 |
|
Datasheet |
IDCS-5020 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 820 mA | 900mA | Shielded | 340mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|
|
IDCS5020ER6R8MFIXED IND 6.8UH 2.2A 75 MOHM SMD |
1,531 |
|
Datasheet |
IDCS-5020 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 2.2 A | 2.8A | Shielded | 75mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|
70F332AFFIXED IND 33MH 43MA 134 OHM TH |
3,782 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 33 mH | ±5% | 43 mA | - | Unshielded | 134Ohm Max | 61 @ 79kHz | 232kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.350" Dia x 0.630" L (8.89mm x 16.00mm) | - |
|
|
70F252AFFIXED IND 25MH 46MA 115 OHM TH |
1,316 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 25 mH | ±5% | 46 mA | - | Unshielded | 115Ohm Max | 59 @ 79kHz | 250kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.340" Dia x 0.630" L (8.64mm x 16.00mm) | - |
|

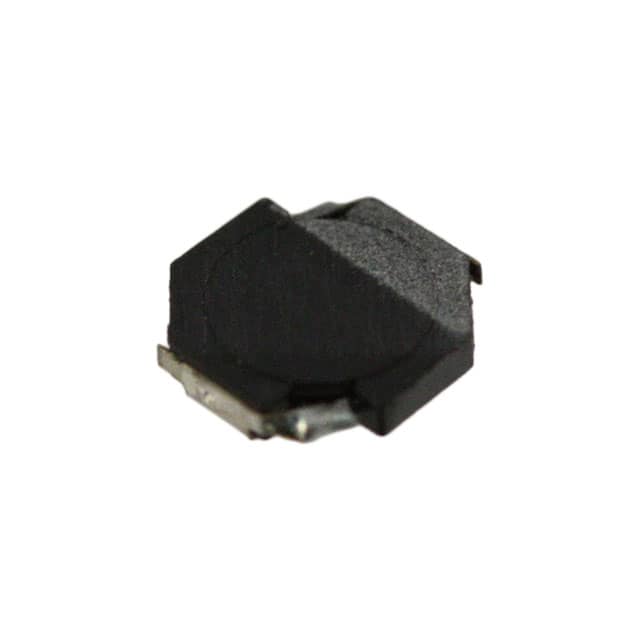

VLF4010ST-100MR80FIXED IND 10UH 800MA 300MOHM SMD |
2,234 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 800 mA | 800mA | Shielded | 300mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.169" L x 0.157" W (4.30mm x 4.00mm) | 0.039" (1.00mm) |
|
|
VLF4010ST-1R0N1R9FIXED IND 1UH 1.9A 60 MOHM SMD |
2,221 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 1.9 A | 2.1A | Shielded | 60mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.169" L x 0.157" W (4.30mm x 4.00mm) | 0.039" (1.00mm) |
|
|
VLF4010ST-3R3M1R2FIXED IND 3.3UH 1.2A 100MOHM SMD |
3,405 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.2 A | 1.2A | Shielded | 100mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.169" L x 0.157" W (4.30mm x 4.00mm) | 0.039" (1.00mm) |
|
|
VLF4010ST-4R7M1R0FIXED IND 4.7UH 1A 120 MOHM SMD |
1,363 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1 A | 1A | Shielded | 120mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.169" L x 0.157" W (4.30mm x 4.00mm) | 0.039" (1.00mm) |
|
|
VLF4010ST-6R8MR85FIXED IND 6.8UH 850MA 180MOHM SM |
3,601 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 850 mA | 850mA | Shielded | 180mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.169" L x 0.157" W (4.30mm x 4.00mm) | 0.039" (1.00mm) |
|
SRU8028-680YFIXED IND 68UH 850MA 317MOHM SMD |
4,915 |
|
Datasheet |
SRU8028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±30% | 850 mA | 800mA | Shielded | 317mOhm | 23 @ 2.52MHz | 9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.122" (3.10mm) |
|
SC3316F-101FIXED IND 100UH 1.3A 280MOHM SMD |
4,774 |
|
Datasheet |
SC3316F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 1.3 A | 1.2A | Unshielded | 280mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.205" (5.21mm) |
|
ETQ-P3W4R7WFNFIXED IND 4.7UH 5.7A 40.3MOHM SM |
4,126 |
|
Datasheet |
PCC-M0630W | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | Metal Composite | 4.7 µH | ±20% | 5.7 A | - | Shielded | 40.3mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
CDRH5D14HPNP-3R3NCFIXED IND 3.3UH 2.4A 53.7MOHM SM |
1,308 |
|
Datasheet |
CDRH5D14/HP | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 3.3 µH | ±30% | 2.4 A | 1.9A | Shielded | 53.7mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.240" L x 0.228" W (6.10mm x 5.80mm) | 0.059" (1.50mm) |
|

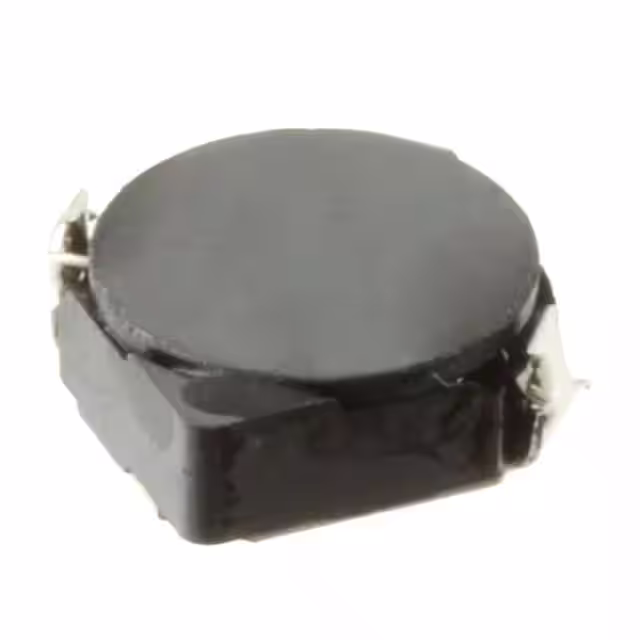

CDRH6D26NP-101NCFIXED IND 100UH 500MA 560MOHM SM |
1,163 |
|
Datasheet |
CDRH6D26 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 100 µH | ±30% | 500 mA | - | Shielded | 560mOhm Max | - | - | - | -40°C ~ 100°C | 10 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.110" (2.80mm) |
|
SRR0735A-150MFIXED IND 15UH 1.6A 105 MOHM SMD |
4,890 |
|
Datasheet |
SRR0735A | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.6 A | 1.52A | Shielded | 105mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.146" (3.70mm) |
|
|
SRR0735A-270MFIXED IND 27UH 1.1A 185 MOHM SMD |
3,961 |
|
Datasheet |
SRR0735A | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 1.1 A | 1.15A | Shielded | 185mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.146" (3.70mm) |
|
|
SRR0735A-560MFIXED IND 56UH 780MA 350MOHM SMD |
4,136 |
|
Datasheet |
SRR0735A | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 780 mA | 800mA | Shielded | 350mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.146" (3.70mm) |
